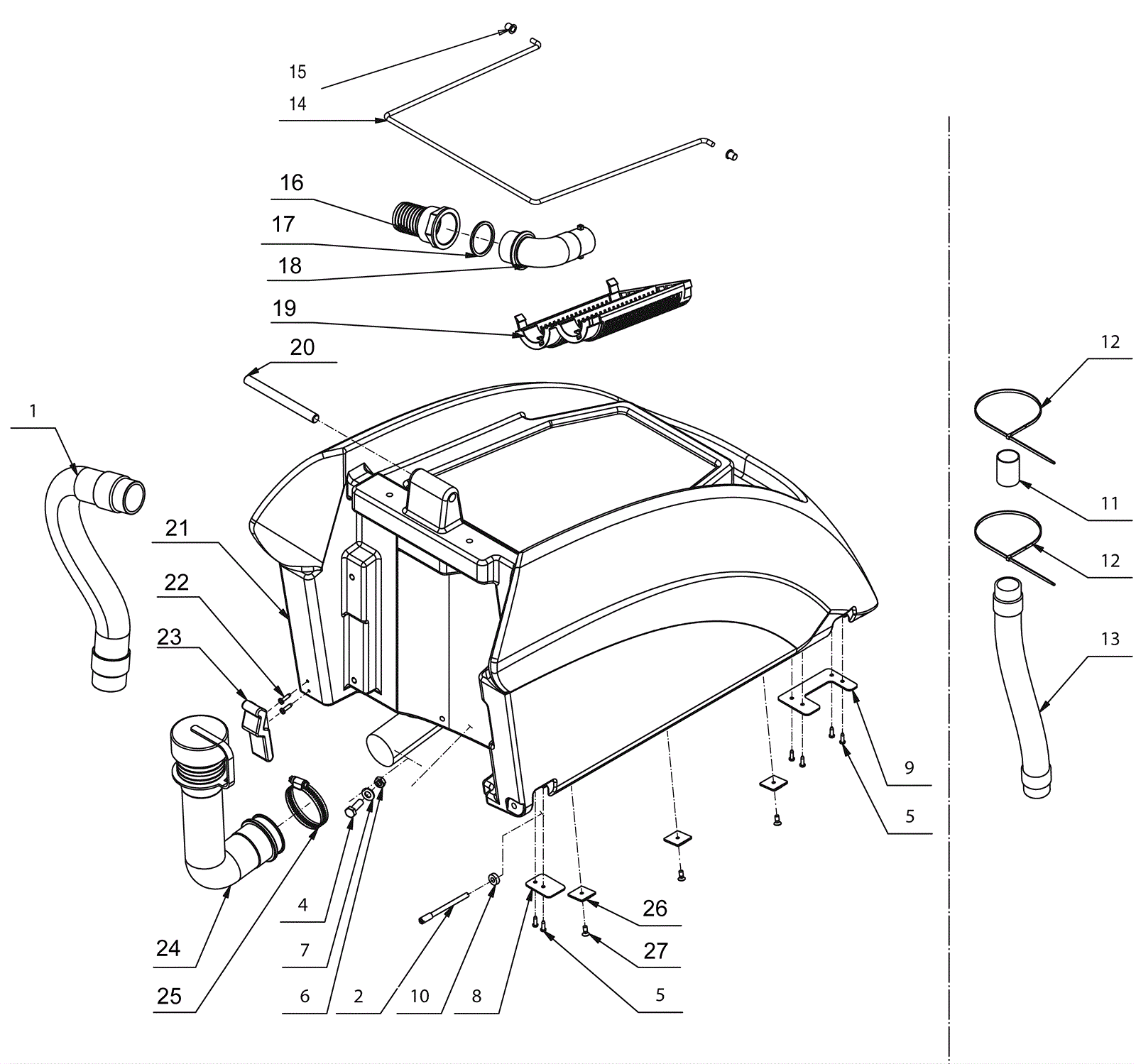

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-6193
|
Vacuum hose |
1 |
|
|
2 |
189-6285
|
Hinge pin |
1 |
|
|
4 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
1 |
|
|
5 |
999-1617
|
Screw M3.9 x 13mm pan head philliips self tapping SS |
6 |
|
|
6 |
206-5138
|
Nut (OBSOLETE) |
1 |
|
|
7 |
189-6295
|
Washer M9 x 1.5 flat zinc plated |
1 |
|
|
8 |
189-6296
|
Plate |
1 |
|
|
9 |
189-6297
|
Plate |
1 |
|
|
10 |
189-6298
|
Nylon spacer |
1 |
|
|
11 |
189-6299
|
Hose fitting |
1 |
|
|
12 |
189-6300
|
Clamp |
2 |
|
|
13 |
189-6193
|
Vacuum hose |
1 |
|
|
14 |
189-6301
|
Vacuum lid bale |
1 |
|
|
15 |
189-6302
|
Vacuum lid bale plug |
2 |
|
|
16 |
189-6287
|
Barbed fitting |
1 |
|
|
17 |
189-6292
|
Gasket |
1 |
|
|
18 |
189-6288
|
Elbow |
1 |
|
|
19 |
189-6289
|
Filter cage |
1 |
|
|
20 |
189-6294
|
Hinge pin |
1 |
|
|
21 |
189-6293
|
Recovery tank (red) |
1 |
|
|
23 |
189-6290
|
Latch and hook assembly |
1 |
|
|
24 |
189-7545
|
Drain hose |
1 |
|
|
25 |
189-6291
|
Hose clamp |
1 |
|
|
26 |
206-0567
|
Support plate (OBSOLETE) |
3 |
|
|
27 |
999-1274
|
Screw M5-.8 x 12mm flat head phillips stainless steel |
3 |
|
|
KIT 1 |
189-6286
|
Recovery tank assembly |
1 |
(includes 16-17) |
|
