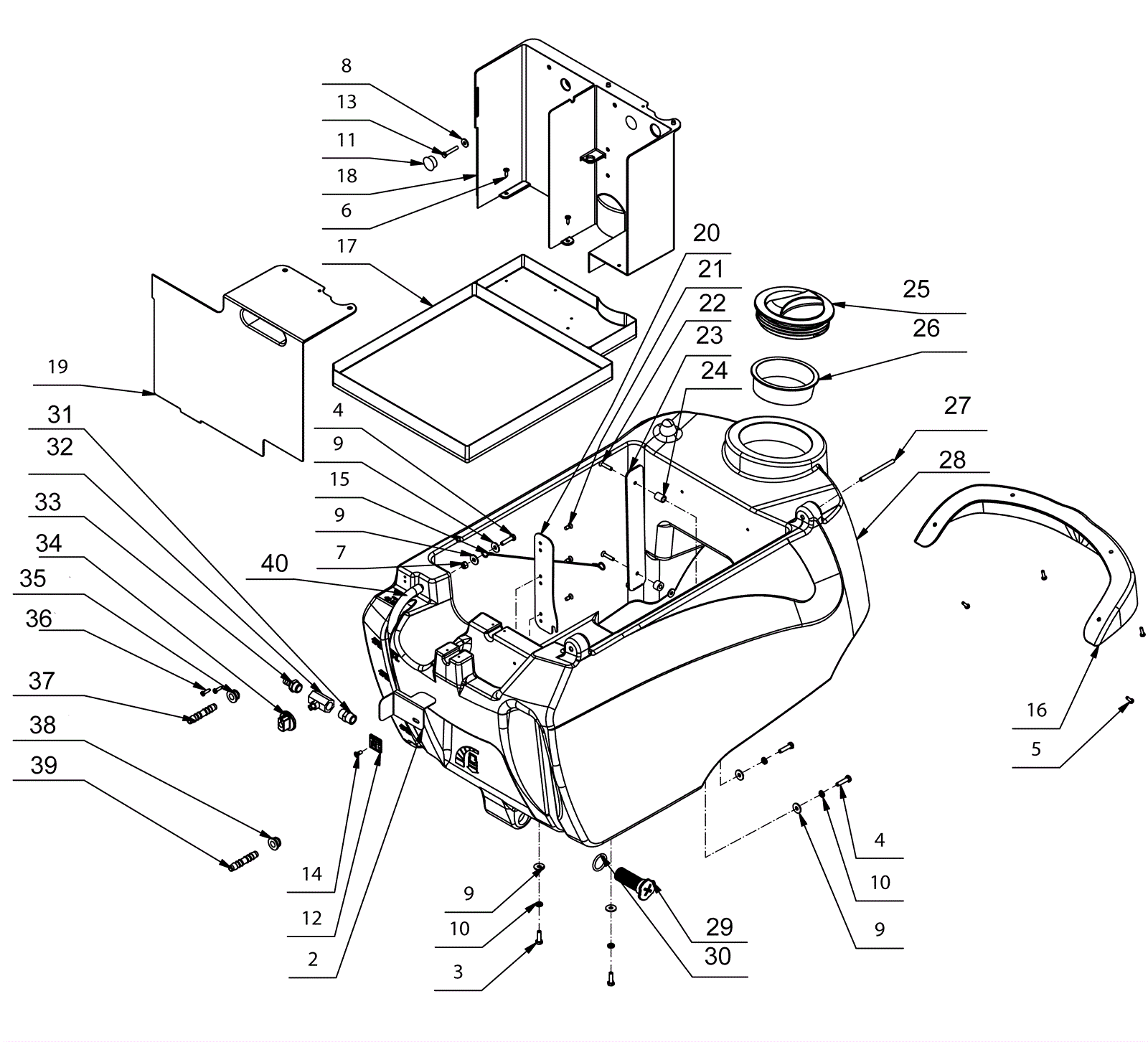

STEALTH ASD20BT Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
2 189-6277 Bracket $24.22 1 usually ships 1-5 days
3 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 2 usually ships 6-27 days
4 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 3 ships same day
5 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel $0.99 4 ships same day
6 189-6278 Screw M4.2-.7 x 16mm pan head self tapping zinc plated $12.84 5 usually ships 1-5 days
7 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
8 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. $4.58 2 ships same day
9 999-1261 Washer M6 flat stainless steel $0.99 6 ships same day
10 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 4 usually ships 6-27 days
11 189-6279 Bolt cover $51.79 2 usually ships 1-5 days
12 206-0567 Support plate (OBSOLETE) $5.91 1 usually ships 1-5 days
13 999-1616 Bolt M5-.8 x 30mm hex head stainless steel $1.25 2 usually ships 1-5 days
14 999-1274 Screw M5-.8 x 12mm flat head phillips stainless steel $0.99 1 ships same day
15 189-6280 Lanyard $20.48 1 usually ships 11-24 days
16 189-6281 Bezel $147.32 1 usually ships 1-5 days
17 189-6282 Battery tray $188.43 1 usually ships 1-5 days
18 189-6283 Plastic housing $58.33 1 usually ships 1-5 days
19 189-6284 Plastic housing cover $84.59 1 usually ships 1-5 days
20 189-6263 Foot pedal latch plate $26.10 1 usually ships 11-24 days
21 999-1274 Screw M5-.8 x 12mm flat head phillips stainless steel $0.99 3 ships same day
22 999-1615 Screw M5-.8 x 25mm flat head socket stainless steel $0.99 2 usually ships 1-5 days
23 189-6264 Guard plate $64.90 1 usually ships 11-24 days
24 189-6275 Spacer $23.73 1 usually ships 1-5 days
25 189-6266 Cap $29.79 1 usually ships 11-24 days
26 189-6267 Filter $11.86 1 usually ships 11-24 days
27 189-6272 Hinge pin (OBSOLETE) Call for price 1 usually ships 11-24 days
28 189-6271 Solution tank (gray) $807.49 1 usually ships 1-5 days
29 283-2285 WATER FILTER D=23 H=53 W/PLUG 3/4 inch $7.44 1 usually ships 6-27 days
30 189-6270 O-ring $15.59 1 usually ships 11-24 days
31 N/A Not available Call for price 1 usually ships 3-26 days
32 189-7634 3/8 double female ball valve $42.79 1 usually ships 11-24 days
33 189-6276 Barbed fitting $11.17 1 usually ships 11-24 days
34 189-6265 Knob $5.50 1 usually ships 11-24 days
35 189-6273 Grommet $14.85 2 usually ships 11-24 days
36 189-8727 Screw M4-.2 x 16mm pan head phillips sefl tapping ss $12.84 2 usually ships 11-24 days
37 189-6274 Barbed fitting $13.01 2 usually ships 11-24 days
40 189-6262 Reinforced hose $7.54 1 usually ships 1-5 days
N/S 162-0011 12V 105Ah wet battery (SNSR) $291.50 2 ships same day
