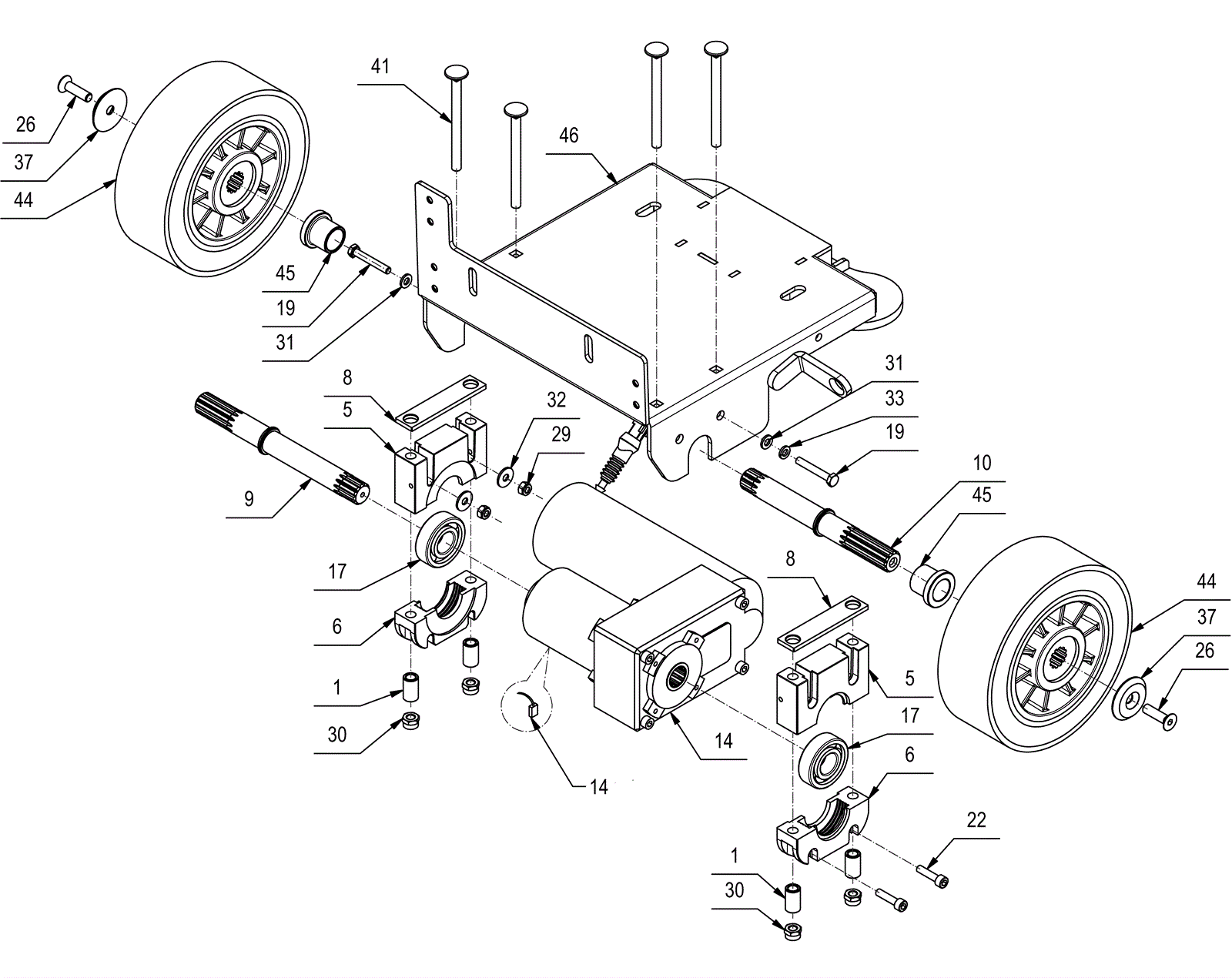

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-4688
|
Bushing |
4 |
|
|
5 |
189-4504
|
Bearing mount base |
2 |
|
|
6 |
189-4505
|
Bearing mount cap (OBSOLETE) |
2 |
|
|
8 |
189-4689
|
Shim plate |
2 |
|
|
9 |
189-4691
|
Right hand axle shaft |
1 |
|
|
10 |
189-4692
|
Left hand axle shaft |
1 |
|
|
14a |
189-4373
|
24V drive motor |
1 |
|
|
14b |
189-4687
|
Carbon brush |
2 |
|
|
17 |
189-8647
|
Bearing |
2 |
|
|
19 |
999-1147
|
Bolt M6-1 x 40mm hex head stainless steel |
4 |
|
|
22 |
999-1300
|
Screw M6-1 x 25mm socket head stainless steel |
2 |
|
|
26 |
189-4696
|
Screw M8 x 30mm |
2 |
|
|
29 |
189-5094
|
Nut M6 |
10 |
|
|
30 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
31 |
999-6714
|
Washer M6 x 12mm flat stainless steel |
10 |
|
|
32 |
189-4697
|
Washer M6 x 18mm flat |
2 |
|
|
37 |
189-4699
|
Bearing washer |
2 |
|
|
41 |
189-4690
|
Bolt M8 x 100mm carriage |
4 |
|
|
44 |
189-4700
|
Wheel |
2 |
|
|
45 |
189-4701
|
Spacer |
2 |
|
|
46 |
189-4702
|
Chassis |
1 |
|
|
