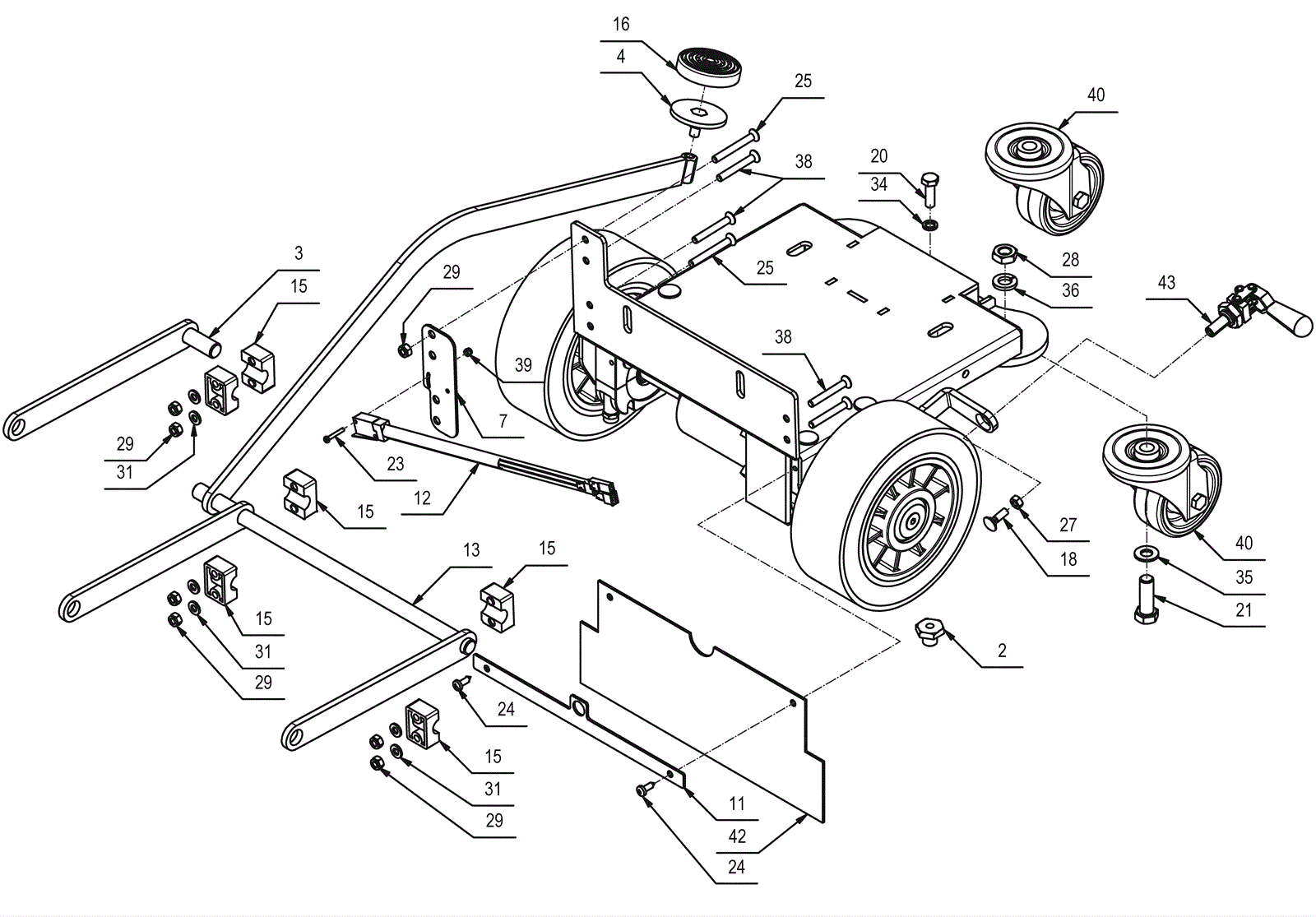

| # | Part | Description |
Req | Notes | Availability |
|---|
3 |
189-6246
|
Brush deck lift idler arm weldment |
1 |
|
|
4 |
189-6247
|
Foot pedal |
1 |
|
|
7 |
189-6255
|
Switch plate |
1 |
|
|
11 |
189-4694
|
Clamp plate |
1 |
|
|
12 |
189-6257
|
Microswitch |
1 |
|
|
13 |
189-6245
|
Brush deck lift arm weldment |
1 |
|
|
15 |
189-6241
|
Pivot block |
6 |
|
|
16 |
206-0545
|
Pedal cover (OBSOLETE) |
1 |
|
|
18 |
999-1614
|
Bolt M6-1 x 20mm carriage head stainless steel |
1 |
|
|
20 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
1 |
|
|
21 |
999-0504
|
Bolt M12-1.75 x 35mm hex hd stainless steel full thread |
2 |
|
|
23 |
999-1431
|
Screw M3-.5 x 20mm pan head zinc plated |
2 |
|
|
24 |
189-9042
|
Screw M4 x 16mm pan head phillips stainless steel |
2 |
|
|
25 |
999-1612
|
Screw M6-1 x 50mm flat head socket stainless steel |
2 |
|
|
27 |
189-9083
|
Nut M6 x 5 hex |
1 |
|
|
28 |
999-1377
|
Nut M12-1.75 hex jam |
2 |
|
|
29 |
189-5094
|
Nut M6 |
10 |
|
|
31 |
999-6714
|
Washer M6 x 12mm flat stainless steel |
10 |
|
|
34 |
189-9124
|
Washer M8 lock zinc |
1 |
|
|
35 |
999-9099
|
Washer M10 flat stainless steel |
2 |
|
|
36 |
999-1115
|
Washer M4 flat zinc plated |
2 |
|
|
38 |
999-1336
|
Screw M6-1 x 45mm socket head |
4 |
|
|
39 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
40 |
189-6242
|
Caster wheel |
2 |
|
|
42 |
189-6253
|
Splash guard |
1 |
|
|
43 |
189-6259
|
Parking brake |
1 |
|
|
