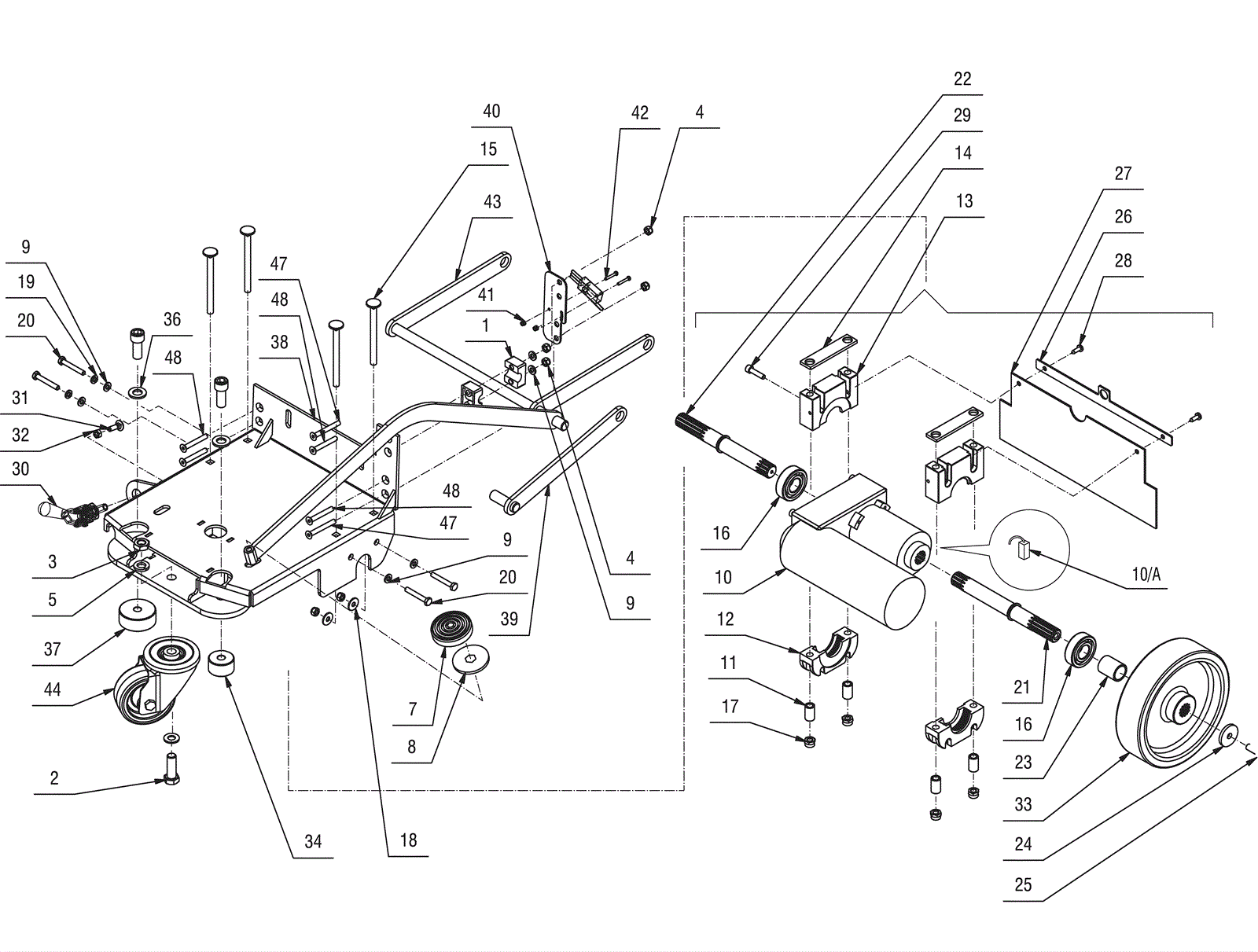

Main Frame and Transaxle Assembly - Before SN 214999999

#PartDescription ReqNotesAvailability
1 189-6241 Pivot block 6
2 999-0504 Bolt M12-1.75 x 35mm hex hd stainless steel full thread 1
3 999-1377 Nut M12-1.75 hex jam 1
4 189-5094 Nut M6 10
5 999-1115 Washer M4 flat zinc plated 1
7 206-0545 Pedal cover (OBSOLETE) 1
8 189-6247 Foot pedal 1
9 999-6714 Washer M6 x 12mm flat stainless steel 10
10a 189-4373 24V drive motor 1
10b 189-4687 Carbon brush 2
11 189-4688 Bushing 4
12 189-4505 Bearing mount cap (OBSOLETE) 2
13 189-4504 Bearing mount base 2
14 189-4689 Shim plate 2
15 189-4690 Bolt M8 x 100mm carriage 4
16 189-8647 Bearing 2
17 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
18 999-1261 Washer M6 flat stainless steel 2
20 999-1147 Bolt M6-1 x 40mm hex head stainless steel 4
21 189-4691 Right hand axle shaft 1
22 189-4692 Left hand axle shaft 1
23 189-4693 Spacer 2
24 250-1320 Washer 2
25 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
26 189-4694 Clamp plate 1
27 189-6253 Splash guard 1
28 189-9042 Screw M4 x 16mm pan head phillips stainless steel 2
29 999-1300 Screw M6-1 x 25mm socket head stainless steel 2
30 189-6259 Parking brake 1
31 999-1614 Bolt M6-1 x 20mm carriage head stainless steel 1
32 189-9083 Nut M6 x 5 hex 1
33 189-8756 Drive wheel 2
34 189-6248 Bumper 1
36 206-5291 Washer (OBSOLETE) 2
37 189-6249 Bumper 1
38 189-6257 Microswitch 1
39 189-6251 Main frame weldment 1
40 189-6246 Brush deck lift idler arm weldment 1
41 189-6255 Switch plate 1
42 999-1161 Nut M3-.5 hex nylock stainless steel 2
43 999-1431 Screw M3-.5 x 20mm pan head zinc plated 2
44 189-6245 Brush deck lift arm weldment 1
46 999-1613 Screw M12-1.75 x 30mm socket head stainless steel 2
47 999-1612 Screw M6-1 x 50mm flat head socket stainless steel 2
48 999-1336 Screw M6-1 x 45mm socket head 4
49 999-9099 Washer M10 flat stainless steel 1
50 189-6257 Microswitch 1
