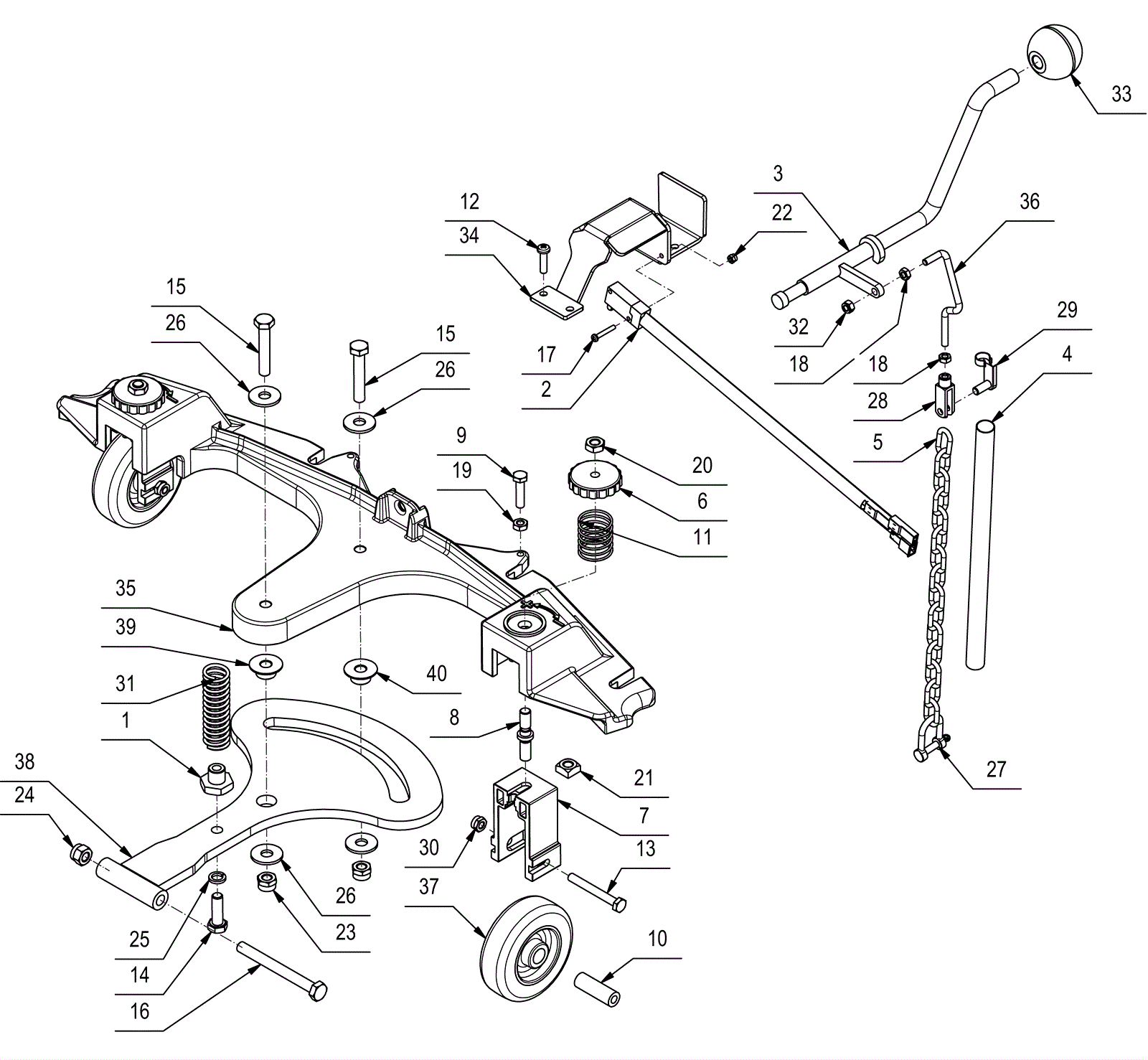

STEALTH ASD20BT Squeegee Yoke Assembly - After SN 215000000

#PartDescriptionPriceReqNotesAvailability
1 283-1091 BUSHING $9.08 1 usually ships 6-27 days
2 189-6224 Microswitch $74.38 1 usually ships 11-24 days
3 189-6236 Squeegee lever $147.32 1 usually ships 1-5 days
4 189-4667 Sheath $20.88 1 usually ships 11-24 days
5 189-4668 Squeegee lift chain $25.55 1 usually ships 11-24 days
6 189-6202 Knob $7.48 2 usually ships 11-24 days
7 189-4669 Squeegee wheel support $20.48 2 ships same day
8 189-4670 Threaded adjuster rod $9.35 2 usually ships 11-24 days
9 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 1 ships same day
10 189-4671 Bushing $9.43 2 usually ships 11-24 days
11 189-4390 Spring $5.50 2 usually ships 1-5 days
12 283-1584 SCREW 5X20 UNI7687 GALV $4.58 4 usually ships 6-27 days
13 250-1275 Screw M6 x 50mm $12.84 2 usually ships 1-5 days
14 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
15 189-4673 Bolt M8 x 45mm hex $12.84 2 usually ships 11-24 days
16 189-4674 Bolt M8 x 80mm hex $12.84 1 usually ships 11-24 days
17 999-1431 Screw M3-.5 x 20mm pan head zinc plated $0.99 2 usually ships 1-5 days
18 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
19 189-4675 Nut M6 x 4mm hex $12.84 1 usually ships 11-24 days
20 189-6214 Nut M8 $2.38 2 usually ships 11-24 days
21 189-4676 Nut M8 $3.19 2 usually ships 11-24 days
22 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
23 283-1737 NUT M8 AUTOBL. UNI 7474 INOX LOW $4.58 2 usually ships 6-27 days
24 189-4677 Nut M8 nylock $12.84 1 usually ships 11-24 days
25 189-9124 Washer M8 lock zinc $12.84 1 usually ships 1-5 days
26 189-4451 Washer M9 $12.84 4 usually ships 11-24 days
27 189-4678 Split pin $31.16 1 usually ships 11-24 days
28 189-4679 Fork $26.76 1 usually ships 11-24 days
29 189-4549 Clip $5.50 1 usually ships 11-24 days
30 189-1536 Nut with nylon ring $1.98 2 usually ships 5-9 days
31 189-9067 Spring $5.50 1 usually ships 1-5 days
32 189-8730 Nut M5 x 7mm hex nylock zinc $12.84 1 usually ships 11-24 days
33 189-6239 Knob $16.81 1 usually ships 1-5 days
34 189-4686 Cam guard $286.68 1 usually ships 11-24 days
35 189-4680 Squeegee carriage $203.81 1 usually ships 11-24 days
36 189-4681 Lift coupling $136.59 1 usually ships 11-24 days
37 189-4682 Squeegee support wheel $29.51 2 usually ships 11-24 days
38 189-4683 Pivot plate $375.98 1 usually ships 11-24 days
39 189-4684 Spacer $34.87 1 usually ships 11-24 days
40 189-4685 Spacer $24.33 1 usually ships 11-24 days
