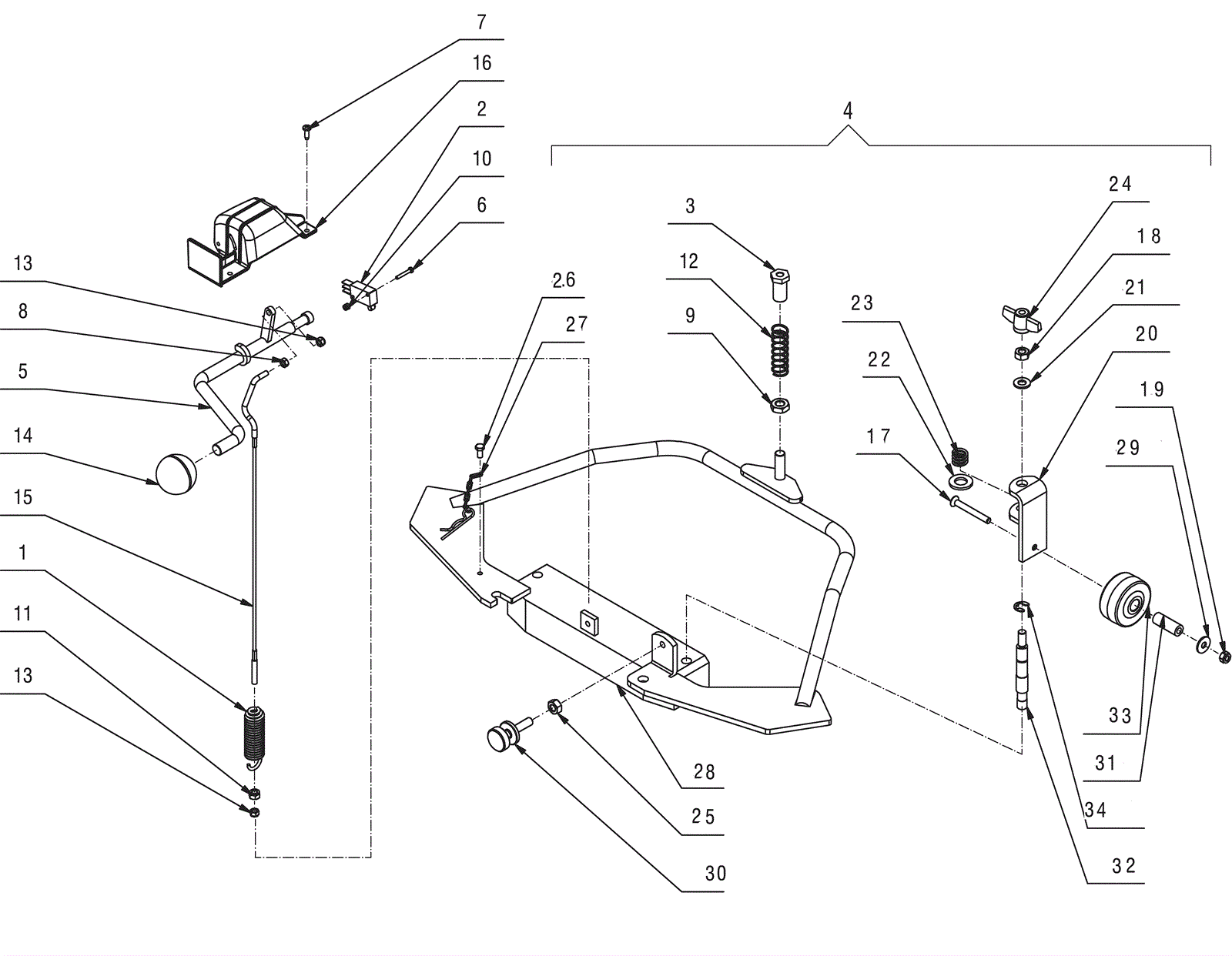

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-6223
|
Spring |
1 |
|
|
2 |
189-6224
|
Microswitch |
1 |
|
|
3 |
189-6225
|
Guide bushing |
1 |
|
|
4 |
189-6226
|
Yoke assembly |
1 |
|
|
5 |
189-6236
|
Squeegee lever |
1 |
|
|
6 |
999-1431
|
Screw M3-.5 x 20mm pan head zinc plated |
2 |
|
|
7 |
189-6237
|
Screw M4 x 15mm flat |
4 |
|
|
8 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
9 |
206-0846
|
Nut M10 (OBSOLETE) |
1 |
|
|
10 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
11 |
189-5094
|
Nut M6 |
1 |
|
|
12 |
189-6238
|
Spring |
1 |
|
|
13 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
2 |
|
|
14 |
189-6239
|
Knob |
1 |
|
|
15 |
189-4370
|
Squeegee lift cable |
1 |
|
|
16 |
189-6240
|
Bracket |
1 |
|
|
17 |
999-1612
|
Screw M6-1 x 50mm flat head socket stainless steel |
1 |
|
|
18 |
999-1424
|
Nut M8-1.25 hex stainless steel |
1 |
|
|
19 |
189-5094
|
Nut M6 |
1 |
|
|
20 |
189-6228
|
Squeegee wheel support weldment |
1 |
|
|
21 |
999-1267
|
Washer M8 flat zinc |
1 |
|
|
22 |
206-5291
|
Washer (OBSOLETE) |
1 |
|
|
23 |
189-6231
|
Compression spring |
1 |
|
|
24 |
189-2545
|
Knob |
1 |
|
|
25 |
999-1424
|
Nut M8-1.25 hex stainless steel |
1 |
|
|
26 |
999-1228
|
Screw M5-.8 x 10mm hex head stainless steel |
1 |
|
|
27 |
189-2540
|
Chain |
1 |
|
|
28 |
189-6235
|
Yoke |
1 |
|
|
29 |
999-1261
|
Washer M6 flat stainless steel |
1 |
|
|
30 |
206-0670
|
Adjuster knob (OBSOLETE) |
1 |
|
|
31 |
189-6232
|
Bushing |
1 |
|
|
32 |
189-6229
|
Threaded pin |
1 |
|
|
33 |
189-6230
|
Wheel |
1 |
|
|
34 |
189-6233
|
Clip |
1 |
|
|
