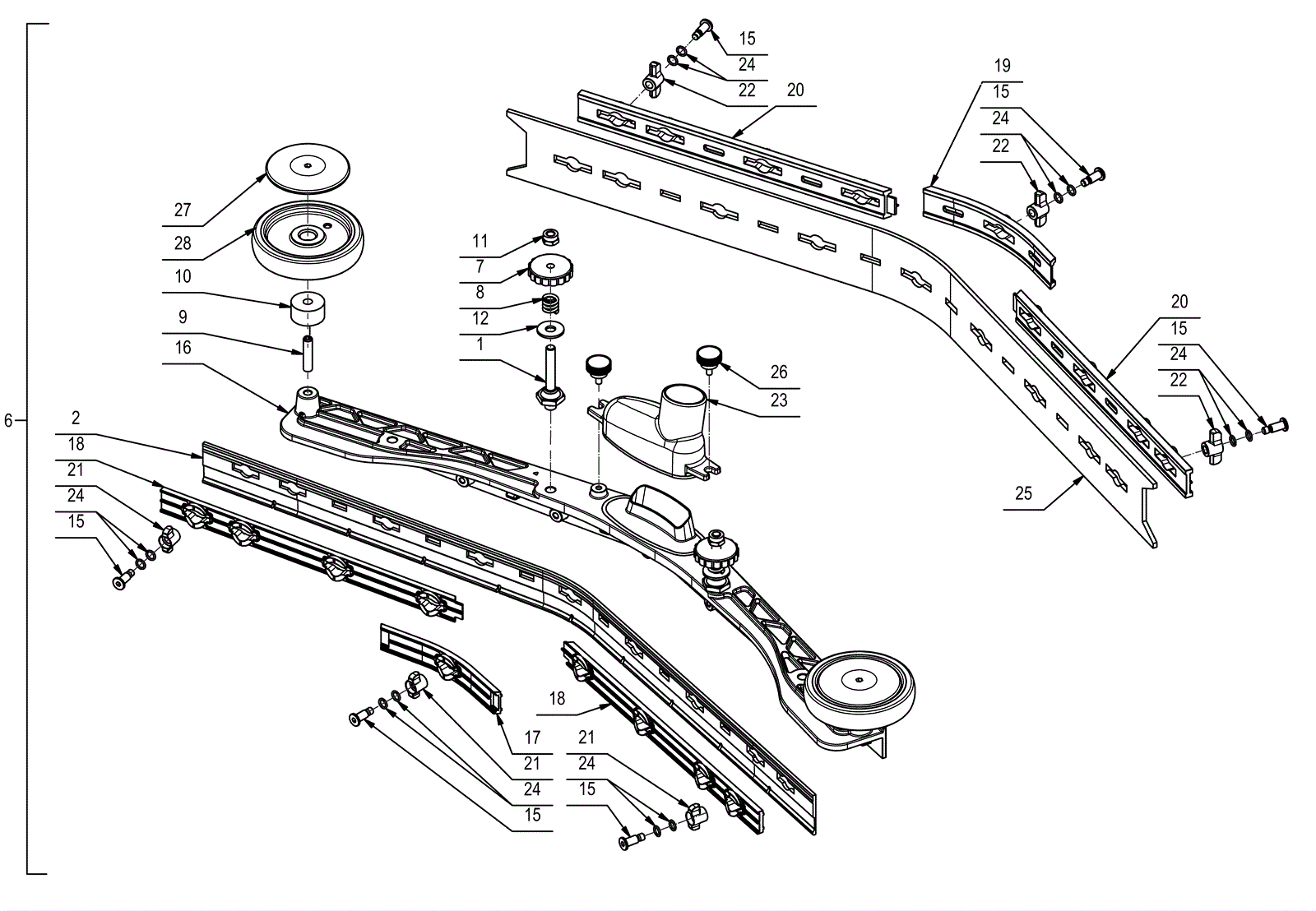

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-4662
|
Mounting stud |
2 |
|
|
2a |
189-3207
|
Squeegee blade kit 31 inch (OBSOLETE) |
1 |
|
|
2b |
189-4485
|
31 1/2 inch polyurethane squeegee blade kit |
1 |
|
|
2c |
189-4486
|
31 1/2 inch squeegee blade kit latex |
1 |
|
|
6 |
189-4663
|
31 1/2 inch squeegee assembly |
1 |
(includes 1-2 and 7-28) |
|
7 |
189-6202
|
Knob |
2 |
|
|
8 |
189-9181
|
Spring |
2 |
|
|
9 |
189-4664
|
Stud |
2 |
|
|
10 |
189-9428
|
Spacer |
2 |
|
|
12 |
189-4451
|
Washer M9 |
2 |
|
|
15 |
189-4476
|
Screw |
18 |
|
|
16 |
189-6392
|
Squeegee weldment |
1 |
|
|
17 |
189-7603
|
Front center blade clamp |
1 |
|
|
18 |
189-4488
|
Front squeegee blade clamp |
2 |
|
|
19 |
189-7604
|
Rear center blade clamp |
1 |
|
|
20 |
189-4489
|
Rear squeegee blade clamp |
2 |
|
|
21 |
189-4480
|
Wing nut knob |
9 |
|
|
22 |
189-7608
|
Wing nut |
9 |
|
|
23 |
189-4481
|
Squeegee shoe adapter |
1 |
|
|
24 |
189-4482
|
O-ring |
36 |
|
|
25a |
189-3207
|
Squeegee blade kit 31 inch (OBSOLETE) |
1 |
|
|
25b |
189-4485
|
31 1/2 inch polyurethane squeegee blade kit |
1 |
|
|
25c |
189-4486
|
31 1/2 inch squeegee blade kit latex |
1 |
|
|
26 |
189-4483
|
Thumb screw |
2 |
|
|
27 |
189-4460
|
Wheel cover |
2 |
|
|
28 |
189-4484
|
Bumper wheel |
2 |
|
|
