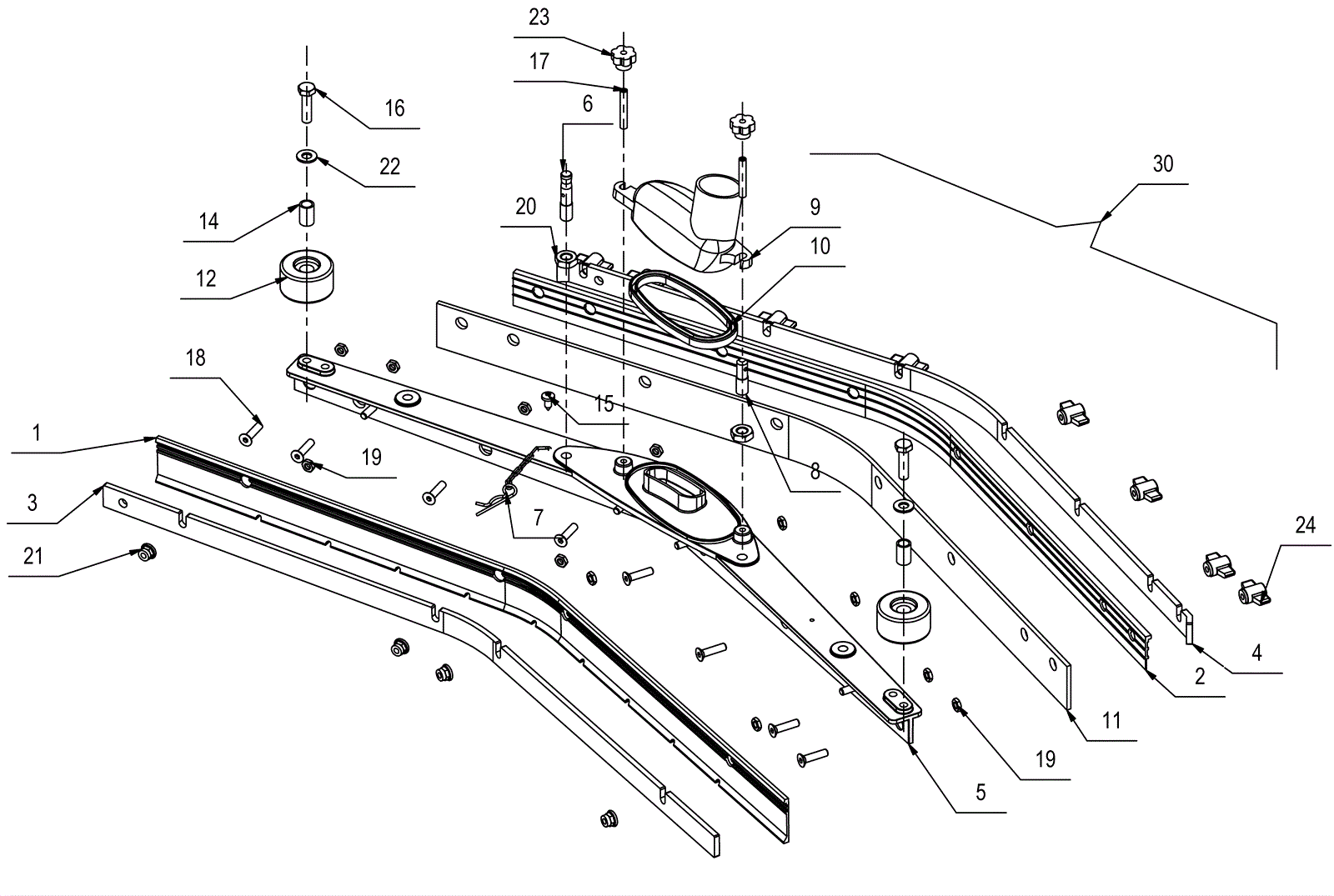

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-3098
|
Squeegee blade polyurethane front |
1 |
|
|
2 |
189-3100
|
Squeegee blade polyurethane rear |
1 |
|
|
3 |
189-6215
|
Front band clamp |
1 |
|
|
4 |
189-6216
|
Rear band clamp |
1 |
|
|
5 |
189-6217
|
Squeegee weldment |
1 |
|
|
6 |
206-0646
|
Bolt M10 x 46mm stud (OBSOLETE) |
1 |
|
|
7 |
189-2540
|
Chain |
1 |
|
|
8 |
206-0647
|
Bolt M10 x 33mm stud (OBSOLETE) |
1 |
|
|
9 |
189-7553
|
Adaptor |
1 |
|
|
10 |
N/A
|
Not available |
1 |
|
|
11 |
189-3099
|
Squeegee blade gum rubber central |
1 |
|
|
12 |
189-6218
|
Wheel |
2 |
|
|
13 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
|
14 |
189-6219
|
Bushing |
1 |
|
|
15 |
206-0656
|
Screw (OBSOLETE) |
2 |
|
|
16 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
2 |
|
|
17 |
189-8732
|
Screw M6 x 40mm hex set flat end stainless steel |
8 |
|
|
18 |
999-1610
|
Screw M6-1 x 25mm flat head socket stainless steel |
12 |
|
|
19 |
999-1611
|
Nut M6-1 hex jam stainless steel |
2 |
|
|
20 |
206-0846
|
Nut M10 (OBSOLETE) |
4 |
|
|
21 |
189-6222
|
Nut M6 |
2 |
|
|
22 |
999-1267
|
Washer M8 flat zinc |
2 |
|
|
23 |
189-8664
|
Knob |
8 |
|
|
24 |
189-6220
|
Knob |
1 |
|
|
30 |
189-6221
|
Squeegee assembly |
1 |
|
|
