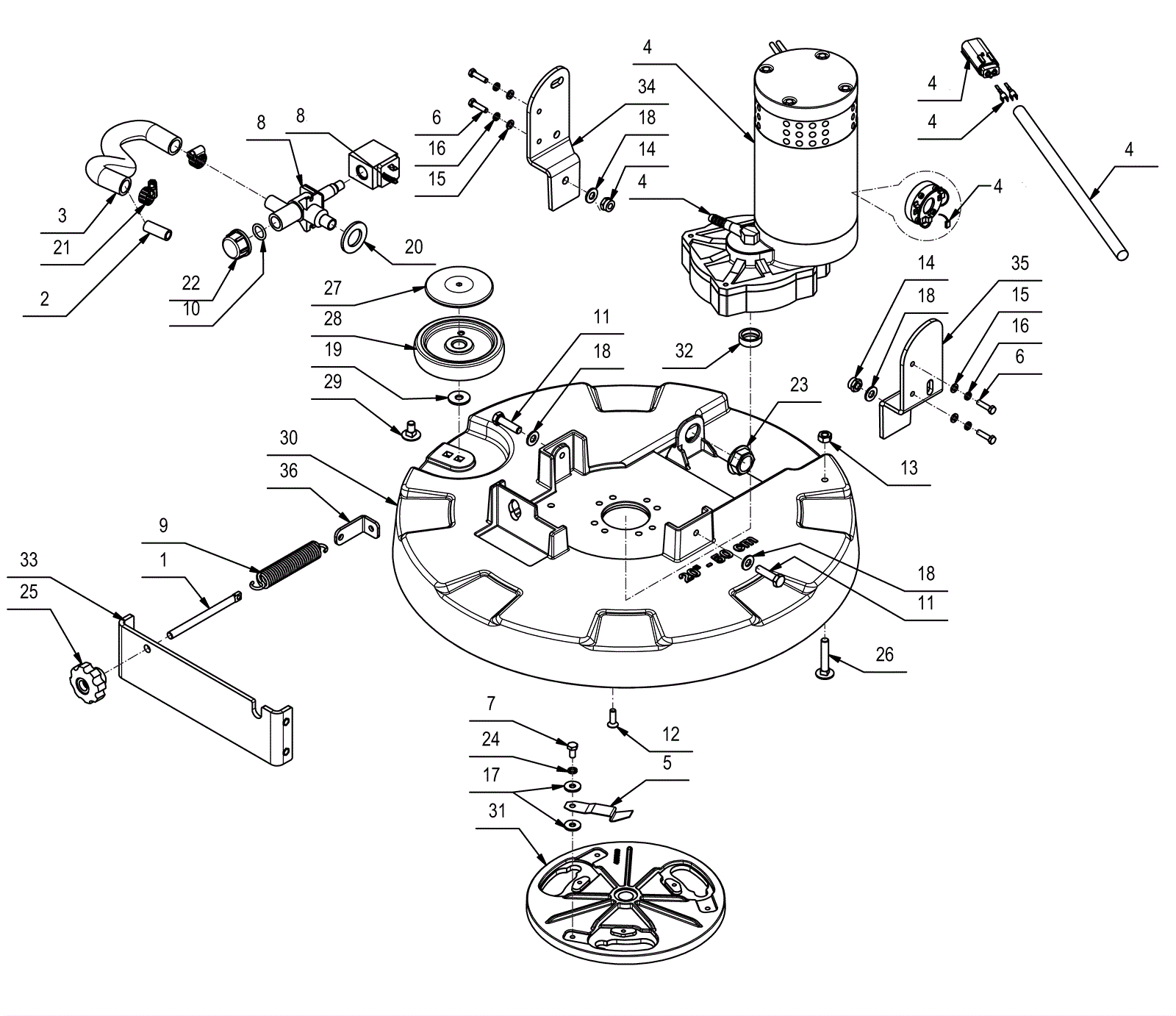

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-4647
|
Threaded rod |
1 |
|
|
2 |
189-4444
|
1 1/4 inch tube |
1 |
|
|
3 |
189-4649
|
Tubing |
1 |
|
|
4a |
189-4648
|
Cable sheath |
1 |
|
|
4b |
189-4445
|
Female connector |
1 |
|
|
4c |
189-4650
|
Molex pin |
2 |
|
|
4d |
189-4651
|
24V brush motor |
1 |
|
|
4e |
189-6207
|
Fitting |
1 |
|
|
4f |
189-9034
|
Carbon brush |
4 |
|
|
5 |
189-4652
|
Spring |
1 |
|
|
6 |
999-0498
|
Bolt M5-.8 x 20mm hex head full thread zinc |
4 |
|
|
7 |
189-4405
|
Screw |
1 |
|
|
8a |
189-7576
|
Solenoid valve |
1 |
|
|
8b |
189-7627
|
Solenoid valve body |
1 |
|
|
8c |
189-7626
|
Solenoid |
1 |
|
|
10 |
189-6380
|
O-ring |
1 |
|
|
11 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
2 |
|
|
12 |
999-1620
|
Screw M6-1 x 20mm flat head socket stainless steel |
4 |
|
|
13 |
999-1424
|
Nut M8-1.25 hex stainless steel |
1 |
|
|
14 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
15 |
999-9100
|
Washer M5 flat stainless steel |
4 |
|
|
16 |
189-9122
|
Lock washer |
4 |
|
|
17 |
189-4450
|
Washer |
2 |
|
|
18 |
999-1267
|
Washer M8 flat zinc |
4 |
|
|
19 |
189-6198
|
Flat washer |
1 |
|
|
20 |
189-4452
|
Washer |
1 |
|
|
21 |
189-6268
|
Hose clamp |
2 |
|
|
22 |
189-6379
|
Cap |
1 |
|
|
23 |
189-4454
|
Ring nut |
1 |
|
|
24 |
999-1117
|
Washer M6 split lock stainless steel |
1 |
|
|
25 |
189-4654
|
Ajustment knob |
1 |
|
|
26 |
189-4655
|
Bolt M8 x 45mm |
1 |
|
|
27 |
189-4460
|
Wheel cover |
1 |
|
|
28 |
189-4484
|
Bumper wheel |
1 |
|
|
29 |
189-4470
|
Screw M8 x 16mm |
1 |
|
|
30 |
189-4645
|
Brush base housing |
1 |
|
|
31 |
189-4656
|
Pad gimble |
1 |
|
|
32 |
189-4657
|
Spacer |
1 |
|
|
33 |
189-4658
|
Front plate |
1 |
|
|
34 |
189-4659
|
Right hand deck mounting plate |
1 |
|
|
35 |
189-4660
|
Left hand deck mounting plate |
1 |
|
|
36 |
189-4661
|
Plate |
1 |
|
|
