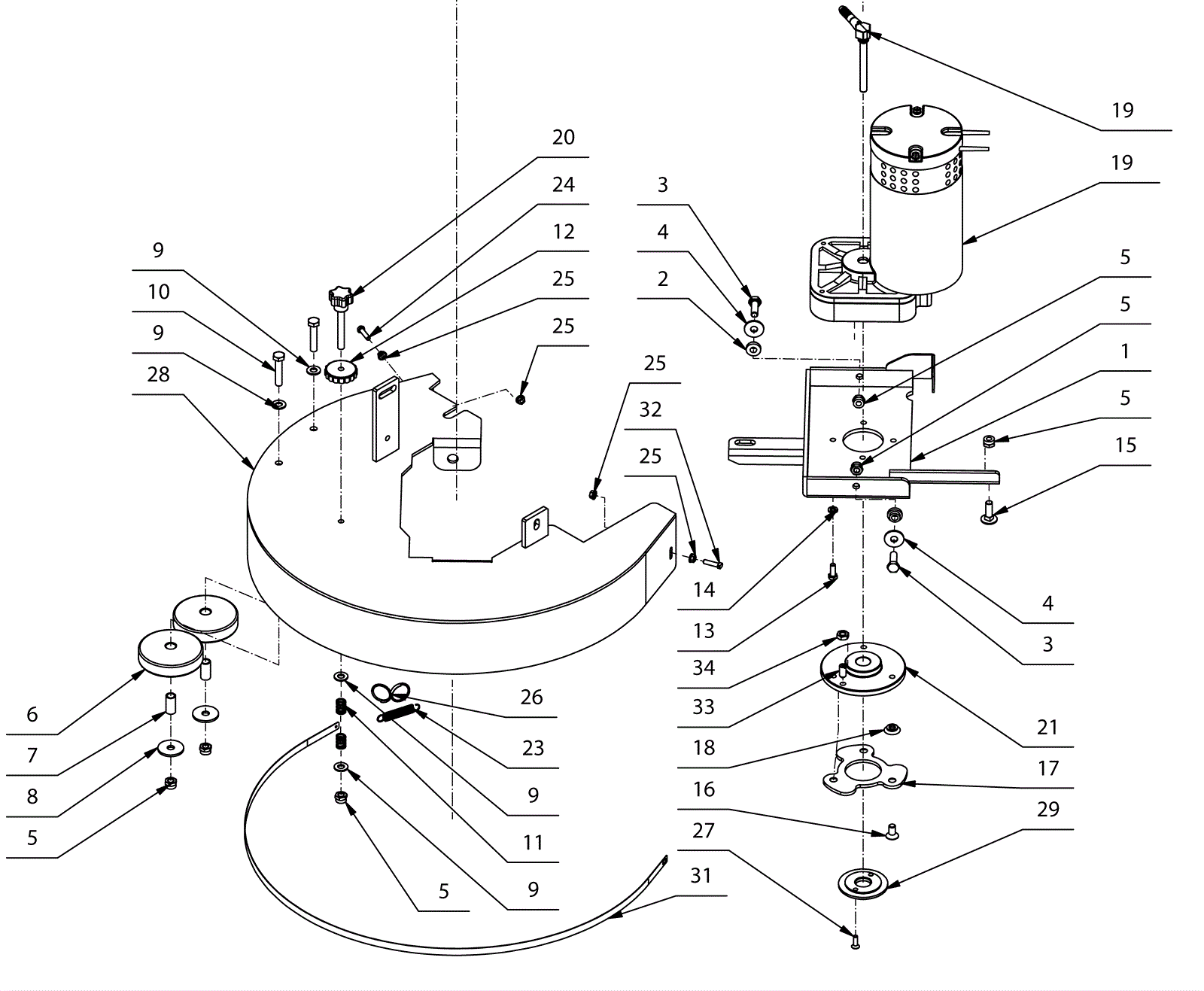

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-6199
|
Motor mounting plate |
1 |
|
|
2 |
189-6200
|
Bushing |
2 |
|
|
3 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
2 |
|
|
4 |
189-6198
|
Flat washer |
2 |
|
|
5 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
6 |
|
|
6 |
189-2542
|
Wheel |
2 |
|
|
7 |
189-2543
|
Bushing |
2 |
|
|
8 |
250-1320
|
Washer |
2 |
|
|
9 |
999-1267
|
Washer M8 flat zinc |
4 |
|
|
10 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
2 |
|
|
11 |
189-6201
|
Compression spring |
2 |
|
|
12 |
189-6202
|
Knob |
1 |
|
|
13 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
15 |
189-6204
|
Bolt M8 x 25mm carriage head zinc plated |
1 |
|
|
16 |
189-6205
|
Screw M8 x 16mm |
3 |
|
|
17 |
189-8645
|
Clutch plate |
1 |
|
|
18 |
189-8646
|
Spacer |
3 |
|
|
19a |
189-6206
|
24V brush motor |
1 |
|
|
19b |
189-6207
|
Fitting |
1 |
|
|
20 |
189-6208
|
Knob |
1 |
|
|
21a |
189-6209
|
Threaded brush flange |
1 |
(Threaded style) |
|
21b |
189-3239
|
Clutch coupling with key slot |
1 |
(Keyed style) |
|
21c |
189-3240
|
Square key for shaft |
1 |
(For use with 189-3239) |
|
23 |
189-7540
|
Spring |
1 |
|
|
24 |
999-0498
|
Bolt M5-.8 x 20mm hex head full thread zinc |
1 |
|
|
25 |
999-0740
|
Nut M5-.8 hex stainless steel |
4 |
|
|
26 |
189-7539
|
Ring |
1 |
|
|
27 |
189-1485
|
Screw |
2 |
|
|
28 |
189-6210
|
Brush deck |
1 |
|
|
29 |
189-6211
|
Retainer |
1 |
|
|
31 |
189-6212
|
Band clamp |
1 |
|
|
32 |
189-9031
|
Screw M5 x 20mm stainless steel |
1 |
|
|
33 |
189-6213
|
Dowel pin |
1 |
|
|
34 |
189-6214
|
Nut M8 |
1 |
|
|
