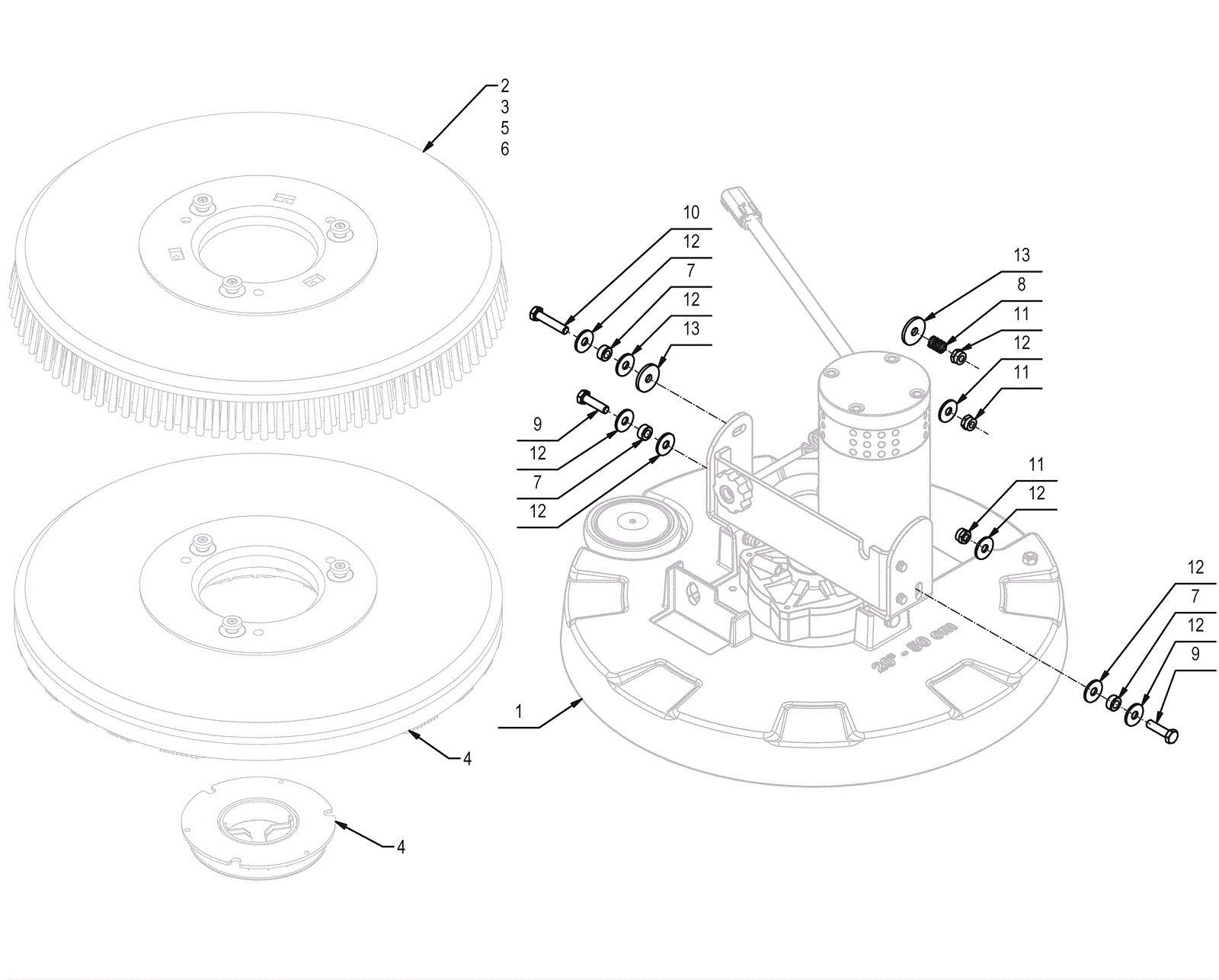

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-4645
|
Brush base housing |
1 |
|
|
2 |
189-7638
|
20 inch heavy grit stripping brush |
1 |
|
|
3 |
189-7640
|
20 inch general purpose brush |
1 |
|
|
4a |
189-7644
|
20 inch pad driver |
1 |
|
|
4b |
189-8613
|
Center-Lok |
1 |
|
|
5 |
189-7639
|
20 inch medium grit scrubbing brush |
1 |
|
|
6 |
189-7637
|
20 inch stripping brush |
1 |
|
|
7 |
189-6197
|
Bushing |
3 |
|
|
8 |
189-6201
|
Compression spring |
1 |
|
|
9 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
2 |
|
|
10 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
1 |
|
|
11 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
|
12 |
189-6198
|
Flat washer |
8 |
|
|
13 |
189-4646
|
Washer M8.5 |
2 |
|
|
