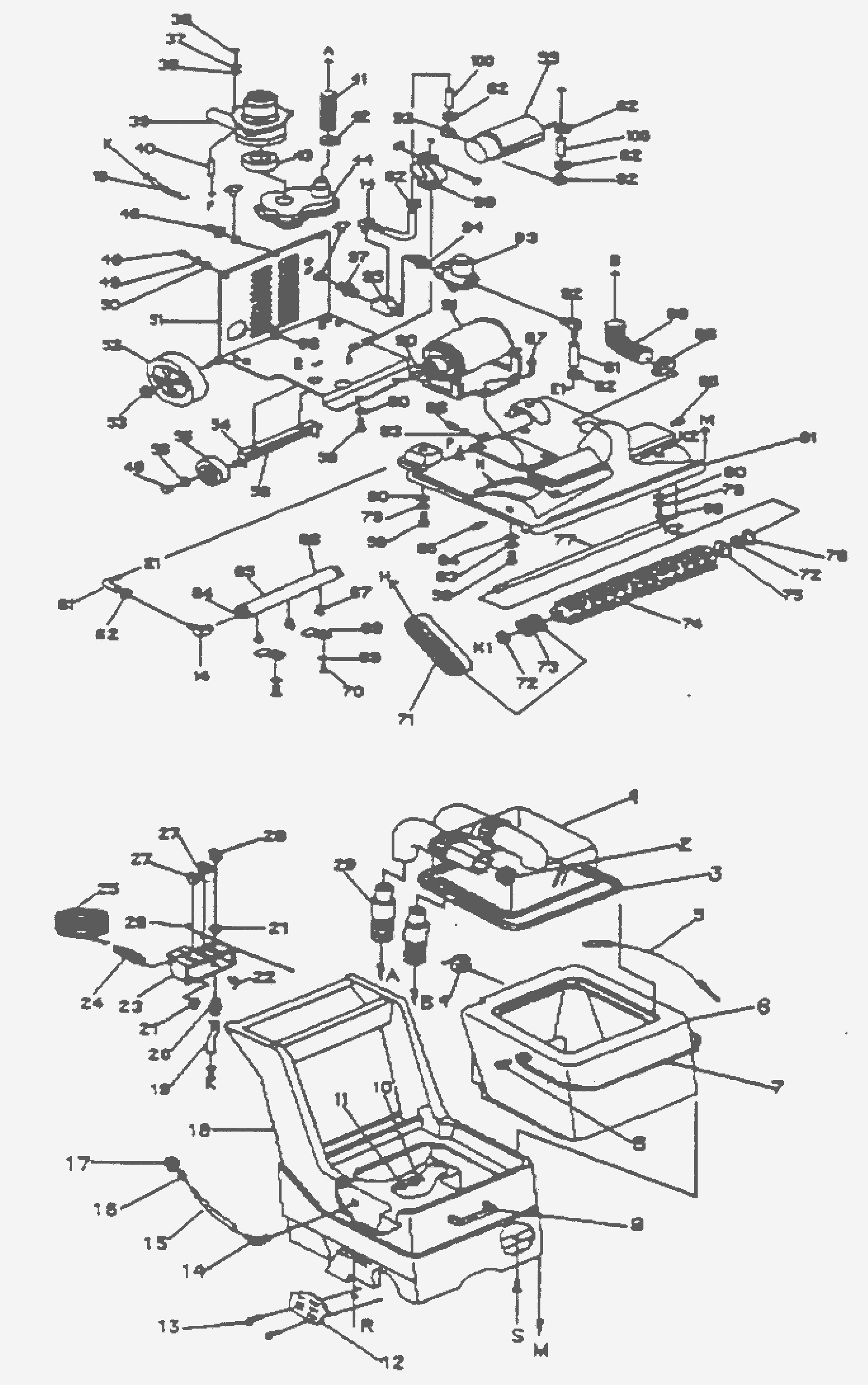

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-4298
|
Dome Assembly |
1 |
|
|
2 |
189-4260
|
Foam filter |
1 |
|
|
3 |
189-4299
|
Dome gasket |
1 |
|
|
4 |
189-4302
|
Drain plug |
1 |
|
|
5 |
189-4303
|
Cable Assembly |
1 |
|
|
6 |
N/A
|
Not available |
1 |
(Vacuum tank) |
|
7 |
N/A
|
Not available |
1 |
(Handle) |
|
8 |
N/A
|
Not available |
1 |
(Bolt) |
|
9 |
189-4311
|
Front handle mount 105-M6 |
1 |
|
|
10 |
N/A
|
Not available |
1 |
(Adapter) |
|
11 |
N/A
|
Not available |
1 |
(Washer) |
|
12 |
N/A
|
Not available |
1 |
(Belt guard) |
|
13 |
N/A
|
Not available |
1 |
(Srew) |
|
14 |
189-4323
|
3/8 barbed 1/4 MPT 90 degree elbow |
1 |
|
|
16 |
189-4306
|
3/8 x 1/4 male adapter |
1 |
|
|
17 |
189-4269
|
Solution tank strainer |
1 |
|
|
18 |
N/A
|
Not available |
1 |
(Solution tank) |
|
19 |
189-4314
|
Trailer cable 35in |
1 |
|
|
20 |
189-4315
|
Larger cord strain restraint |
1 |
|
|
21 |
189-4316
|
Pivot connector |
1 |
|
|
22 |
189-4317
|
Momentary switch |
1 |
|
|
23 |
189-4318
|
Switch housing |
1 |
|
|
24 |
189-7504
|
Cord restraint |
1 |
|
|
25 |
N/A
|
Not available |
1 |
(Power cord) |
|
26 |
189-1342
|
Screw 8 phillips oval head black oxide |
1 |
|
|
27 |
189-4327
|
2-way rocker switch |
1 |
|
|
28 |
189-4283
|
Switch rocker on/off |
1 |
|
|
29 |
189-4300
|
Black hose cuff |
1 |
|
|
36 |
N/A
|
Not available |
1 |
(Bolt) |
|
37 |
N/A
|
Not available |
1 |
(Washer) |
|
38 |
N/A
|
Not available |
1 |
(Washer) |
|
39 |
N/A
|
Not available |
1 |
(Vacuum motor) |
|
40 |
N/A
|
Not available |
1 |
(Spacer) |
|
41 |
N/A
|
Not available |
1 |
(Vacuum hose) |
|
42 |
189-4330
|
Large hose clamp # 28 |
1 |
|
|
43 |
189-4266
|
Vacuum motor gasket |
1 |
|
|
44 |
189-4333
|
Tall vacuum motor manifold |
1 |
|
|
46 |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
|
47 |
N/A
|
Not available |
1 |
(Washer) |
|
48 |
N/A
|
Not available |
1 |
(Bolt) |
|
49 |
N/A
|
Not available |
1 |
(Washer) |
|
50 |
N/A
|
Not available |
1 |
(Washer) |
|
51 |
N/A
|
Not available |
1 |
(Motor plate) |
|
52 |
189-4342
|
8 x 1-3/4 x 1/2 inch (grey) wheel |
1 |
|
|
53 |
189-4341
|
Axle caps |
1 |
|
|
54 |
N/A
|
Not available |
1 |
(Bracket) |
|
55 |
N/A
|
Not available |
1 |
(Wheel guide) |
|
56 |
N/A
|
Not available |
1 |
(Washer) |
|
58 |
N/A
|
Not available |
1 |
(Dolly axle) |
|
59 |
N/A
|
Not available |
1 |
(Bolt) |
|
62 |
189-4290
|
2 1/4 inch hose clamp stainless steel |
1 |
|
|
64 |
N/A
|
Not available |
1 |
(Bushing) |
|
65 |
N/A
|
Not available |
1 |
(Manifold) |
|
66 |
189-4354
|
3/8 hex head plug |
1 |
|
|
67 |
189-4356
|
9503 VEE jet noz. brass |
1 |
|
|
68 |
189-4357
|
1/2 inch pipe clamp |
1 |
|
|
70 |
189-4358
|
Bolt 10-24 x 3/8 pan head stainless steel |
1 |
|
|
71 |
N/A
|
Not available |
1 |
(Bolt) |
|
73 |
N/A
|
Not available |
1 |
(Brush pulley) |
|
74 |
N/A
|
Not available |
1 |
(Cylinder brush) |
|
75 |
N/A
|
Not available |
1 |
(Bearing block) |
|
76 |
N/A
|
Not available |
1 |
(Retainer ring) |
|
77 |
N/A
|
Not available |
1 |
(Brush shaft) |
|
81 |
N/A
|
Not available |
1 |
(Head) |
|
83 |
N/A
|
Not available |
1 |
(Washer) |
|
85 |
N/A
|
Not available |
1 |
(Screw) |
|
86 |
N/A
|
Not available |
1 |
(Bolt) |
|
87 |
N/A
|
Not available |
1 |
(Bolt) |
|
89 |
189-4346
|
1-1/2 x 29-1/2 inch black vacuum hose |
1 |
|
|
90 |
N/A
|
Not available |
1 |
(Motor pulley)
(Motor pulley) |
|
91 |
N/A
|
Not available |
1 |
(Motor) |
|
92 |
189-4308
|
3/8in x 3/8in MPT nylon 90 degree elbow |
1 |
|
|
93 |
N/A
|
Not available |
1 |
(Solenoid valve) |
|
94 |
189-4345
|
3/8 x 1/4 Red nipple |
1 |
|
|
95 |
189-4338
|
1/4 Barstock tee for dual jet |
1 |
|
|
96 |
189-4332
|
Nut 1/4-20 x 7/8 rod |
1 |
|
|
97 |
189-4337
|
1/4 Hex nipple |
1 |
|
|
98 |
189-4325
|
Large pump clamp |
1 |
|
|
99 |
189-4322
|
50 PSI pump |
1 |
|
|
100 |
N/A
|
Not available |
1 |
(Solution hose) |
|
