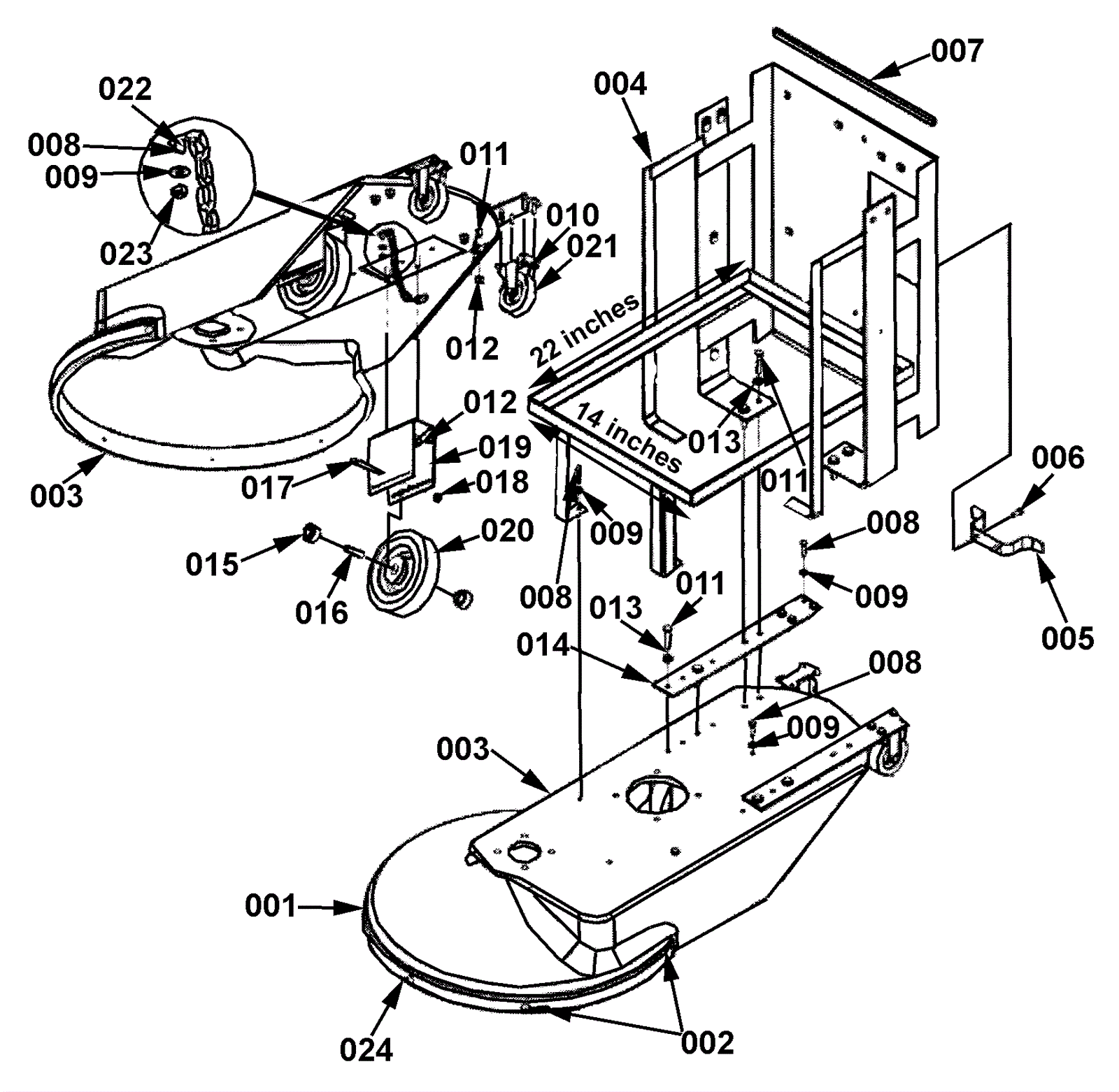

XT3-21 Deck and Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-8231 Bumper guard (red) (sold by the foot) (OBSOLETE) $4.29 5ft usually ships 11-24 days
002 189-8232 Rivet $2.18 5 usually ships 1-5 days
003 189-8202 Duracoat deck 21 inch $762.76 1 usually ships 1-5 days
004 189-8234 Full mount 21 in $411.98 1 usually ships 1-5 days
005 189-8235 Charger cord wrap $35.26 1 usually ships 1-5 days
006 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
007 189-8236 Edge trim (sold by the ft) $2.97 2 ft usually ships 1-5 days
008 999-0661 Bolt 1/2-20 x 1 18-8 hex head stainless steel $3.96 11 ships same day
009 999-0016 Washer 1/4 flat plain finish $0.99 12 ships same day
010 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 10 ships same day
011 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 8 ships same day
012 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 8 ships same day
013 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 8 ships same day
014 189-8237 Handle to base mount $25.72 2 usually ships 1-5 days
015 189-8998 Sealed ball bearing for wheel $6.38 4 usually ships 11-24 days
016 N/A Not available Call for price 2 Bushing usually ships 3-26 days
017 999-0353 Bolt 5/16-18 x 2 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
018 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
019 189-8225 Wheel bracket $34.46 2 usually ships 1-5 days
020 164-1389 6 inch caster wheel with bracket (Vac-Trac) (OBSOLETE) $543.86 2 usually ships 3-26 days
021 189-8240 3 in gray caster wheel $41.25 2 usually ships 11-24 days
022 189-8241 Chain (sold by the ft) $5.72 1 ft usually ships 1-5 days
023 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 1 ships same day
024 189-8242 3/8 hammer rivet $5.50 1 usually ships 1-5 days
