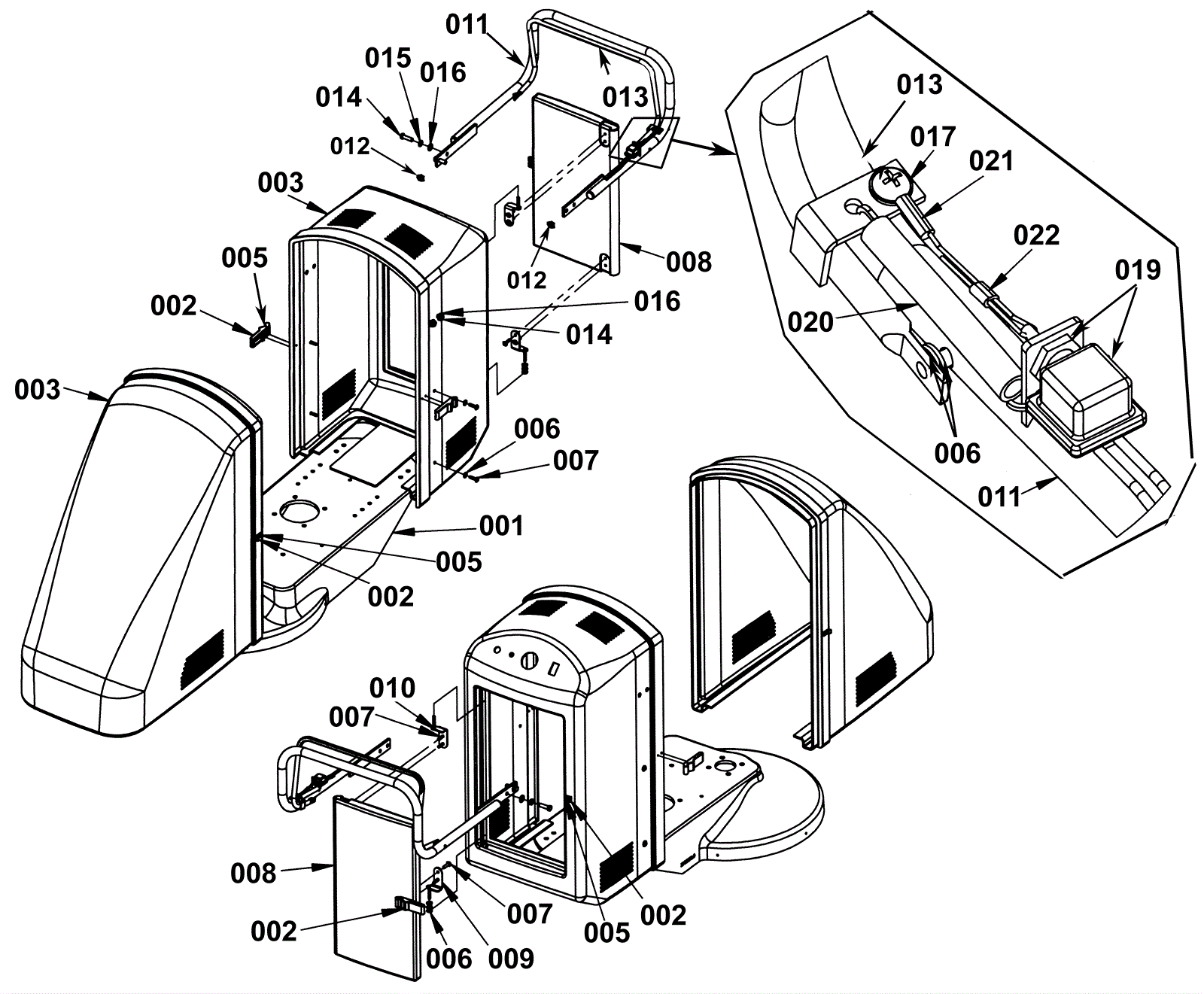

XT3-21 Cover and Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001a 189-8202 Duracoat deck 21 inch $762.76 1 XT3-21 usually ships 1-5 days
001b 189-8568 Aluminum deck 27 inch $593.23 1 XT3-27 usually ships 1-5 days
002 189-6290 Latch and hook assembly $38.36 3 ships same day
003a 189-8239 Rotomold shroud $420.06 1 XT3-21 usually ships 1-5 days
003b 189-8574 Rotomolded shroud $420.04 1 XT3-27 usually ships 1-5 days
004 189-6290 Latch and hook assembly $38.36 3 ships same day
005 189-8253 Rivet 5/32 inch load spreading $2.38 12 usually ships 1-5 days
006 999-0016 Washer 1/4 flat plain finish $0.99 11 ships same day
007 189-8219 Screw 10-32 x 1 pan head phillips $2.18 8 usually ships 1-5 days
008 189-8573 Access door $37.87 1 usually ships 1-5 days
009 189-8245 Weldment hinge (Right standing at drivers position) $25.30 1 usually ships 1-5 days
010 189-8246 Hinge weldment (Left standing in operators position) $25.30 1 usually ships 1-5 days
011 189-8247 Main handle $140.91 1 usually ships 1-5 days
012 189-8248 Black tubing cap $2.18 2 usually ships 1-5 days
013 189-8249 Safety shutoff handle $267.43 1 usually ships 11-24 days
014 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
015 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
016 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
017 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 1 ships same day
018 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 1 ships same day
019 189-9012 Red kill switch $55.46 1 usually ships 11-24 days
020 189-8210 Spring $8.14 1 usually ships 1-5 days
021 189-8222 Lanyard for red kill switch (OBSOLETE) $6.35 1 usually ships 11-24 days
022 189-8223 Aluminum sleeve $2.97 1 usually ships 1-5 days
