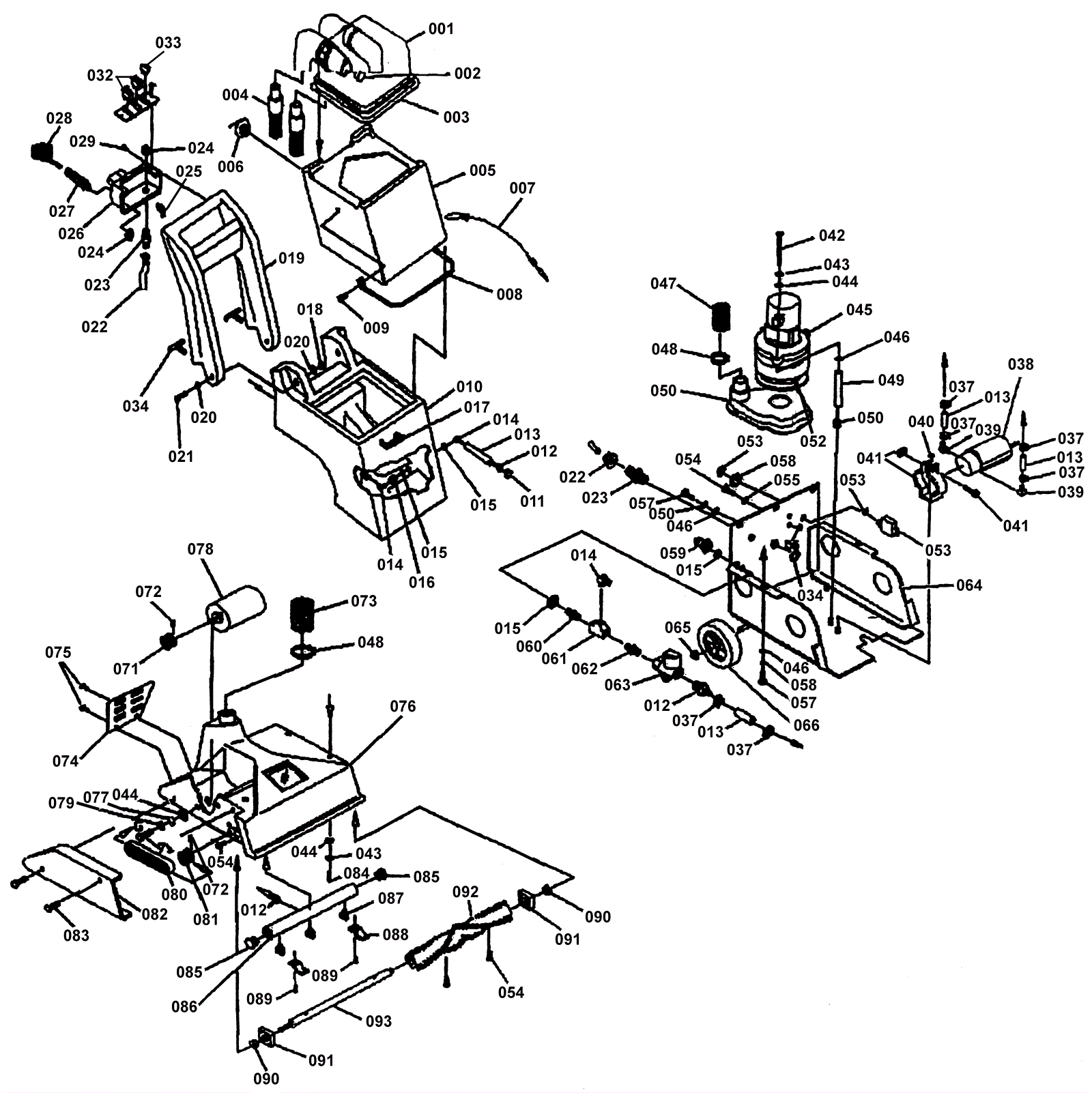

SC5EX Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-4298 Dome Assembly $112.79 usually ships 1-5 days
002 189-4260 Foam filter $2.72 usually ships 1-5 days
003 189-4299 Dome gasket $11.05 usually ships 1-5 days
004 189-4300 Black hose cuff $5.84 usually ships 1-5 days
005 189-4301 Vacuum tank $115.95 usually ships 1-5 days
006 189-4302 Drain plug $34.35 usually ships 1-5 days
007 189-4303 Cable Assembly $32.12 usually ships 11-24 days
008 189-4304 Vacuum tank handle $41.69 usually ships 1-5 days
009 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 ships same day
010 189-4305 Solution tank $509.10 usually ships 1-5 days
011 189-4269 Solution tank strainer $15.27 usually ships 1-5 days
012 189-4306 3/8 x 1/4 male adapter $2.57 usually ships 1-5 days
014 189-4308 3/8in x 3/8in MPT nylon 90 degree elbow $12.50 usually ships 1-5 days
015 189-4309 Washer 9/16 flat stainless steel Call for price usually ships 1-5 days
016 189-4310 1/4ft coupling Call for price usually ships 1-5 days
017 189-4311 Front handle mount 105-M6 $36.83 usually ships 1-5 days
018 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 ships same day
019 189-4313 Folding pull handle $101.92 usually ships 1-5 days
020 999-0016 Washer 1/4 flat plain finish $0.99 ships same day
021 999-0921 Bolt 3/8-16 x 3 1/2 hex head grade 8 plain finish $1.47 usually ships 1-5 days
022 189-4314 Trailer cable 35in $6.32 usually ships 1-5 days
023 189-4315 Larger cord strain restraint $8.77 usually ships 1-5 days
024 189-4316 Pivot connector $16.93 usually ships 11-24 days
025 189-4317 Momentary switch $22.93 usually ships 1-5 days
026 189-4318 Switch housing $783.97 usually ships 1-5 days
027 189-7504 Cord restraint $5.00 usually ships 1-5 days
028 189-4319 Power cord 14/3 30ft (OBSOLETE) $66.13 usually ships 11-24 days
029 189-4320 Bolt 8-3/4 phillips oval head Call for price usually ships 1-5 days
032 189-4327 2-way rocker switch $17.18 usually ships 1-5 days
033 189-4283 Switch rocker on/off $7.99 usually ships 8-21 days
034 189-4321 T-bolt for handle $21.22 usually ships 1-5 days
037 189-4290 2 1/4 inch hose clamp stainless steel $5.00 usually ships 1-5 days
038 189-4322 50 PSI pump $289.85 usually ships 1-5 days
039 189-4323 3/8 barbed 1/4 MPT 90 degree elbow $28.27 usually ships 1-5 days
041 189-4325 Large pump clamp $3.90 usually ships 1-5 days
043 999-0060 Washer 1/4 split lock plain finish $0.99 ships same day
044 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 ships same day
045a 189-4328 Vacuum motor (OBSOLETE) $240.47 usually ships 11-24 days
045b 991-1240 120V 2 stage vacuum motor dual ball tangential $127.87 ships same day
046 999-0016 Washer 1/4 flat plain finish $0.99 ships same day
047 189-4329 1-1/2in x 24 in vacuum hose $13.14 usually ships 1-5 days
048 189-4330 Large hose clamp # 28 $4.00 usually ships 1-5 days
049 189-4331 Spacer Call for price usually ships 1-5 days
050 189-4332 Nut 1/4-20 x 7/8 rod Call for price usually ships 1-5 days
051 189-4333 Tall vacuum motor manifold $27.91 usually ships 1-5 days
052 189-4266 Vacuum motor gasket $13.62 usually ships 1-5 days
053 189-4334 Reset switch $25.77 usually ships 1-5 days
054 999-0697 Screw 8-32 x 3/4 pan head phillips stainless steel $0.99 ships same day
056 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 ships same day
057 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 ships same day
058 999-0060 Washer 1/4 split lock plain finish $0.99 ships same day
060 189-4337 1/4 Hex nipple $3.42 usually ships 10-27 days
061 189-4338 1/4 Barstock tee for dual jet Call for price usually ships 1-5 days
062 189-4345 3/8 x 1/4 Red nipple $48.40 usually ships 1-5 days
063 189-4339 Solenoid valve $68.37 usually ships 1-5 days
064 189-4340 Motor plate $5.83 usually ships 1-5 days
065 189-4341 Axle caps $4.64 usually ships 1-5 days
066 189-4342 8 x 1-3/4 x 1/2 inch (grey) wheel $34.35 usually ships 1-5 days
070 189-4343 Small brush motor $178.21 usually ships 1-5 days
071 189-4344 Motor pulley $19.90 usually ships 1-5 days
072 999-0149 Screw 8-32 x 3/16 cup point socket set alloy plain finish $0.99 ships same day
073 189-4346 1-1/2 x 29-1/2 inch black vacuum hose $5.00 usually ships 1-5 days
074 189-4347 Motor cover $126.87 usually ships 1-5 days
075 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 ships same day
076 189-4348 Head casting $364.80 usually ships 1-5 days
077 999-0006 Washer 3/16 flat zinc plated $0.99 ships same day
078 999-0053 Washer #10 split lock plain finish $0.99 ships same day
080 189-4350 Belt $37.10 usually ships 1-5 days
081 189-4351 Brush pulley $25.77 usually ships 1-5 days
082 189-4352 Belt cover $16.07 usually ships 1-5 days
083 189-4353 Screw 8-32 x 1-3/4 Call for price usually ships 1-5 days
084 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 ships same day
085 189-4354 3/8 hex head plug $544.60 usually ships 1-5 days
086 189-4355 Jet manifold $126.05 usually ships 1-5 days
087 189-4356 9503 VEE jet noz. brass $17.10 usually ships 1-5 days
088 189-4357 1/2 inch pipe clamp $149.40 usually ships 1-5 days
089 189-4358 Bolt 10-24 x 3/8 pan head stainless steel Call for price usually ships 1-5 days
090 189-4359 Bearing $24.93 usually ships 1-5 days
091 189-4360 Bearing block $25.77 usually ships 1-5 days
092 189-4361 Brush $34.35 usually ships 1-5 days
093 189-4362 Shaft $52.12 usually ships 1-5 days
