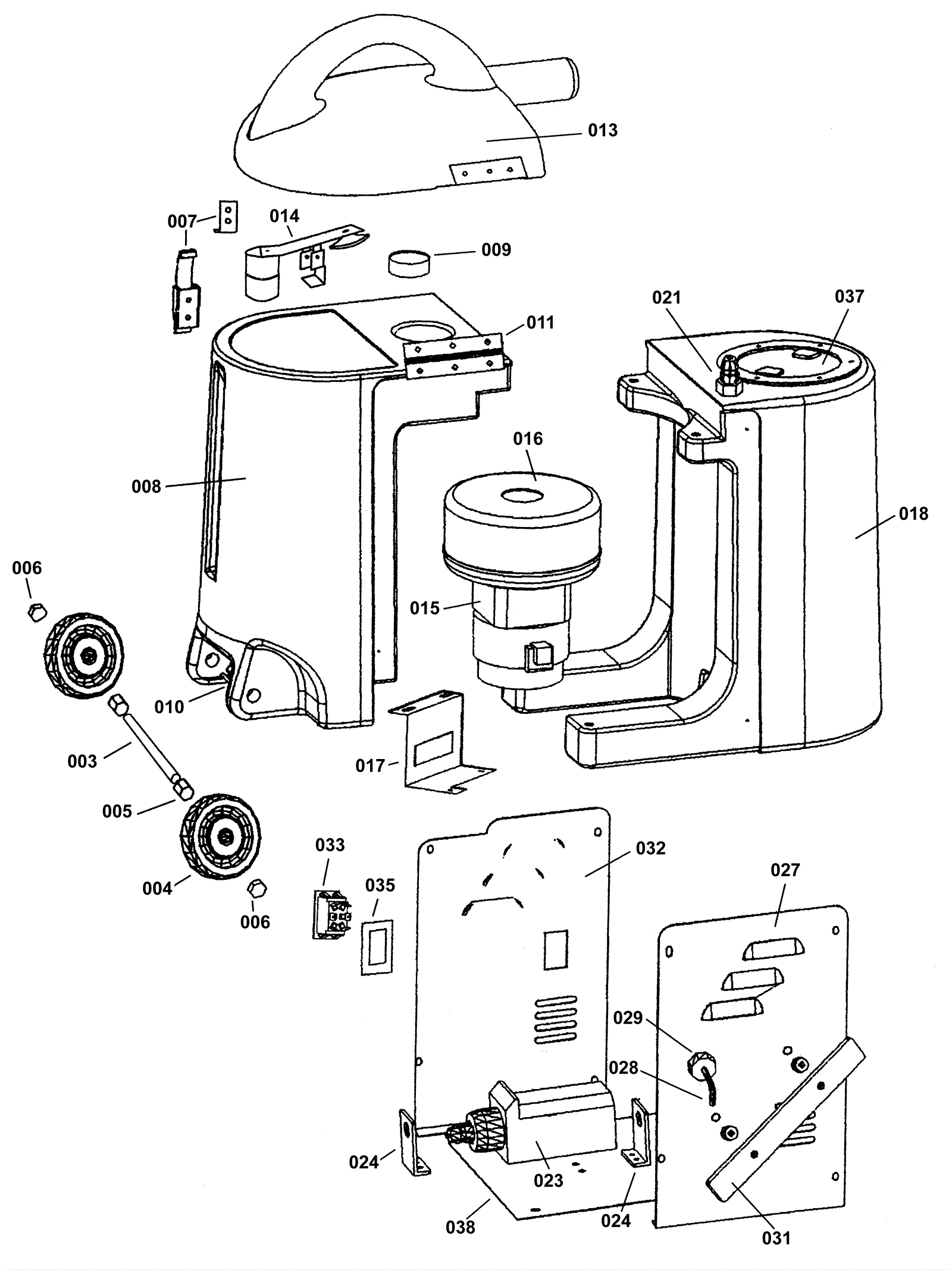

EX3S Entire Assembly

#PartDescriptionPriceReqNotesAvailability
003 189-4254 Axle $7.95 usually ships 1-5 days
004 189-4255 Wheel $10.95 usually ships 1-5 days
005 189-4256 Wheel spacer $7.07 usually ships 1-5 days
006 189-4257 Pal nut $4.84 usually ships 1-5 days
007 189-4258 Replacement latch $18.35 usually ships 1-5 days
008 189-4259 Recovery tank with screen $83.70 usually ships 1-5 days
009 189-4260 Foam filter $2.99 usually ships 1-5 days
010 189-4253 Drain plug $23.65 usually ships 1-5 days
011 189-4261 Hinge $5.50 usually ships 1-5 days
013 189-4263 Lid recovery tank $43.97 usually ships 1-5 days
014 189-4264 Flapper/float assembly $31.38 usually ships 1-5 days
015 993-1756 120 VOLT VAC MOTOR $132.00 usually ships 1-3 days
016 189-4266 Vacuum motor gasket $14.98 usually ships 1-5 days
017 189-4267 Motor bracket $5.15 usually ships 1-5 days
018 189-4268 Solution tank $92.76 usually ships 1-5 days
021 189-4271 Fitting brass 1/8 FPT x 1/8 in MQD $15.93 usually ships 11-24 days
024 189-4274 Mount pump (pair) $62.02 usually ships 11-24 days
027 189-4277 Panel cord access $5.02 usually ships 1-5 days
028 189-4278 18/3 pigtail power cord 15ft $191.68 usually ships 11-24 days
029 189-4279 Strain relief $26.53 usually ships 1-5 days
031 189-4281 Plate cord wrap $9.49 usually ships 1-5 days
032 189-4282 Connector $17.73 usually ships 1-5 days
033 189-4283 Switch rocker on/off $8.79 ships same day
035 189-4285 Label switch $224.70 usually ships 1-5 days
037 190-1175 4 inch clear lid $69.29 usually ships 10-27 days
038 189-4288 Gasket solution tank lid $7.56 usually ships 11-24 days
N/S 189-4001 Solution and vac hose assembly $608.99 usually ships 1-5 days
N/S 189-4262 Lid housing gasket $6.90 usually ships 1-5 days
N/S 189-4269 Solution tank strainer $16.80 usually ships 1-5 days
N/S 189-4270 1/4 inch hose (by the foot) $2.38 usually ships 11-24 days
N/S 189-4272 Fitting brass 1/4 MPT x 1/4 in 90 degree elbow (OBSOLETE) $9.08 usually ships 11-24 days
N/S 189-4275 Fitting brass bulkhead 3/4 in $28.59 usually ships 10-27 days
N/S 189-4276 Fitting nylon 1/8 MPT x 1/4 in HB 90 degree elbow (OBSOLETE) $13.75 usually ships 11-24 days
N/S 189-4284 Gasket bulkhead (OBSOLETE) $0.99 usually ships 11-24 days
N/S 189-4286 Panel bottom $21.89 usually ships 1-5 days
N/S 189-4289 Hose assy 1-1/4in x 10ft (includes hand tool) $361.22 usually ships 1-5 days
N/S 189-4290 2 1/4 inch hose clamp stainless steel $5.50 usually ships 1-5 days
N/S 189-4291 Handle collapsable $209.44 usually ships 1-5 days
N/S 189-4292 Chain sash (by the foot) $2.90 usually ships 1-5 days
N/S 189-4295 Pin hitch $5.50 usually ships 1-5 days
N/S 189-4297 4 inch lid (clear) $31.93 usually ships 1-5 days
N/S 189-7556 Strain relief nut $4.75 usually ships 11-24 days
N/S 189-8085 1.5 inch vacuum hose 10ft $134.44 usually ships 11-24 days
N/S 189-8086 10 foot solution hose $104.26 usually ships 11-24 days
N/S 216-0008 Hose assembly 1 1/4 inch x 10 foot $117.57 usually ships 10-27 days
N/S 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $8.75 ships same day
