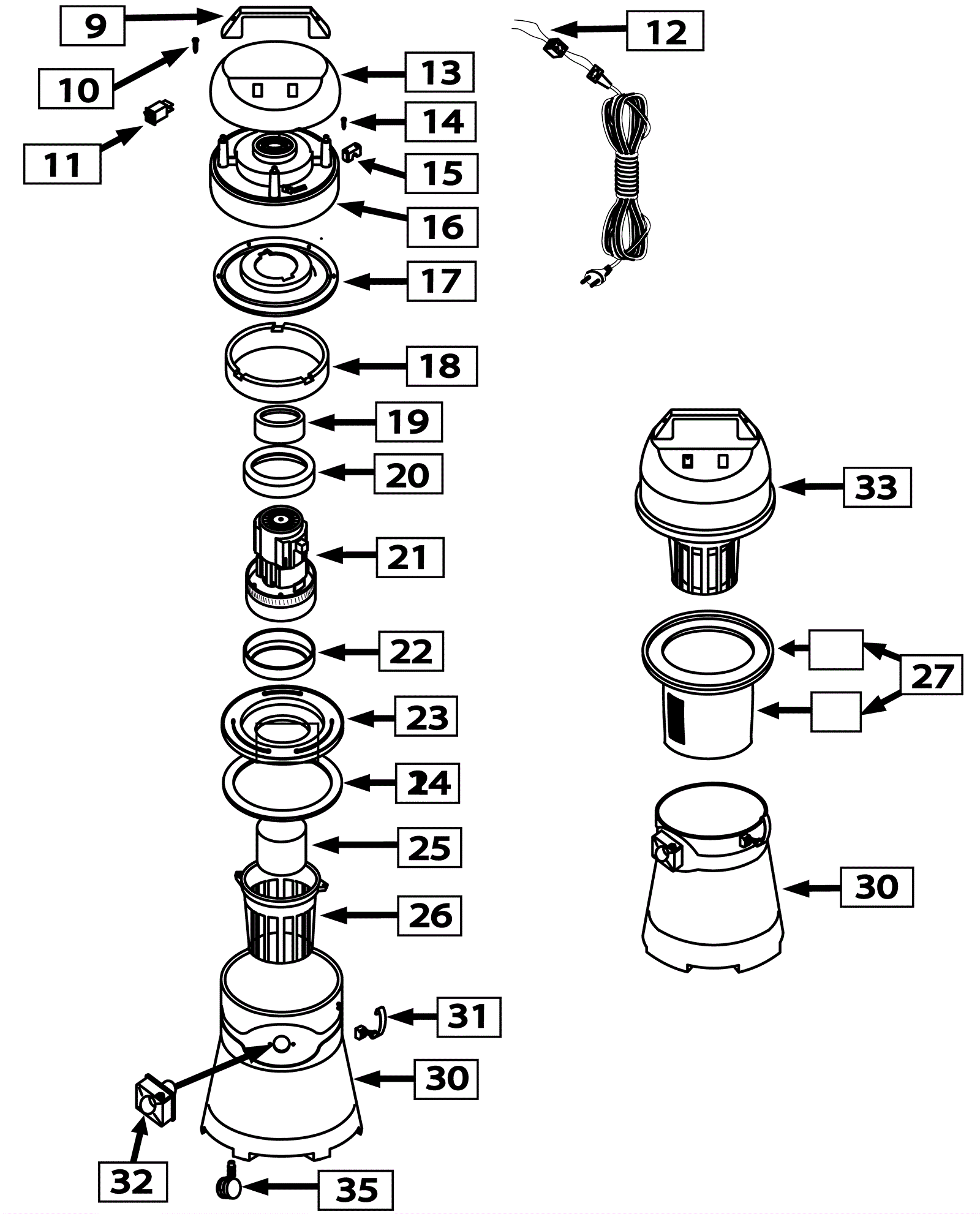

WORKMAN 3 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
9 189-5134 Handle $10.26 usually ships 1-5 days
10 189-8740 Screw $4.09 usually ships 1-5 days
11 189-9004 Switch $10.95 usually ships 11-24 days
12 189-8739 Power cord $108.96 ships same day
13 189-5137 Cover $17.74 usually ships 11-24 days
14 189-8742 Screw $4.09 usually ships 1-5 days
15 189-8751 Strain relief $2.38 usually ships 1-5 days
16 189-7571 Sleeve $19.82 usually ships 11-24 days
17 189-8743 Upper motor plate $11.24 usually ships 1-5 days
18 189-5139 Noise reduction foam $4.66 usually ships 11-24 days
19 189-8744 Spacer $4.31 usually ships 1-5 days
20 189-5138 Gasket $4.75 usually ships 11-24 days
21 189-5135 120V vacuum motor $185.87 usually ships 11-24 days
22 189-5138 Gasket $4.75 usually ships 11-24 days
23 189-4371 Bottom mounting plate $21.73 usually ships 11-24 days
24 189-5136 Gasket $8.28 usually ships 11-24 days
25 189-7587 Float $10.81 usually ships 11-24 days
26 189-7588 Float cage $7.15 usually ships 11-24 days
27 189-7589 Filter $27.63 usually ships 11-24 days
30 N/A Not available Call for price (3 gallon tank) usually ships 3-26 days
31 189-7586 Metal latch $11.17 usually ships 11-24 days
32 189-8745 Suction hose inlet $11.88 ships same day
35 N/A Not available Call for price (3 gallon tank caster) usually ships 3-26 days
N/S 189-9258 Vacuum head assembly $483.34 usually ships 11-24 days
