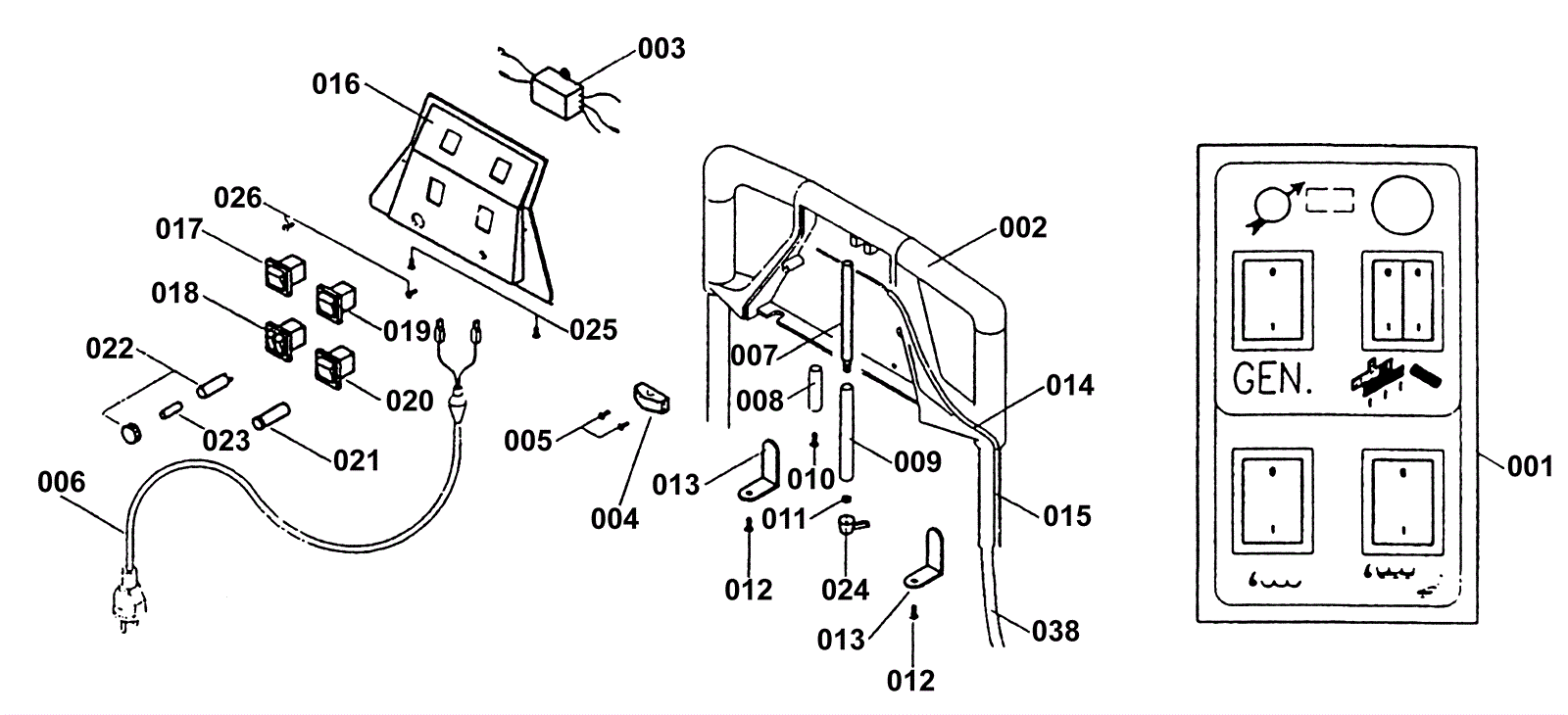

Control Panel

#PartDescription ReqNotesAvailability
001 189-1800 Dashboard label 1
002 189-1801 Black handle 1
003 189-1802 Filter 1
004 189-1803 Core hitch 1
005 189-1804 Screw 3.5x14.5 2
006 189-1805 14/3 power cord with plug 1
007 189-1806 Handle release pin 1
008 189-1807 Handle release lever stop bushing 1
009 189-1808 Sheath for the release pin 1
010 189-1809 Screw 3.9 x 32 self-tapping 1
011 999-1308 Nut M6-1 hex stainless steel 2
012 189-7516 Screw 3.9 x 13 self tapping 4
013 189-1810 Cable fixing bracket 2
014 189-1811 Handle release cable 1
015 189-1812 Sheath for the left handle cable 1
016 189-1813 Dashboard 1
017 203-4130 Main switch 1
018 189-7012 Bipolar switch with double red/green light 1
019 019 189-7013 Switch 1
020 189-7014 Switch 1
021 189-1857 Bulb cover with bulb 1
022 189-1814 Fuse carrier 6x32 1
023 189-8753 20amp fuse 1
024 189-1816 Handle release lever 1
025 189-1817 Screw 3.9 x 9 1/2 self-tapping 2
026 189-1818 Screw 4x45 2
