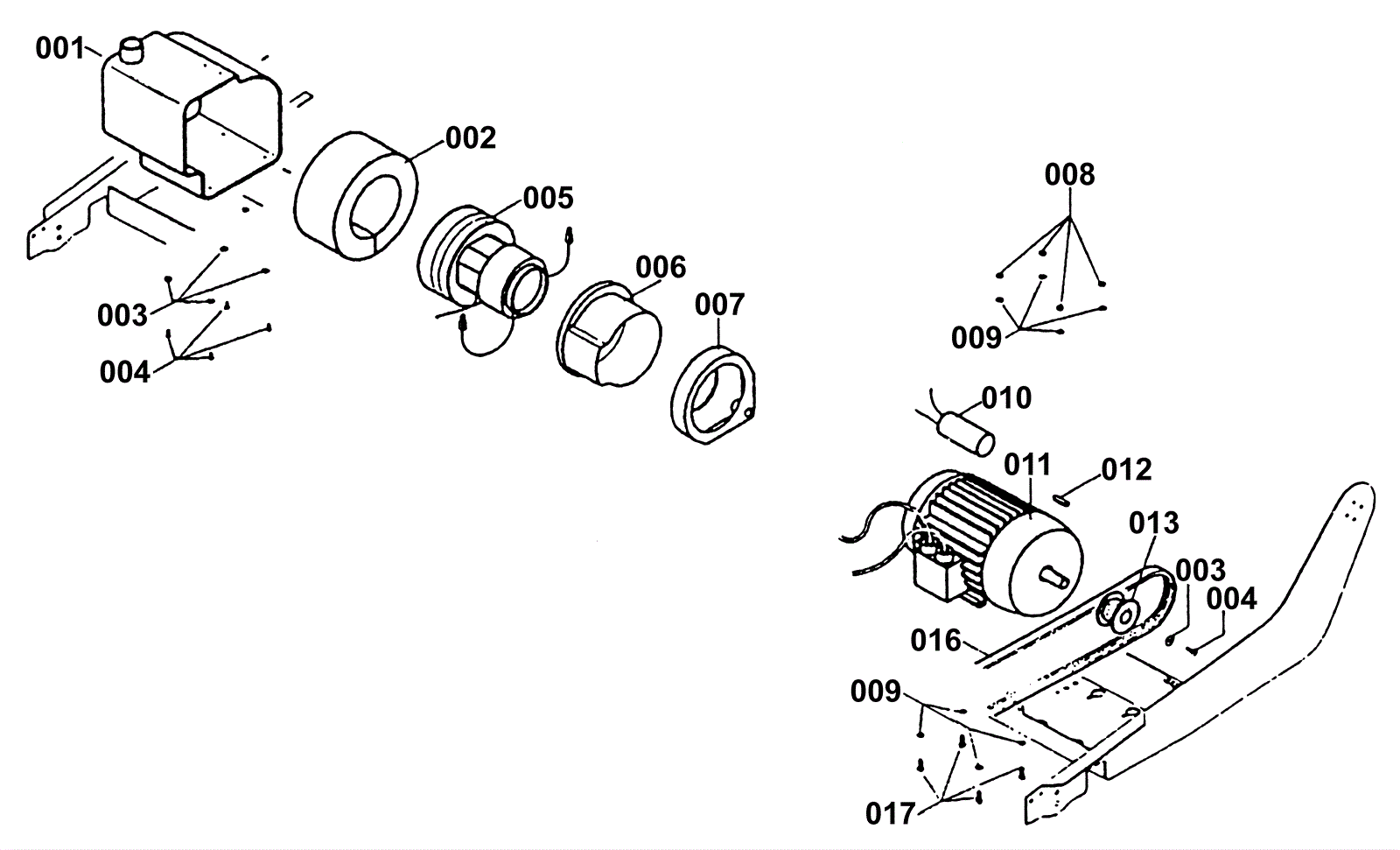

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-1785
|
Suction box |
1 |
|
|
002 |
189-1786
|
MAPPYSIL deadening gasket |
1 |
|
|
003 |
189-1787
|
Washer 4 x 16 |
5 |
|
|
005 |
189-7001
|
Vacuum motor |
1 |
|
|
006 |
189-1790
|
Motor guard |
1 |
|
|
007 |
189-1791
|
Motor cooling manifold |
1 |
|
|
008 |
999-1308
|
Nut M6-1 hex stainless steel |
4 |
|
|
009 |
189-1665
|
Washer |
8 |
|
|
010 |
189-1794
|
Capacitor 16pF |
1 |
|
|
011 |
189-1795
|
Motor 110 volts |
1 |
|
|
012 |
189-1796
|
Key 5x5x10 |
1 |
|
|
013 |
189-1797
|
Drive pulley |
1 |
|
|
014 |
203-2271
|
Screw 8x25 |
4 |
|
|
015 |
189-1789
|
Washer 8 x 24 |
8 |
|
|
016 |
189-7515
|
Poly Belt |
1 |
|
|
017 |
189-1792
|
Screw 6x25 |
4 |
|
|
018 |
189-7009
|
Screw 5 x 12 |
2 |
|
|
019 |
189-1793
|
Cooling air conveyor |
1 |
|
|
022 |
189-1485
|
Screw |
4 |
|
|
023 |
189-1799
|
Suction compartment cover |
1 |
|
|
024 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
