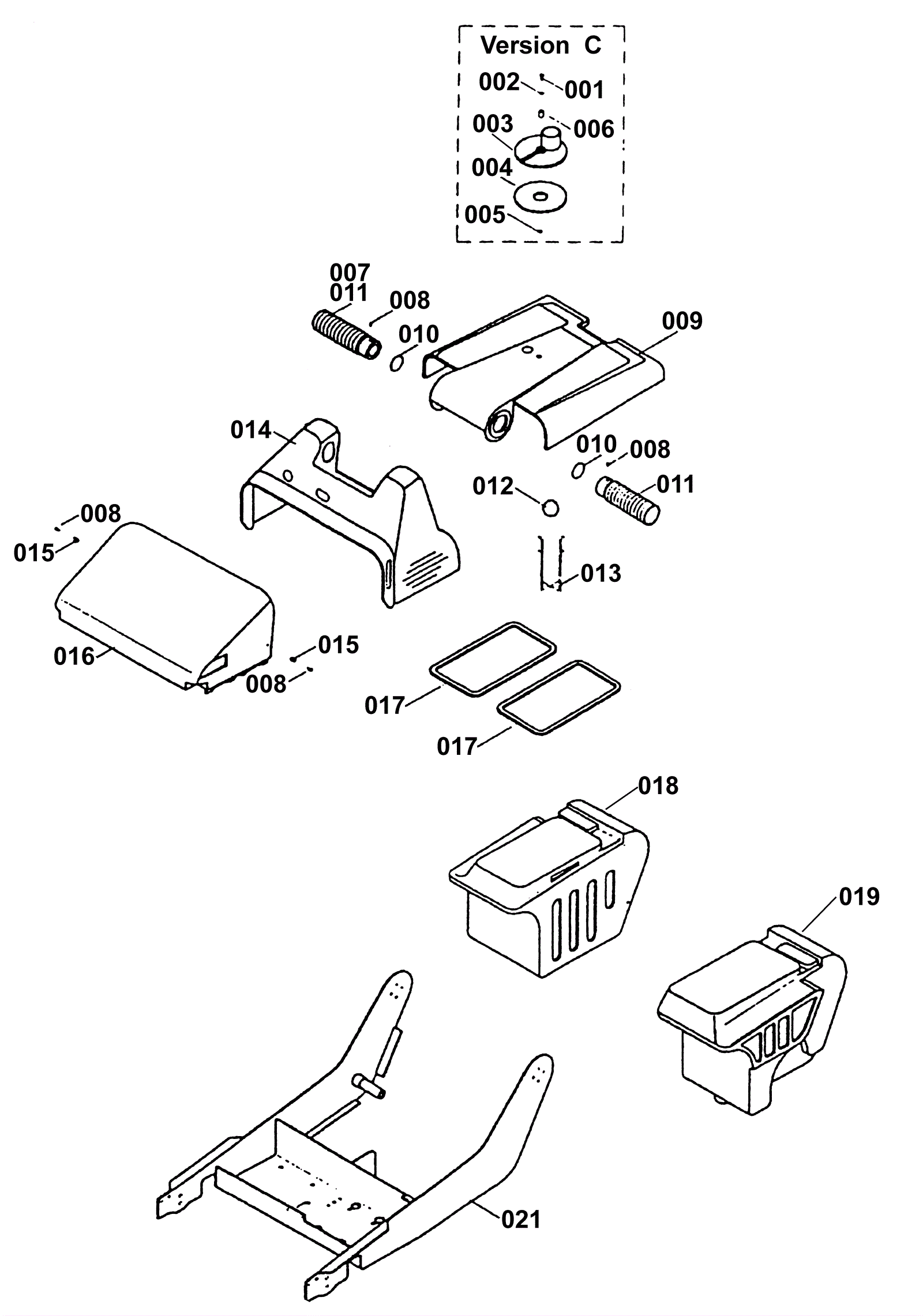

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-1679
|
Screw 4x30 |
1 |
|
|
002 |
203-4866
|
Washer 4 x 12 |
1 |
|
|
003 |
189-1735
|
Suction accessory connection |
1 |
|
|
004 |
189-1736
|
Gasket for accessory connection |
1 |
|
|
005 |
189-1737
|
M4 split threaded rivet |
1 |
|
|
006 |
189-1738
|
Bushing |
1 |
|
|
007 |
189-1739
|
FLEX pipe 120mm |
1 |
|
|
008 |
189-7516
|
Screw 3.9 x 13 self tapping |
4 |
|
|
009a1 |
189-1745
|
Cover-red (OBSOLETE) |
1 |
|
|
009a2 |
189-1746
|
Cover-blue (OBSOLETE) |
1 |
|
|
009a3 |
189-1747
|
Cover-grey (OBSOLETE) |
1 |
|
|
009a4 |
189-1748
|
Cover-light blue (OBSOLETE) |
1 |
|
|
009b1 |
189-1753
|
Cover complete red |
1 |
|
|
009b2 |
189-1754
|
Cover complete-blue (OBSOLETE) |
1 |
|
|
009b3 |
189-1755
|
Cover complete-grey |
1 |
|
|
009b4 |
189-1756
|
Cover complete-light blue (OBSOLETE) |
1 |
|
|
009c1 |
189-1749
|
Cover-L15C-red |
1 |
|
|
009c2 |
189-1750
|
Cover-L15C Blue |
1 |
|
|
009c3 |
189-1751
|
Cover- L15C Grey |
1 |
|
|
009c4 |
189-1752
|
Cover-L15C Light blue |
1 |
|
|
009d1 |
189-1757
|
Cover complete-L15C-red |
1 |
|
|
009d2 |
189-1758
|
Cover complete-L15C-blue |
1 |
|
|
009d3 |
189-1759
|
Cover complete-L15C-grey |
1 |
|
|
009d4 |
189-1760
|
Cover complete-L15C-light blue |
1 |
|
|
010 |
189-1740
|
O-ring |
2 |
|
|
011 |
189-1741
|
FLEX pipe 250mm |
1 |
|
|
012 |
189-1742
|
Ball for float |
1 |
|
|
013 |
189-1743
|
Cage for float |
1 |
|
|
014 |
189-1744
|
Rubber pad for bin |
2 |
|
|
014a1 |
189-1761
|
Bonnet-red |
1 |
|
|
014a2 |
189-1762
|
Bonnet-blue |
1 |
|
|
014a3 |
189-1763
|
Bonnet-grey |
1 |
|
|
014a4 |
189-1764
|
Bonnet-light blue |
1 |
|
|
014b1 |
189-1765
|
Bonnet-L15C-red |
1 |
|
|
014b2 |
189-1766
|
Bonnet-L15C-blue |
1 |
|
|
014b3 |
189-1767
|
Bonnet-L15C-grey |
1 |
|
|
014b4 |
189-1768
|
Bonnet-L15C-light blue |
1 |
|
|
015 |
189-5717
|
Arm |
1 |
|
|
016a1 |
189-1769
|
Drawer-red |
1 |
|
|
016a2 |
189-1770
|
Drawer-blue |
1 |
|
|
016a3 |
189-1771
|
Drawer-grey |
1 |
|
|
016a4 |
189-1772
|
Drawer-light blue |
1 |
|
|
016b1 |
189-1769
|
Drawer-red |
1 |
|
|
016b2 |
189-1774
|
Drawer complete-blue |
1 |
|
|
016b3 |
189-1775
|
Drawer complete-grey |
1 |
|
|
016b4 |
189-1776
|
Drawer complete-light blue |
1 |
|
|
017 |
189-7517
|
Mousse kit for tank |
1 |
|
|
018a |
203-2875
|
Recycling tank-white (OBSOLETE) |
1 |
|
|
018b |
189-1778
|
Recycling tank-black |
1 |
|
|
019a |
189-1780
|
Grout machine solution tank |
1 |
|
|
019b |
189-1780
|
Grout machine solution tank |
1 |
|
|
020a |
189-1781
|
Accessory tank-white |
1 |
|
|
020b |
189-1782
|
Accessory tank-black |
1 |
|
|
021a |
189-1783
|
Frame-black |
1 |
|
|
021b |
189-1784
|
Frame-grey |
1 |
|
|
