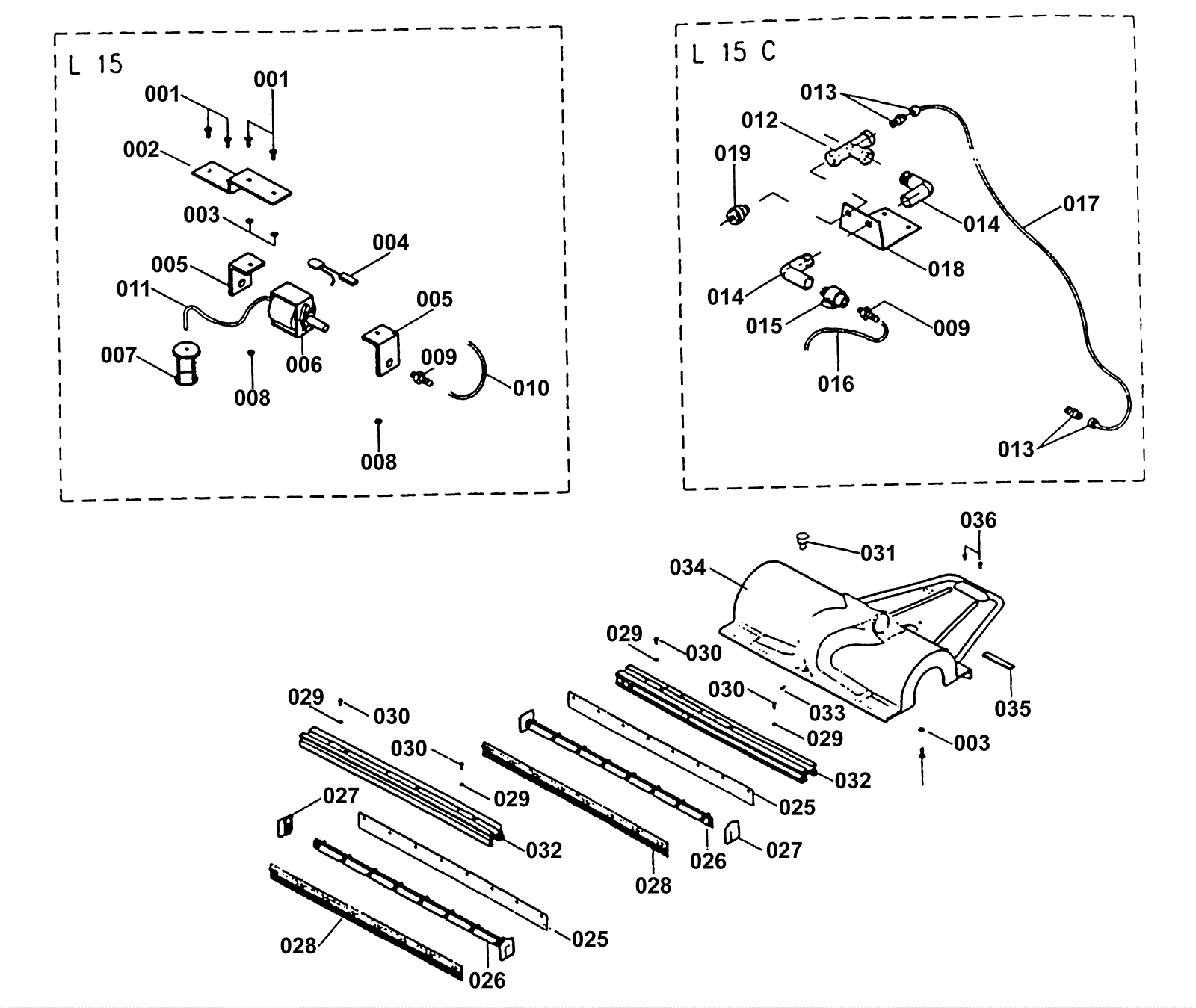

| # | Part | Description |
Req | Notes | Availability |
|---|
002 |
189-1708
|
Pump support bracket |
1 |
|
|
003 |
189-1709
|
Washer 4 x 16 |
11 |
|
|
004 |
189-1710
|
Thermal protection for pump |
1 |
|
|
005 |
203-0262
|
Bracket |
2 |
|
|
006 |
189-7002
|
Solution pump |
1 |
|
|
007 |
189-7010
|
Solution filter L15 |
1 |
|
|
008 |
189-1661
|
Nut |
2 |
|
|
009 |
189-1714
|
1/8 inch hose fitting |
1 |
|
|
010 |
189-1715
|
Supplementary pipe |
1 |
|
|
011 |
189-1717
|
Pipe for solution |
1 |
|
|
012 |
189-1718
|
1/8 inch Union tee |
1 |
|
|
013 |
189-1712
|
Straight male pipe fitting |
2 |
|
|
014 |
189-1713
|
1/8 inch union elbow |
2 |
|
|
015 |
189-1719
|
Mini 1/8 inch ball valve |
1 |
|
|
016 |
189-1720
|
Water pipe for brush |
1 |
|
|
017 |
189-1721
|
Supplementary pipe |
1 |
|
|
018 |
189-1722
|
Accessory support bracket |
1 |
|
|
019 |
189-1723
|
1/8 inch small coupling |
1 |
|
|
020 |
189-1724
|
1/8 inch 6 x 8 union elbow |
1 |
|
|
021 |
189-1725
|
1/4 inch 6 x 8 union elbow |
1 |
|
|
022 |
189-1726
|
Supplementary pipe |
1 |
|
|
023 |
189-1727
|
Water pipe for brush |
1 |
|
|
025 |
189-7003
|
Wiper blade |
2 |
|
|
026 |
189-7015
|
Blade support 15 inch |
2 |
|
|
027 |
189-7005
|
Squeegee cap |
2 |
|
|
028 |
189-7004
|
Wiper blade |
2 |
|
|
029 |
203-4866
|
Washer 4 x 12 |
2 |
|
|
030 |
189-1729
|
Screw 3.5 x 19 self tapping |
4 |
|
|
031 |
189-1730
|
Squeegee adjustment spring guide |
1 |
|
|
032 |
189-7016
|
Squeegee pad support |
2 |
|
|
033 |
189-1731
|
Screw 5 x 12 |
1 |
|
|
034 |
189-1732
|
Suction shute |
1 |
|
|
035 |
189-1733
|
Fixing bracket |
1 |
|
|
036 |
189-7009
|
Screw 5 x 12 |
2 |
|
|
KIT |
189-1734
|
Complete squeegee kit |
|
(Includes items 25, 26, 27, and 28) |
|
