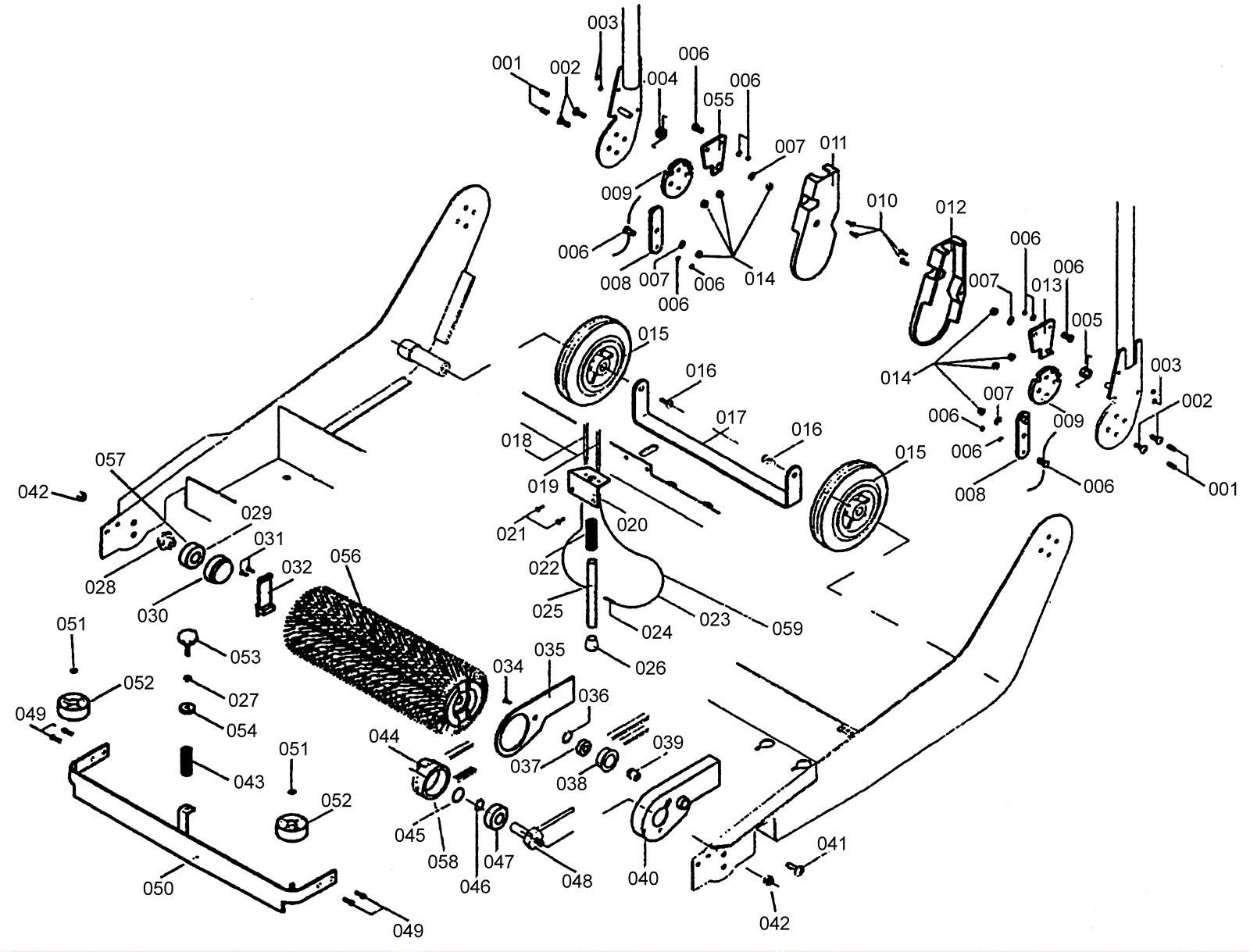

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-1659
|
Spring cotter pin |
4 |
|
|
002 |
189-1660
|
Screw |
4 |
|
|
003 |
189-1661
|
Nut |
4 |
|
|
004 |
189-1662
|
Spring for right hand lever |
1 |
|
|
005 |
189-1663
|
Spring for left hand lever |
1 |
|
|
006 |
189-1664
|
Clamp |
4 |
|
|
007 |
189-1665
|
Washer |
4 |
|
|
008 |
189-1666
|
Lifting lever |
2 |
|
|
009 |
189-1667
|
Gear wheel |
2 |
|
|
010 |
189-1668
|
Screw |
4 |
|
|
011 |
189-1669
|
RH handle articulation casting |
1 |
|
|
012 |
189-1670
|
LH handle articulation casting |
1 |
|
|
013 |
189-1671
|
LH articulation lever |
1 |
|
|
014 |
189-1672
|
Nut M6 lock |
8 |
|
|
015 |
189-1673
|
Wheel |
2 |
|
|
016 |
189-1674
|
Screw 6x10 |
2 |
|
|
017 |
189-1675
|
Rear wheel axle support |
1 |
|
|
018 |
189-1676
|
Lifting rod cable |
1 |
|
|
019 |
189-1677
|
Lifting rod cable sheath |
1 |
|
|
020 |
189-1678
|
Lifting bracket |
1 |
|
|
021 |
189-7516
|
Screw 3.9 x 13 self tapping |
4 |
|
|
022 |
189-1680
|
Spring |
1 |
|
|
023 |
189-1681
|
Cable for the lifting rod |
1 |
|
|
024 |
189-1682
|
Spring cotter |
1 |
|
|
025 |
189-1683
|
Machine lifting rod |
1 |
|
|
026 |
189-1684
|
Cable cap |
1 |
|
|
027 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
|
028 |
189-7518
|
Brush pin |
1 |
|
|
029 |
250-1001
|
Bearing |
1 |
|
|
030 |
189-7520
|
Bushing |
1 |
|
|
031 |
189-1686
|
Screw 3.9 x 16 self tapping |
2 |
|
|
032 |
203-3225
|
Main brush locking retainer |
1 |
|
|
033a |
189-1691
|
Brush natural |
1 |
(brush only) (for assembly see 56) |
|
033b |
189-1688
|
Brush natural |
1 |
(brush only) (for assembly see 56) |
|
033c |
189-1689
|
Brush Tynex |
1 |
(brush only) (for assembly see 56) |
|
033d |
189-1690
|
Brush nylon |
1 |
(brush only) (for assembly see 56) |
|
033f |
189-1692
|
Brush tynex |
1 |
(brush only) (for assembly see 56) |
|
034 |
203-4720
|
Screw 4 x 10 |
1 |
|
|
035 |
189-1694
|
Belt guard lock |
1 |
|
|
036 |
189-1695
|
Inner snap ring |
1 |
|
|
037 |
189-1696
|
Bearing |
1 |
|
|
038 |
189-1697
|
Belt tightening roller |
1 |
|
|
039 |
189-1698
|
Pin for the belt tightening roller |
1 |
|
|
040 |
189-1699
|
Belt guard |
1 |
|
|
041 |
189-1700
|
Screw 6 x 10 |
1 |
|
|
042 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
043 |
189-1702
|
Compression spring |
1 |
|
|
044 |
189-7521
|
Driven pulley |
1 |
|
|
045 |
189-7522
|
Gasket |
1 |
|
|
046 |
189-7523
|
Outer snap ring |
1 |
|
|
047 |
250-1152
|
Bearing |
1 |
|
|
048 |
189-7525
|
Pulley pin with copper pipe (OBSOLETE) |
1 |
|
|
049 |
189-7009
|
Screw 5 x 12 |
4 |
|
|
050 |
189-1703
|
Bumper |
1 |
|
|
051 |
189-7008
|
Snap ring |
2 |
|
|
052 |
189-7007
|
Wheel |
2 |
|
|
053 |
203-0405
|
Handwheel |
1 |
|
|
054 |
189-1705
|
Squeegee adj. spring bushing |
1 |
|
|
055 |
189-1706
|
RH articulation lever |
1 |
|
|
056a |
189-7514
|
Nylon brush assembly |
1 |
(Includes items 31, 32, and 33a)(100 x 375) |
|
056b |
203-9166
|
Natural brush assembly |
1 |
(Includes items 31, 32, and 33b)(100 x 375) |
|
056c |
189-1689
|
Brush Tynex |
1 |
(Includes items 31, 32, and 33c)(100 x 375) |
|
056d |
189-1851
|
Nylon brush assembly |
1 |
(Includes items 31, 32, and 33d)(100 x 490) |
|
056e |
189-1852
|
Natural brush assembly |
1 |
(Includes items 31, 32, and 33e)(100 x 490) |
|
056f |
189-1853
|
Tynex brush assembly |
1 |
(Includes items 31, 32, and 33f)(100 x 490) |
|
057 |
189-1854
|
Complete brush pin |
1 |
|
|
058 |
189-1855
|
Complete driven pulley |
1 |
|
|
059 |
189-1856
|
Complete machine lifting rod - NOT AVAILABLE SEE NOTE |
1 |
|
|
