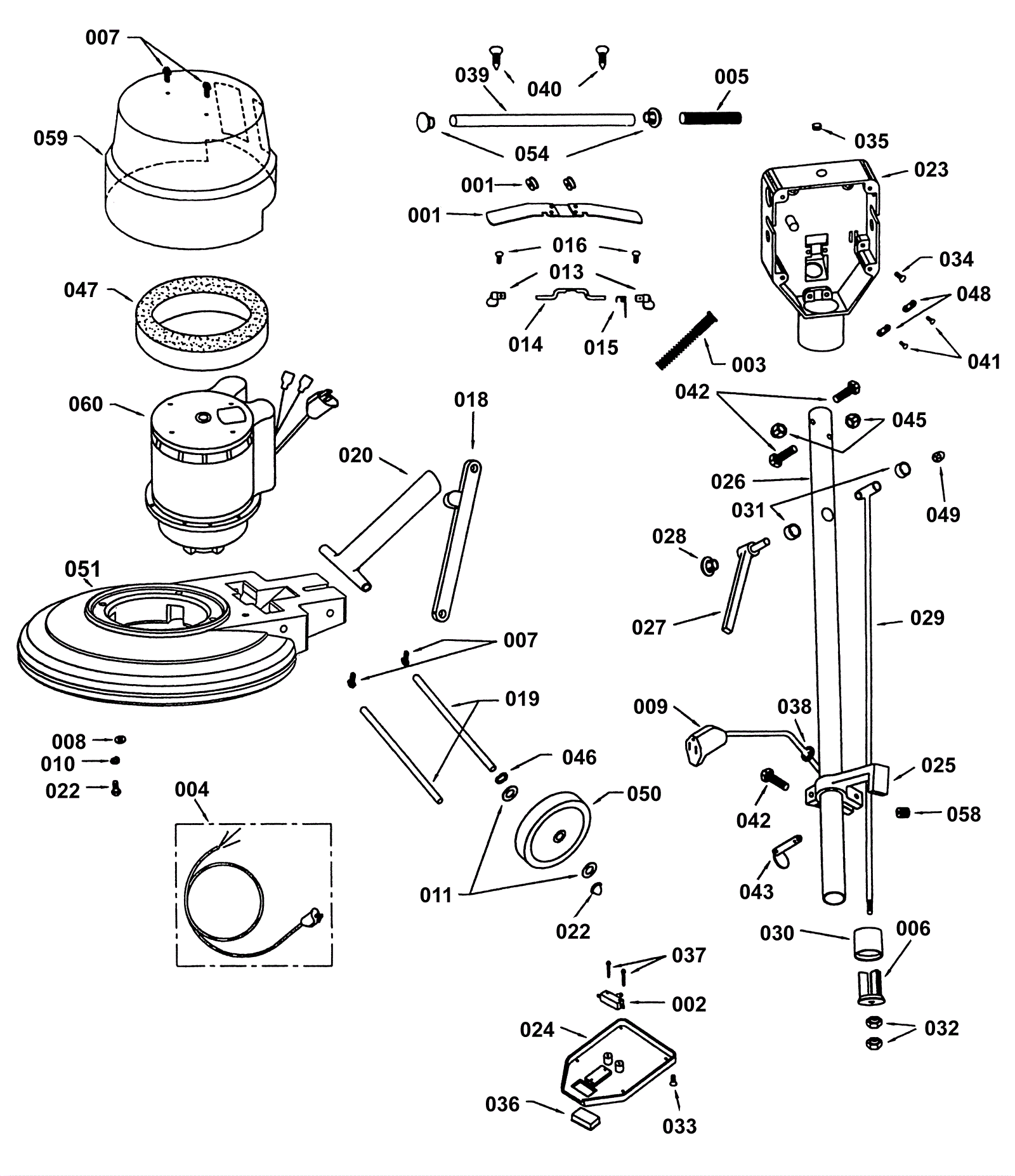

FL20HD Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001a 189-5007 Trigger assembly $47.88 1 usually ships 1-5 days
001b 189-5014 5/8 in grommet $2.02 2 usually ships 1-5 days
002 189-3115 Switch $19.47 1 usually ships 11-24 days
003 189-5009 Anti-kink spring $8.69 1 usually ships 1-5 days
004 991-5005 14/3 replacement power cord 50 foot (yellow) $86.81 1 (NON-OEM) (does not include strain relief) ships same day
005 189-5010 Handle grip foam (OBSOLETE) $8.83 2 usually ships 11-24 days
006 189-5011 Wedge handle (OBSOLETE) $20.82 1 usually ships 11-24 days
007 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 6 ships same day
008 999-0964 Washer 5/16 x 3/4 flat stainless steel $0.99 4 ships same day
009 189-5004 42 inch female pigtail (OBSOLETE) $18.39 1 usually ships 11-24 days
010 189-1305 Washer 5/16 spring lock $0.99 4 usually ships 1-5 days
011 999-0566 Washer 1/2 flat nylon $0.99 6 ships same day
013 189-5015 Knob safety switch $19.06 2 usually ships 1-5 days
014 189-5016 Lever safety switch $1.94 1 usually ships 1-5 days
015 189-5017 Spring safety switch $3.92 1 usually ships 1-5 days
016 189-1307 Screw 6-32 x 1/4 tap $2.18 2 usually ships 1-5 days
018 189-5019 Painted handle brace $47.16 1 usually ships 1-5 days
019 189-5020 Plated axle shaft $15.70 2 usually ships 11-24 days
020 189-5021 T-handle support paint $74.17 1 usually ships 1-5 days
021 189-5002 Axle end caps $2.18 2 usually ships 1-5 days
022 189-1308 Bolt 5/16- 18 x 1 1/2 hex brass $2.18 4 usually ships 11-24 days
023 189-5022 Painted switch box $192.97 1 usually ships 1-5 days
024 189-5023 Cover paint switch box $76.48 1 usually ships 1-5 days
025 N/A Not available Call for price 1 (Brace lock) usually ships 3-26 days
026 189-5025 Plated handle tube $179.05 1 usually ships 1-5 days
027 N/A Not available Call for price 1 (Cam lever assembly) usually ships 3-26 days
028 189-5027 Heyco cam lever plug $5.50 1 usually ships 1-5 days
029 189-5028 Extension rod welded $48.07 1 usually ships 1-5 days
030 189-5029 Tapered sleeve (OBSOLETE) $26.21 1 usually ships 11-24 days
031 N/A Not available Call for price 2 (Bushing) usually ships 3-26 days
032 189-1309 Nut 5/16-18 nylon locking $2.18 2 usually ships 1-5 days
033 999-0759 Screw 6-32 x 3/8 flat head phillips zinc plated $0.99 4 ships same day
034 189-1311 8-32 X 1/4 Phillips Taptite $2.18 1 usually ships 1-5 days
035 189-5031 Reset insert $2.18 1 usually ships 1-5 days
036 189-5032 Switch insert $6.11 1 usually ships 1-5 days
037 189-1316 6-32 X 7/8 Phillips Taptite (OBSOLETE) $2.18 2 usually ships 11-24 days
038 217-0014 On/off switch $42.96 1 ships same day
039 189-5033 Handle tube $10.15 1 usually ships 1-5 days
040 189-1317 Screw 14 x 1 1/2 type a $2.18 2 usually ships 1-5 days
041 189-1318 8-32 X 1/2 Taptite Phillips $2.18 4 usually ships 1-5 days
042 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 3 ships same day
043 189-5005 Hitch pin (OBSOLETE) $33.83 1 usually ships 11-24 days
044 189-5035 Switch box cover assembly $245.38 1 usually ships 1-5 days
045 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
046 189-1321 Washer TW8 1/2 tension $2.66 6 usually ships 11-24 days
047 189-5036 Wet sm shroud filter (OBSOLETE) $7.15 1 usually ships 11-24 days
048 189-5037 Cord grip $2.18 2 usually ships 1-5 days
049 999-0234 Nut 3/8-16 acorn nickel plated $1.18 1 ships same day
050 189-5001 5 inch wheel $32.92 2 usually ships 1-5 days
051a 189-2951 Chassis 19 inch $177.32 1 usually ships 1-5 days
051b 189-2952 Chassis 17 inch $238.12 1 usually ships 1-5 days
052 189-1328 Painted pad holder Call for price 1 usually ships 1-5 days
053 189-1329 3/4 Diameter knob with 1/4-20 X 3/8 stud Call for price 1 usually ships 1-5 days
054 189-6015 Dome plug $2.18 2 usually ships 11-24 days
058 189-1323 Screw 5/16-18 x 5/16 set $2.18 1 usually ships 1-5 days
059 189-5012 Stainless steel hd motor cover $48.65 1 usually ships 1-5 days
060a 189-5013 Stainless steel hd 1-1/2 hp motor $1,723.59 1 usually ships 1-5 days
060b 189-4850 Start capacitor $69.10 1 usually ships 11-24 days
060c 189-2506 Run capacitor $51.94 1 usually ships 1-5 days
060d 189-5092 Start switch $163.04 1 usually ships 1-5 days
