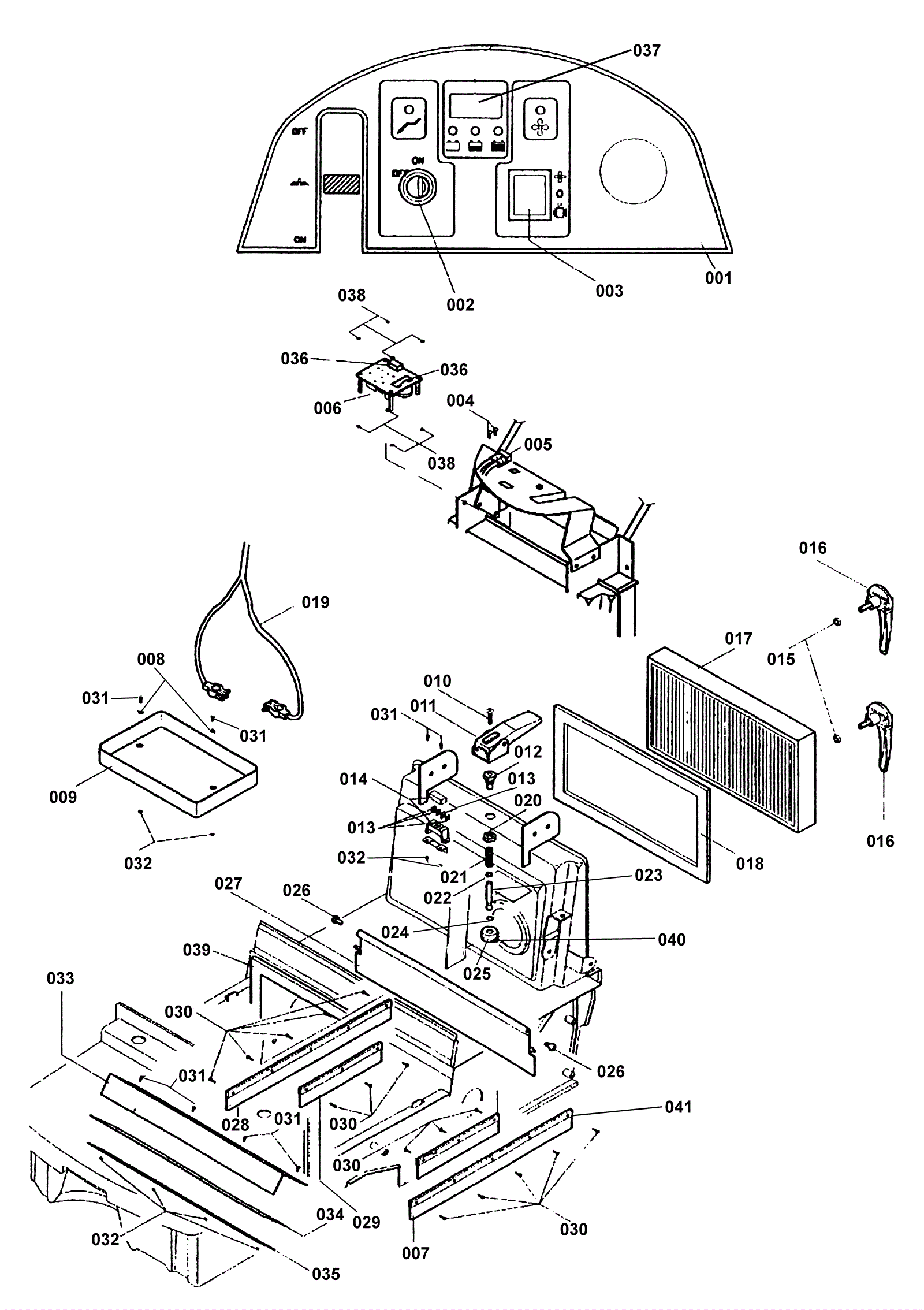

TRAIL520ET Control Panel and Skirt Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1998 Dashboard plate $99.30 1 usually ships 1-5 days
002 203-3125 Key switch $93.87 1 usually ships 1-5 days
003 189-2000 Bipolar switch $45.18 1 usually ships 11-24 days
004 189-2001 Screw 5x20 $14.22 2 usually ships 1-5 days
005 189-2002 Battery charger connector $25.59 1 usually ships 4-7 days
006 189-2003 Circuit board/12Vmotor blocking driving $585.04 1 usually ships 1-5 days
007a 203-3151 Frame flaps kit $285.76 1 usually ships 1-5 days
007b 189-2005 Left side flap black Call for price usually ships 1-5 days
008 189-2006 Washer 5 x 10 $4.40 2 usually ships 1-5 days
009 189-2007 Battery container $55.72 1 usually ships 1-5 days
010 189-2008 Screw 6x25 Call for price 1 usually ships 1-5 days
011 189-2009 Complete filtershakers lever Call for price 1 usually ships 1-5 days
012 189-2010 Filtershakers rail Call for price 1 usually ships 1-5 days
013a 203-3133 30amp fuse $2.34 3 usually ships 1-5 days
013b 189-2012 Fuse 20A $10.95 1 usually ships 11-24 days
014 203-3134 Fuse box and cover $58.42 1 usually ships 5-15 days
015 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 2 ships same day
016 189-2015 Unlocking filter handle $98.75 2 usually ships 1-5 days
017a 203-1258 Standard paper filter $231.02 1 usually ships 5-15 days
017b 203-3136 Hospital grade filter, washable $287.73 usually ships 1-5 days
018 203-3137 Filter gaskets kit $24.57 1 usually ships 5-15 days
019 189-2019 Electrical installation $1,050.83 1 usually ships 1-5 days
020 189-2020 Nut M18 Call for price 1 usually ships 1-5 days
021 189-2021 Filtershaker spring Call for price 1 usually ships 1-5 days
022 189-2022 Gasket Call for price 1 usually ships 1-5 days
023 203-4192 Pin $24.86 1 usually ships 1-5 days
024 189-2024 Inner snap ring Call for price 1 usually ships 1-5 days
025 189-2025 Articulated bar Call for price 1 usually ships 1-5 days
026 189-2026 Screw 10x16 Call for price 1 usually ships 1-5 days
027 203-3144 Backside flap $65.27 1 usually ships 1-5 days
028a 203-3151 Frame flaps kit $285.76 1 usually ships 1-5 days
028b 189-2029 Right side flap black Call for price usually ships 1-5 days
029a 203-3151 Frame flaps kit $285.76 2 usually ships 1-5 days
029b 189-2031 Inner flap black Call for price usually ships 1-5 days
030 189-2032 Screw 3.5x9.5 $14.22 16 usually ships 1-5 days
031 189-2033 Screw 4x16 $13.89 8 usually ships 1-5 days
032 189-1661 Nut $2.18 8 usually ships 1-5 days
033 189-2034 Flap fixer $30.22 1 usually ships 1-5 days
034 189-2035 Rubber $24.10 1 usually ships 1-5 days
035 189-2036 Flap $12.63 1 usually ships 1-5 days
036a 189-2037 50A fuse $13.67 1 usually ships 1-5 days
036b 189-2038 1.6A fuse $22.28 1 usually ships 1-5 days
037 189-2039 Hour meter Call for price 1 usually ships 1-5 days
038 189-1661 Nut $2.18 8 usually ships 1-5 days
039 189-2040 Adhesive kit for front drawer $60.01 1 usually ships 1-5 days
040 189-2041 Complete filtershaker jointed rod Call for price usually ships 1-5 days
041a 189-2042 Grey frame flap kit Call for price usually ships 1-5 days
041b 203-3151 Frame flaps kit $285.76 usually ships 1-5 days
N/S 162-1006 Control board fuse $4.22 For 162-9015 charger ships same day
N/S 162-9015 Gel battery charger $409.17 1 usually ships 5-16 days
