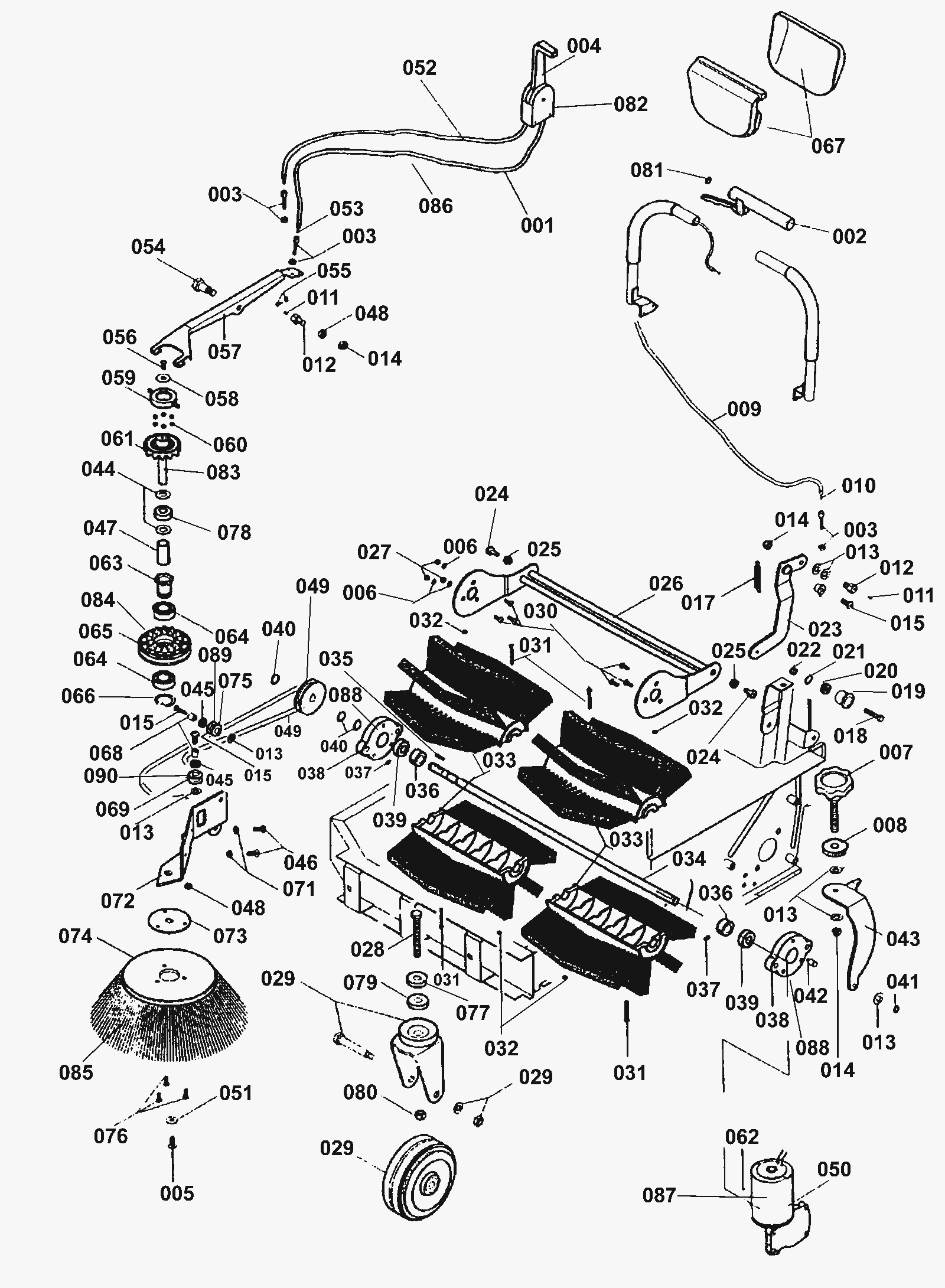

Brush Head Assembly

#PartDescription ReqNotesAvailability
001 203-3366 Side brush sheathing 1
002 189-1883 Traction handle 1
003 189-1884 Turned adjuster 3
004 189-1885 Sidebrush drive lever 1
005 189-1886 Screw 6x16 1
006 189-1887 Washer 6 x 12 3
008 189-1889 Nut M12 knurled ring 1
009 189-1890 Drive cable sheath 1
010 189-1891 Drive cable 1
011 189-1892 Dowel 5x6 2
012 189-1893 Wire fixing screw 2
013 189-1872 Washer 8 x 17 7
014 999-0471 Nut M8-1.25 nylon insert lock zinc plated 3
015 189-1894 Screw 8x25 3
016 189-1895 Belt tightener lever 1
017 189-1896 Traction spring 1
018 189-1897 Fixing screw belt tightener roller 1
019 203-3068 Belt tightener roll 1
020 189-1696 Bearing 1
021 189-1695 Inner snap ring 1
022 203-4188 Spacer 1
023 203-3072 Belt tightener bracket 1
024 203-3073 Pin for rocker 2
025 203-3074 Rocker bushing 2
026 189-1903 Rocker 1
027 189-1672 Nut M6 lock 3
028 189-1904 Screw 12x60 1
029a 189-1905 Rotary support wheel grey 1
029b 189-1906 Rotary support wheel black
030 189-1907 Screw 6x20 6
031 189-1908 Screw 5x70 4
032 189-1843 Nut M5 4
033 189-1909 Center brush 1
034 203-3080 Brush shaft 1
035 189-1911 Key 5x5x15 1
036 189-1912 Brush shaft spacer 2
037 189-1913 Dowel 6x5 2
038 189-1914 Bearing support 2
039 189-2577 Bearing 2
040 189-1916 Outer snap ring 3
041 189-1917 Outer snap ring 1
042 189-1918 Brush adjusting fixing pivot 1
043 189-1919 Main brush adjustment bracket 1
044 203-3084 Side arm felt washer 2
045 189-1921 Bearing 2
046 189-1874 Screw 8x10 2
047 203-3086 Side brush shaft spacer 1
048 189-1860 Nut M8 block 2
049 189-1923 Pulley 1
050a 189-1924 Gear motor 1 Before serial number 7000
050b 189-2500 Gear motor 1 After serial number 7000
051 203-1171 Washer 6 x 24 1
052 189-1925 Side brush sheathing 1
053 203-3090 Side brush lifting cable 1
054 189-1927 Pin 17x34 1
055 189-1928 Clamp 1
056 189-1929 Screw 8x22 1
057 189-1930 Side brush lifting lever 1
058 189-1931 Washer 8 x 32 1
059 189-1932 Ring for the side brush bearing 1
060 203-3096 Ball 11/32 inch 6
061 189-1934 Side brush movement toothed ring 1
062 189-1935 Key 3x3.7 1
063 203-3084 Side arm felt washer 1
064 203-3101 Bearing 2
065 189-1938 Idle toothed ring 1
066 189-0093 Snap Ring 1
067 189-1940 Traction handle casing 1
068 203-3105 Spacer 2
069 189-1942 Pulley 27x15 1
070 275-6067 Belt 1
071 189-1789 Washer 8 x 24 2
072 189-1944 Side brush support 1
073 203-3109 Side brush dragging flange 1
075 189-1947 Pulley 30x15 1
076 203-1164 Screw 6x10 3
077 189-1949 Spacer 1
078 203-3115 Bearing 1
079 189-1951 Spacer 1
080 189-1952 Nut M12 block 1
081 189-1953 Bushing 1
082 189-1954 Complete brush-lifting lever (Includes items 4 and 86)
083 189-1955 Complete movement ring (Includes items 44, 47, 56, 58, 59, 60, 61, and 78)
084 189-1956 Complete idle tooth ring (Includes items 63, 64, 65, and 66)
085 203-3111 Side brush (Includes items 73, 74, and 76)
086 189-1958 Side brush sheathing & cable (Includes items 1, 52, and 53)
087 189-1959 Carbon brush
088 189-1960 Complete bearing support (Includes items 38 and 39)
089 189-1961 Complete pulley 27x15 (Includes items 75 and 45)
090 189-1962 Complete pulley 30x15 (Includes items 69 and 45)
