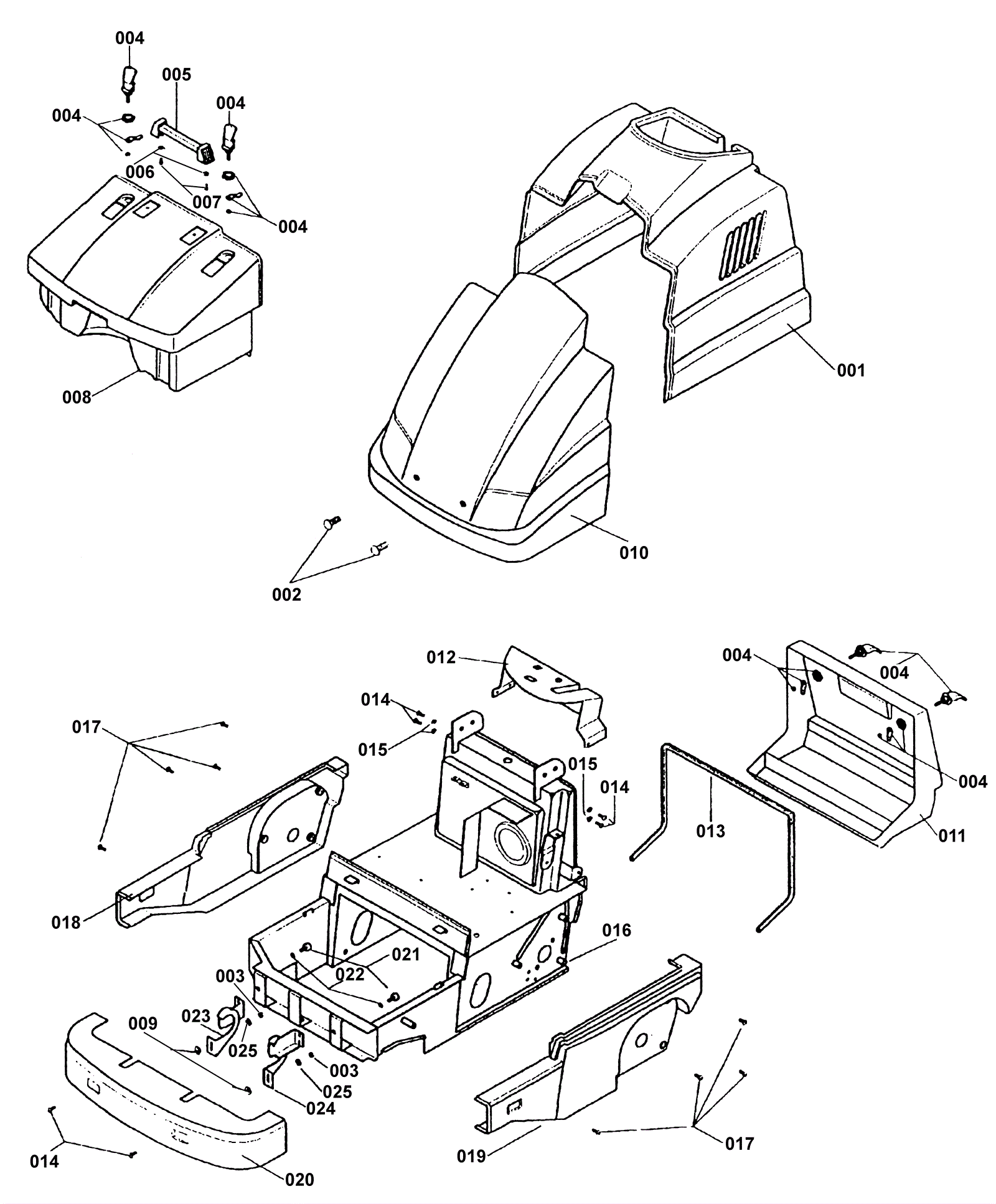

BPS28 Main Frame and Housing Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1858 Upper cover $729.94 1 usually ships 1-5 days
002 203-4217 Fixing screw $30.59 2 usually ships 1-5 days
003 189-1860 Nut M8 block $14.22 2 usually ships 1-5 days
004 189-1861 Locking $103.38 4 usually ships 1-5 days
005 189-1862 Complete handle $27.74 1 usually ships 1-5 days
006 203-1171 Washer 6 x 24 $2.29 2 ships same day
007 189-1864 Screw 6.3x19 $14.22 2 usually ships 1-5 days
008 189-1865 Front drawer $604.25 1 usually ships 1-5 days
009 203-3316 Bushing $17.11 2 usually ships 1-5 days
010 189-1867 Front cover $528.21 1 usually ships 1-5 days
011 189-1868 Back drawer $535.99 1 usually ships 1-5 days
012 189-1869 Dashboard $224.64 1 usually ships 1-5 days
013 203-3121 Back drawer gasket $110.81 1 usually ships 5-15 days
014 189-1871 Screw 8x16 $6.60 6 usually ships 1-5 days
015 189-1872 Washer 8 x 17 $24.09 4 usually ships 1-5 days
016 375-9173 Mach frame $1,591.88 1 usually ships 5-15 days
017 189-1874 Screw 8x10 $4.77 8 usually ships 1-5 days
018 189-1875 Right side casing $305.40 1 usually ships 1-5 days
019 189-1876 Left side casing $305.40 1 usually ships 1-5 days
020 189-1877 Front casing $197.10 1 usually ships 1-5 days
021 189-1878 Foot 20x9 6mmx18 $72.84 2 usually ships 1-5 days
022 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
023 189-1879 Right hinge $233.50 1 usually ships 1-5 days
024 189-1880 Left hinge $233.50 1 usually ships 1-5 days
025 189-1881 Bushing $17.11 1 usually ships 1-5 days
N/S 162-0011 12V 105Ah wet battery (SNSR) $291.50 1 ships same day
N/S 162-0042 12V 115Ah AGM battery (Group 31) $500.50 1 ships same day
