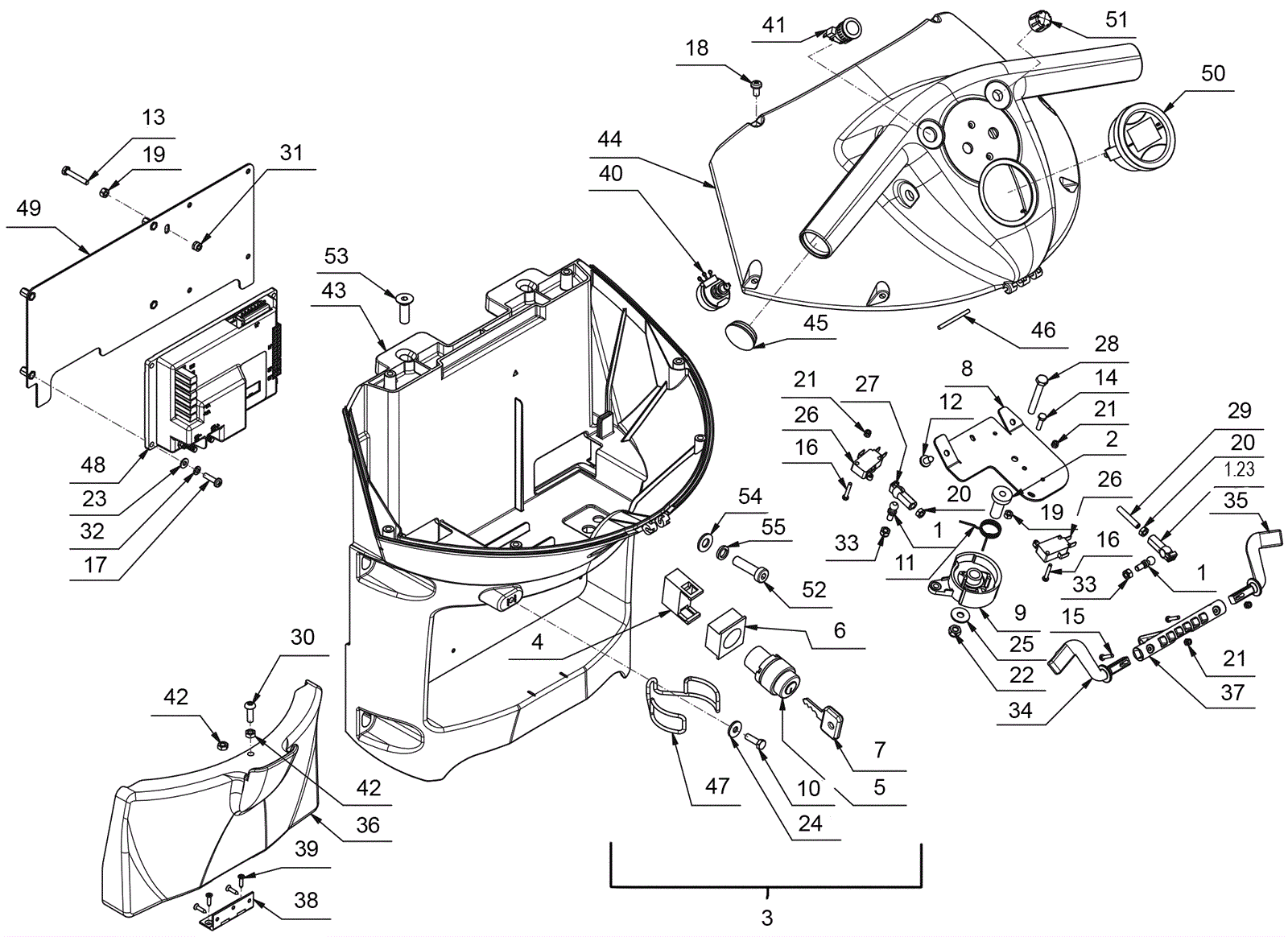

Handlebar Assembly

#PartDescription ReqNotesAvailability
1 189-6347 Pin 2
2 189-4704 Bushing 1
3 189-6341 Key switch assembly with keys 1 (includes 4-7)
4 189-6342 Key switch contact 1
5 189-7549 Key switch 1
6 189-6343 Switch flange 1
7 189-2658 Key 1
8 189-4705 Electrical panel plate 1
9 189-6346 Cam 1
10 999-1618 Bolt M5-.8 x 16mm hex head stainless steel 1
11 189-6353 Torsion spring 1
12 206-0656 Screw (OBSOLETE) 2
13 189-4706 Screw M4 1
14 999-9106 Screw M4-.7 x 16mm hex head stainless steel 1
15 189-4707 Bolt M3 x 16mm 2
16 999-1431 Screw M3-.5 x 20mm pan head zinc plated 4
17 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel 4
18 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 6
19 999-1619 Nut M4 hex stainless steel 2
20 999-0740 Nut M5-.8 hex stainless steel 2
21 999-1161 Nut M3-.5 hex nylock stainless steel 6
22 189-5094 Nut M6 1
23 189-4708 Washer M4 4
25 189-4697 Washer M6 x 18mm flat 1
26 189-6349 Microswitch 2
27 189-6348 Ball stud receiver 2
28 999-0781 Screw M6-1 x 45mm hex head 1
29 189-6352 Set screw 1
30 189-6333 Screw M5 x 16mm button head socket stainless steel 1
31 189-4709 Nut 1
32 189-4710 Washer 4
33 189-8730 Nut M5 x 7mm hex nylock zinc 2
34 189-6355 Left switch lever 1
35 189-6356 Right switch lever 1
36 189-6358 Door 1
37 189-6354 Switch cam 1
38 189-6357 Hinge 1
39 189-6332 Screw M3 x 12mm chip board zinc 4
40 189-6367 Potentiometer 1
41 189-4711 Push button 1
42 189-4712 Nut 2
43 189-4713 Lower handle bar 1
44 189-4714 Upper handle bar 1
45 189-4715 Handle bar cap 2
46 189-4716 Hinge pin 1
47 189-4718 Hose clip 1
48 189-4717 Control card 1
49 189-4719 Plate 1
50 189-4720 Battery discharge indicator 1
51 189-4721 Speed control knob 1
52 999-1621 Screw M8-1.25 x 30mm socket head stainless steel 4
53 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel 2
54 999-1267 Washer M8 flat zinc 4
55 189-9124 Washer M8 lock zinc 4
N/S 189-3214 Battery cable with 80amp fuse 1
