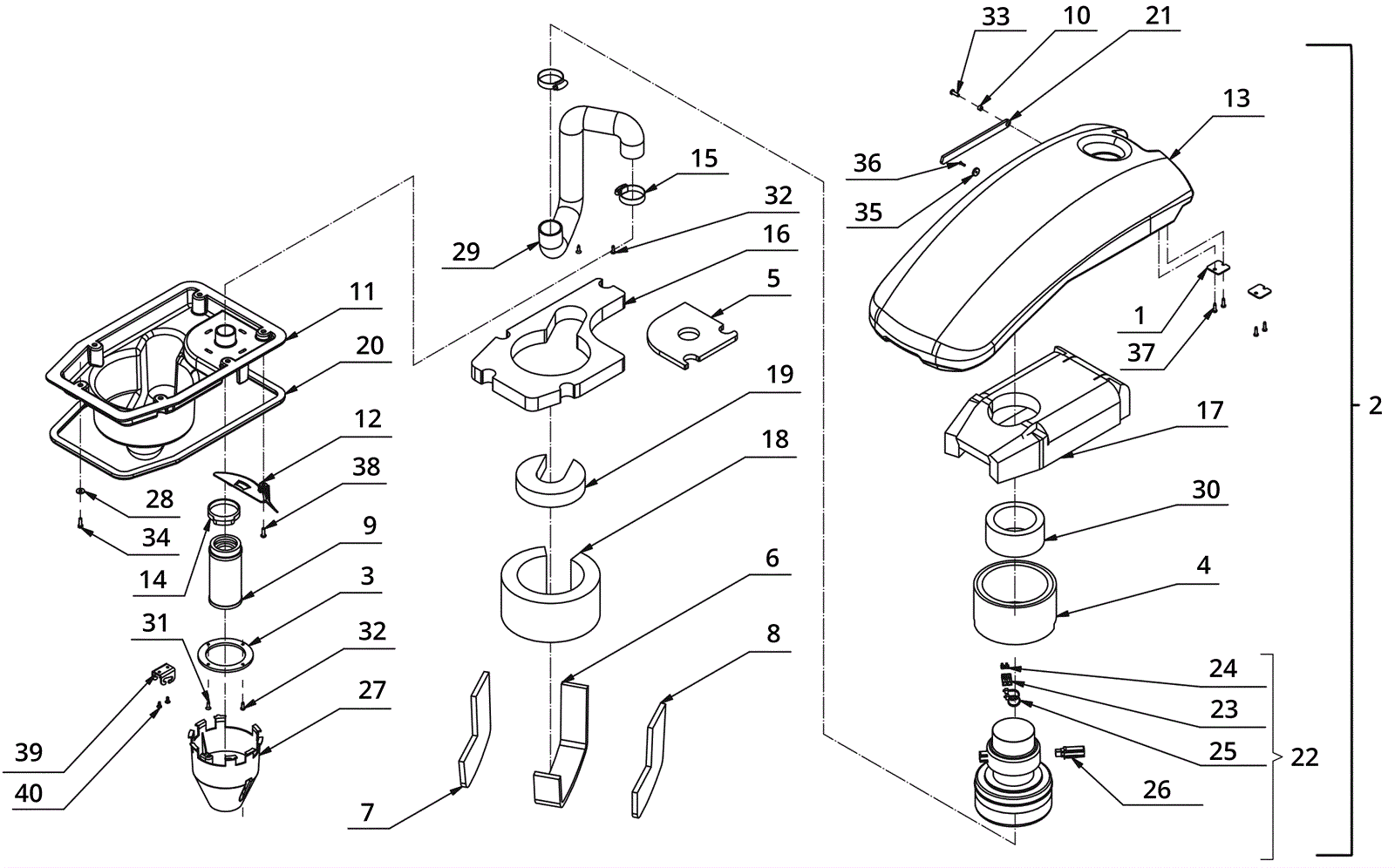

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-6303
|
Plate |
2 |
|
|
2 |
189-6304
|
Recovery tank cover assembly |
1 |
(includes 3-36) |
|
3 |
189-6305
|
Mounting ring |
1 |
|
|
4 |
189-6306
|
Sound deadening foam |
1 |
|
|
5 |
189-6307
|
Sound deadening foam |
1 |
|
|
6 |
189-6308
|
Sound deadening foam |
1 |
|
|
7 |
189-6309
|
Sound deadening foam |
1 |
|
|
8 |
189-6310
|
Sound deadening foam |
1 |
|
|
9 |
189-6311
|
Filter cage |
1 |
|
|
10 |
189-6312
|
Bushing |
1 |
|
|
11 |
189-6313
|
Vacuum motor cover |
1 |
|
|
12 |
189-6314
|
Deflector |
1 |
|
|
13 |
189-6315
|
Recovery tank cover |
1 |
|
|
14 |
189-9057
|
Hose clamp |
1 |
|
|
15 |
189-6316
|
Hose clamp |
2 |
|
|
16 |
189-6317
|
Sound deadening foam |
1 |
|
|
17 |
189-6318
|
Sound deadening foam |
1 |
|
|
18 |
189-6319
|
Sound deadening foam |
1 |
|
|
19 |
189-6320
|
Sound deadening foam |
1 |
|
|
20 |
189-6321
|
Gasket |
1 |
|
|
21 |
189-6322
|
Support bracket |
1 |
|
|
22 |
289-0081
|
24V vacuum motor |
1 |
(includes 23-26) |
|
23 |
189-6323
|
30amp electrical housing connector |
2 |
|
|
25 |
189-6325
|
Wire tie |
2 |
|
|
26 |
189-4703
|
Carbon brush |
2 |
|
|
27 |
189-6327
|
Vacuum splash guard |
1 |
|
|
28 |
999-9100
|
Washer M5 flat stainless steel |
5 |
|
|
29 |
189-6328
|
Vacuum hose |
1 |
|
|
30 |
189-6329
|
Sound deadening foam |
1 |
|
|
31 |
189-6278
|
Screw M4.2-.7 x 16mm pan head self tapping zinc plated |
2 |
|
|
32 |
189-6237
|
Screw M4 x 15mm flat |
2 |
|
|
33 |
189-6330
|
Screw M5-.8 x 16mm button head socket zinc plated |
1 |
|
|
34 |
999-1618
|
Bolt M5-.8 x 16mm hex head stainless steel |
5 |
|
|
35 |
189-6331
|
Magnet |
1 |
|
|
36 |
189-6332
|
Screw M3 x 12mm chip board zinc |
1 |
|
|
37 |
189-8727
|
Screw M4-.2 x 16mm pan head phillips sefl tapping ss |
4 |
|
|
38 |
189-6333
|
Screw M5 x 16mm button head socket stainless steel |
1 |
|
|
39 |
189-6334
|
Vacuum lid bale hook |
1 |
|
|
40 |
189-6335
|
Screw M4 x 10mm |
2 |
|
|
