| # | Part | Description |
Req | Notes | Availability |
|---|

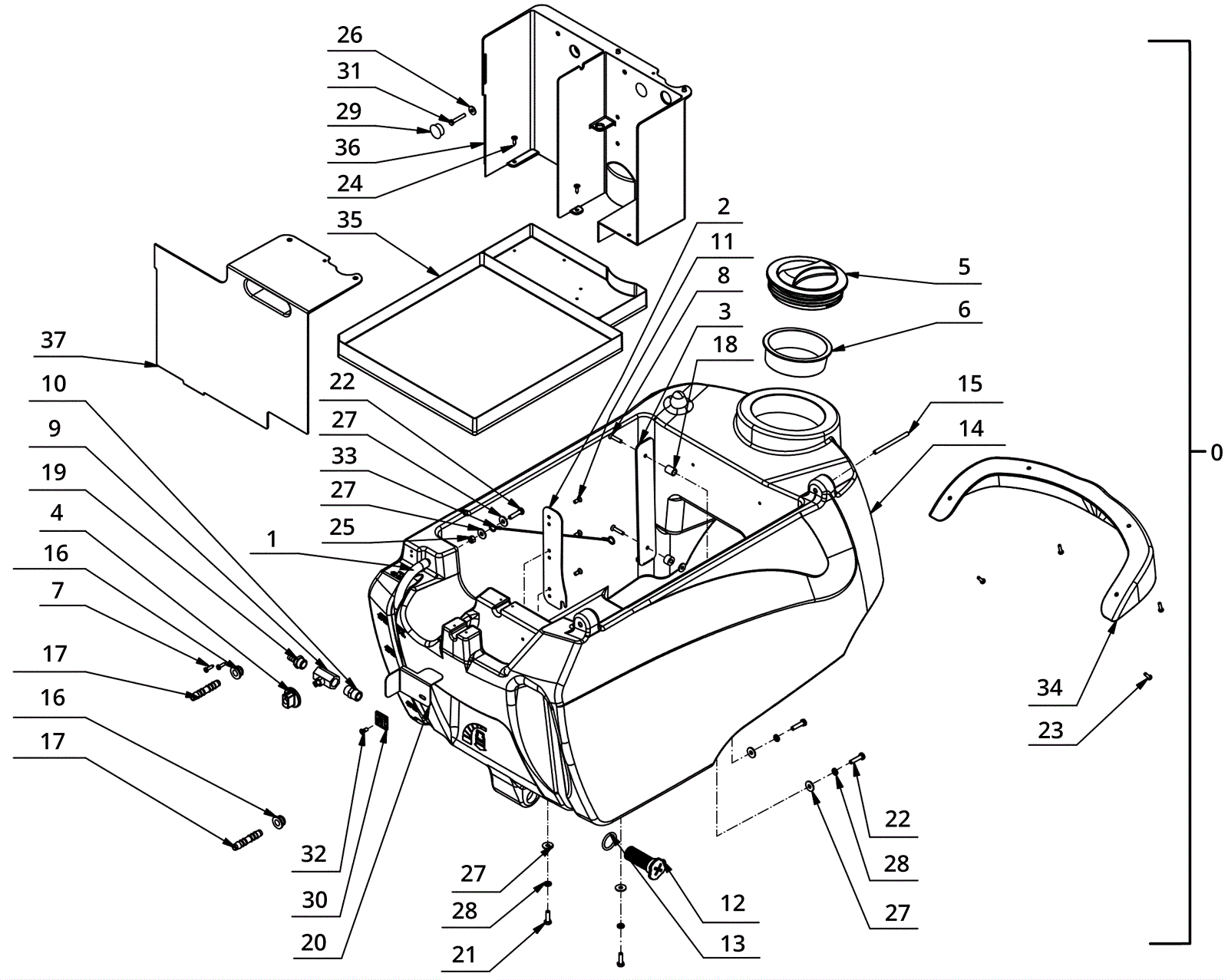

0 |
189-6261
|
Solution tank assembly |
1 |
(includes 1-37) |
|
1 |
189-6262
|
Reinforced hose |
1 |
|
|
2 |
189-6263
|
Foot pedal latch plate |
1 |
|
|
3 |
189-6264
|
Guard plate |
1 |
|
|
4 |
189-6265
|
Knob |
1 |
|
|
5 |
189-6266
|
Cap |
1 |
|
|
6 |
189-6267
|
Filter |
1 |
|
|
7 |
189-8727
|
Screw M4-.2 x 16mm pan head phillips sefl tapping ss |
2 |
|
|
8 |
999-1615
|
Screw M5-.8 x 25mm flat head socket stainless steel |
2 |
|
|
9 |
189-7634
|
3/8 double female ball valve |
1 |
|
|
10 |
189-4860
|
3/8 inch double male fitting |
1 |
|
|
11 |
999-1274
|
Screw M5-.8 x 12mm flat head phillips stainless steel |
3 |
|
|
13 |
189-6270
|
O-ring |
1 |
|
|
14 |
189-6271
|
Solution tank (gray) |
1 |
|
|
15 |
189-6272
|
Hinge pin (OBSOLETE) |
1 |
|
|
16 |
189-6273
|
Grommet |
2 |
|
|
17 |
189-6274
|
Barbed fitting |
2 |
|
|
18 |
189-6275
|
Spacer |
1 |
|
|
19 |
189-6276
|
Barbed fitting |
1 |
|
|
20 |
189-6277
|
Bracket |
1 |
|
|
22 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
3 |
|
|
23 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
4 |
|
|
24 |
189-6278
|
Screw M4.2-.7 x 16mm pan head self tapping zinc plated |
5 |
|
|
25 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
|
27 |
999-1261
|
Washer M6 flat stainless steel |
6 |
|
|
29 |
189-6279
|
Bolt cover |
2 |
|
|
30 |
206-0567
|
Support plate (OBSOLETE) |
1 |
|
|
31 |
999-1616
|
Bolt M5-.8 x 30mm hex head stainless steel |
2 |
|
|
32 |
999-1274
|
Screw M5-.8 x 12mm flat head phillips stainless steel |
1 |
|
|
33 |
189-6280
|
Lanyard |
1 |
|
|
34 |
189-6281
|
Bezel |
1 |
|
|
35 |
189-6282
|
Battery tray |
1 |
|
|
36 |
189-6283
|
Plastic housing |
1 |
|
|
37 |
189-6284
|
Plastic housing cover |
1 |
|
|
N/S |
999-9100
|
Washer M5 flat stainless steel |
1 |
(included with 0) |
|
N/S |
189-6268
|
Hose clamp |
1 |
(included with 0) |
|
N/S |
189-6269
|
Spacer |
1 |
(included with 0) |
|
