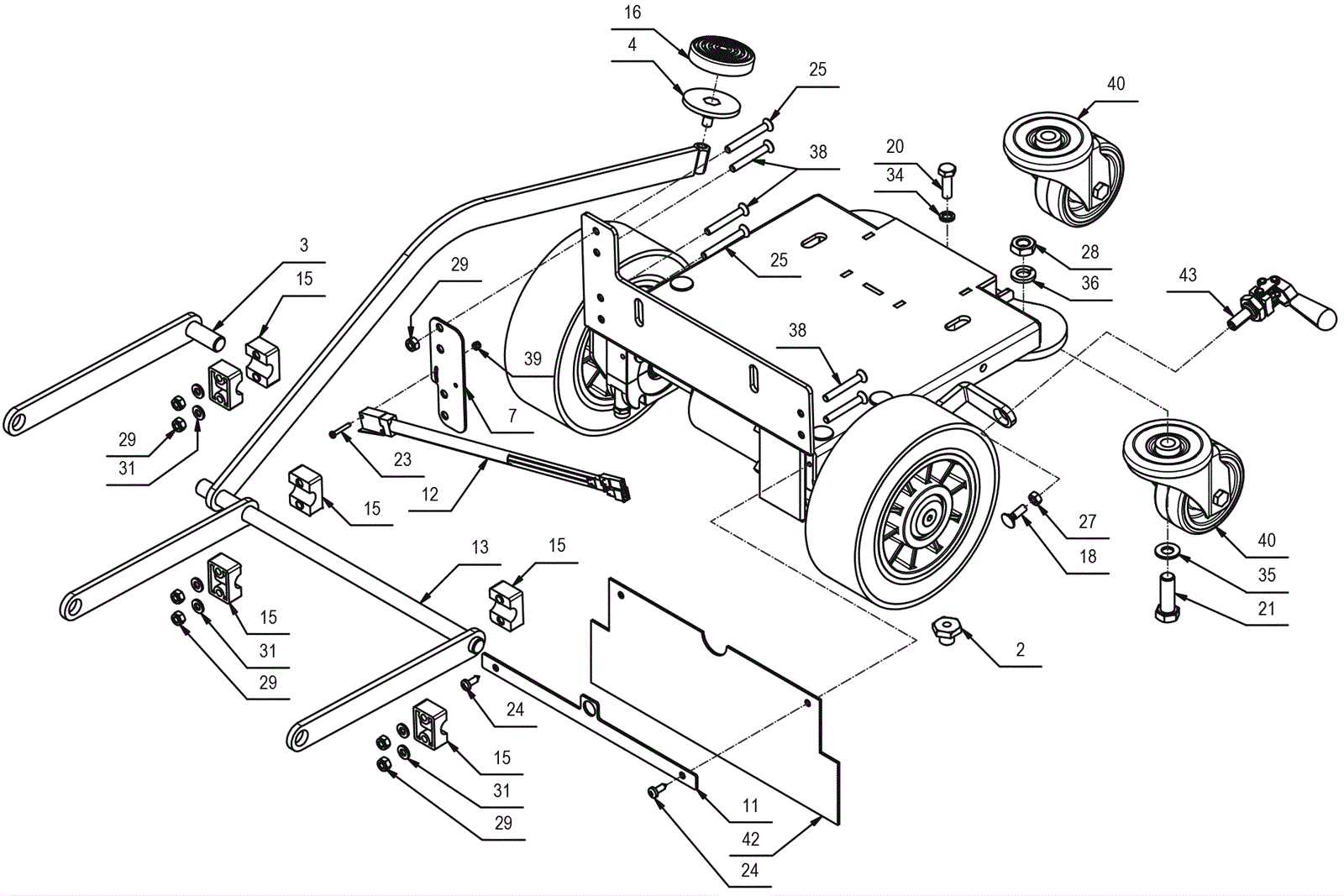

Main Frame Assembly

#PartDescription ReqNotesAvailability
1 189-4688 Bushing 4
3 189-6246 Brush deck lift idler arm weldment 1
4 189-6247 Foot pedal 1
5 189-4504 Bearing mount base 2
6 189-4505 Bearing mount cap (OBSOLETE) 2
7 189-6255 Switch plate 1
8 189-4689 Shim plate 2
9 189-4691 Right hand axle shaft 1
10 189-4692 Left hand axle shaft 1
11 189-4694 Clamp plate 1
12 189-6257 Microswitch 1
13 189-6245 Brush deck lift arm weldment 1
14a 189-4373 24V drive motor 1
14b 189-4687 Carbon brush 2
15 189-6241 Pivot block 6
16 206-0545 Pedal cover (OBSOLETE) 1
17 189-8647 Bearing 2
18 999-1614 Bolt M6-1 x 20mm carriage head stainless steel 1
19 999-1147 Bolt M6-1 x 40mm hex head stainless steel 4
20 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 1
21 999-0504 Bolt M12-1.75 x 35mm hex hd stainless steel full thread 2
22 999-1300 Screw M6-1 x 25mm socket head stainless steel 2
23 999-1431 Screw M3-.5 x 20mm pan head zinc plated 2
24 189-9042 Screw M4 x 16mm pan head phillips stainless steel 2
25 999-1612 Screw M6-1 x 50mm flat head socket stainless steel 2
26 189-4696 Screw M8 x 30mm 2
27 189-9083 Nut M6 x 5 hex 1
28 999-1377 Nut M12-1.75 hex jam 2
29 189-5094 Nut M6 10
30 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
31 999-6714 Washer M6 x 12mm flat stainless steel 10
32 189-4697 Washer M6 x 18mm flat 2
34 189-9124 Washer M8 lock zinc 1
35 999-9099 Washer M10 flat stainless steel 2
36 999-1115 Washer M4 flat zinc plated 2
37 189-4699 Bearing washer 2
38 999-1336 Screw M6-1 x 45mm socket head 4
39 999-1161 Nut M3-.5 hex nylock stainless steel 2
40 189-6242 Caster wheel 2
41 189-4690 Bolt M8 x 100mm carriage 4
42 189-6253 Splash guard 1
43 189-6259 Parking brake 1
44 189-4700 Wheel 2
45 189-4701 Spacer 2
