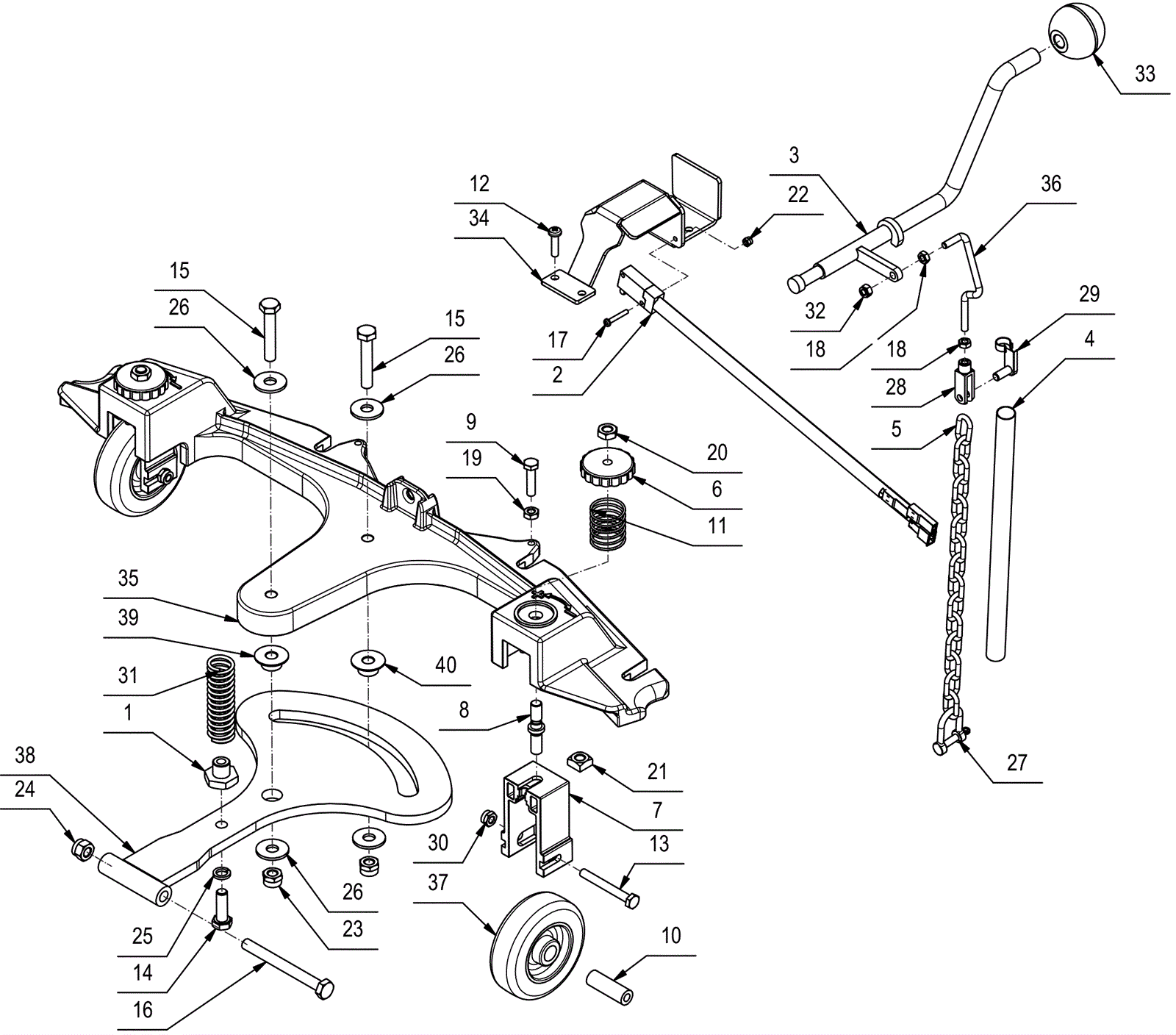

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
189-6224
|
Microswitch |
1 |
|
|
3 |
189-6236
|
Squeegee lever |
1 |
|
|
4 |
189-4667
|
Sheath |
1 |
|
|
5 |
189-4668
|
Squeegee lift chain |
1 |
|
|
6 |
189-6202
|
Knob |
2 |
|
|
7 |
189-4669
|
Squeegee wheel support |
2 |
|
|
8 |
189-4670
|
Threaded adjuster rod |
2 |
|
|
9 |
999-0518
|
Bolt M6-1 x 25mm hex head full thread zinc |
1 |
|
|
10 |
189-4671
|
Bushing |
2 |
|
|
11 |
189-4390
|
Spring |
2 |
|
|
13 |
250-1275
|
Screw M6 x 50mm |
2 |
|
|
14 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
1 |
|
|
15 |
189-4673
|
Bolt M8 x 45mm hex |
2 |
|
|
16 |
189-4674
|
Bolt M8 x 80mm hex |
1 |
|
|
17 |
999-1431
|
Screw M3-.5 x 20mm pan head zinc plated |
2 |
|
|
18 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
|
|
19 |
189-4675
|
Nut M6 x 4mm hex |
1 |
|
|
20 |
189-6214
|
Nut M8 |
2 |
|
|
21 |
189-4676
|
Nut M8 |
2 |
|
|
22 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
24 |
189-4677
|
Nut M8 nylock |
1 |
|
|
25 |
189-9124
|
Washer M8 lock zinc |
1 |
|
|
26 |
189-4451
|
Washer M9 |
4 |
|
|
27 |
189-4678
|
Split pin |
1 |
|
|
28 |
189-4679
|
Fork |
1 |
|
|
29 |
189-4549
|
Clip |
1 |
|
|
30 |
189-1536
|
Nut with nylon ring |
2 |
|
|
31 |
189-9067
|
Spring |
1 |
|
|
32 |
189-8730
|
Nut M5 x 7mm hex nylock zinc |
1 |
|
|
33 |
189-6239
|
Knob |
1 |
|
|
34 |
189-4686
|
Cam guard |
1 |
|
|
35 |
189-4680
|
Squeegee carriage |
1 |
|
|
36 |
189-4681
|
Lift coupling |
1 |
|
|
37 |
189-4682
|
Squeegee support wheel |
2 |
|
|
38 |
189-4683
|
Pivot plate |
1 |
|
|
39 |
189-4684
|
Spacer |
1 |
|
|
40 |
189-4685
|
Spacer |
1 |
|
|
