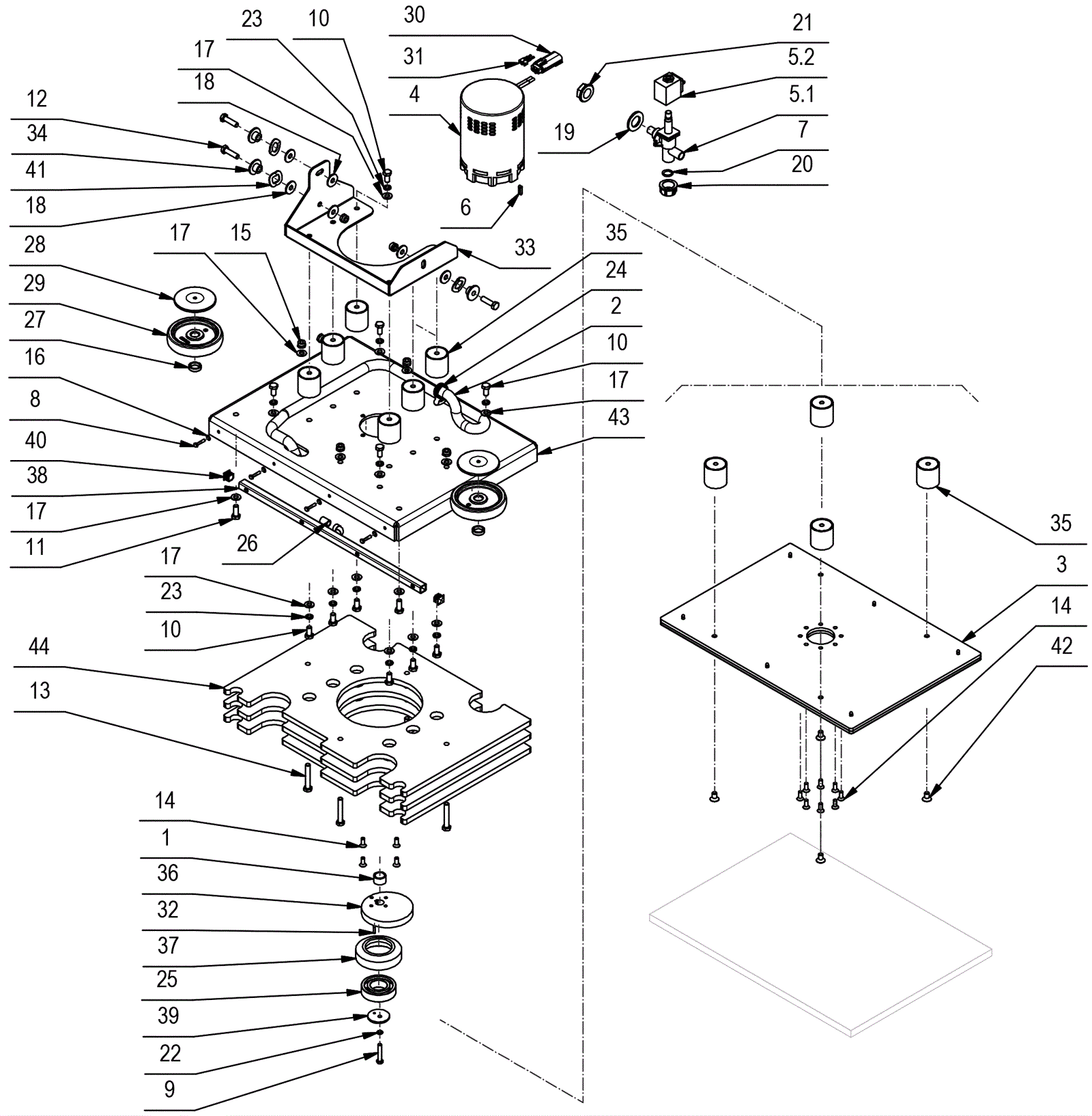

Orbital Deck Drive Assembly

#PartDescription ReqNotesAvailability
1 189-2663 Spacer 22 x 17 x 13 1
2 189-7728 Pipe 1
3 189-2664 Pad driver 14 x 20 inch 1
4 189-2665 24V brush motor 1
5a 189-7576 Solenoid valve 1
5b 189-7627 Solenoid valve body 1
5c 189-7626 Solenoid 1
6 189-2666 Shaft key 1
7 189-6380 O-ring 1
8 189-2667 Screw M4 x 20mm 4
9 189-2668 Screw 1
10 189-2669 Bolt M8 x 16mm hex head zinc 16
11 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
12 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 3
13 189-9248 Bolt M8 x 50mm hex head zinc 4
14 189-2670 Screw M6 x 16mm flat head 12
15 999-0471 Nut M8-1.25 nylon insert lock zinc plated 7
16 189-2671 Washer M4 x 10mm flat stainless steel 4
17 999-1267 Washer M8 flat zinc 22
18 189-6198 Flat washer 6
19 189-4452 Washer 1
20 189-6379 Cap 1
21 189-4454 Ring nut 1
22 999-1117 Washer M6 split lock stainless steel 1
23 189-9124 Washer M8 lock zinc 16
24 189-9332 Hose clamp 2
25 189-2672 Bearing 1
26 189-6275 Spacer 1
27 189-2673 Spacer 22 x 17.3 x 6 2
28 189-4460 Wheel cover 2
29 189-4484 Bumper wheel 2
30 189-4445 Female connector 1
31 189-4650 Molex pin 2
32 189-2674 Spring pin 1
33 189-2675 Support 1
34 189-2676 Bushing 3
35 189-2677 Isolator 10
36 189-2678 Eccentric 1
37 189-2679 Bearing retainer 1
38 189-2680 Distributor 1
39 189-2681 Washer 1
40 189-2682 Cap 2
41 189-2683 Washer 3
42 189-2684 Screw M8 x 14mm 4
43 189-6362 Base 1
44 189-5430 Weight 3
