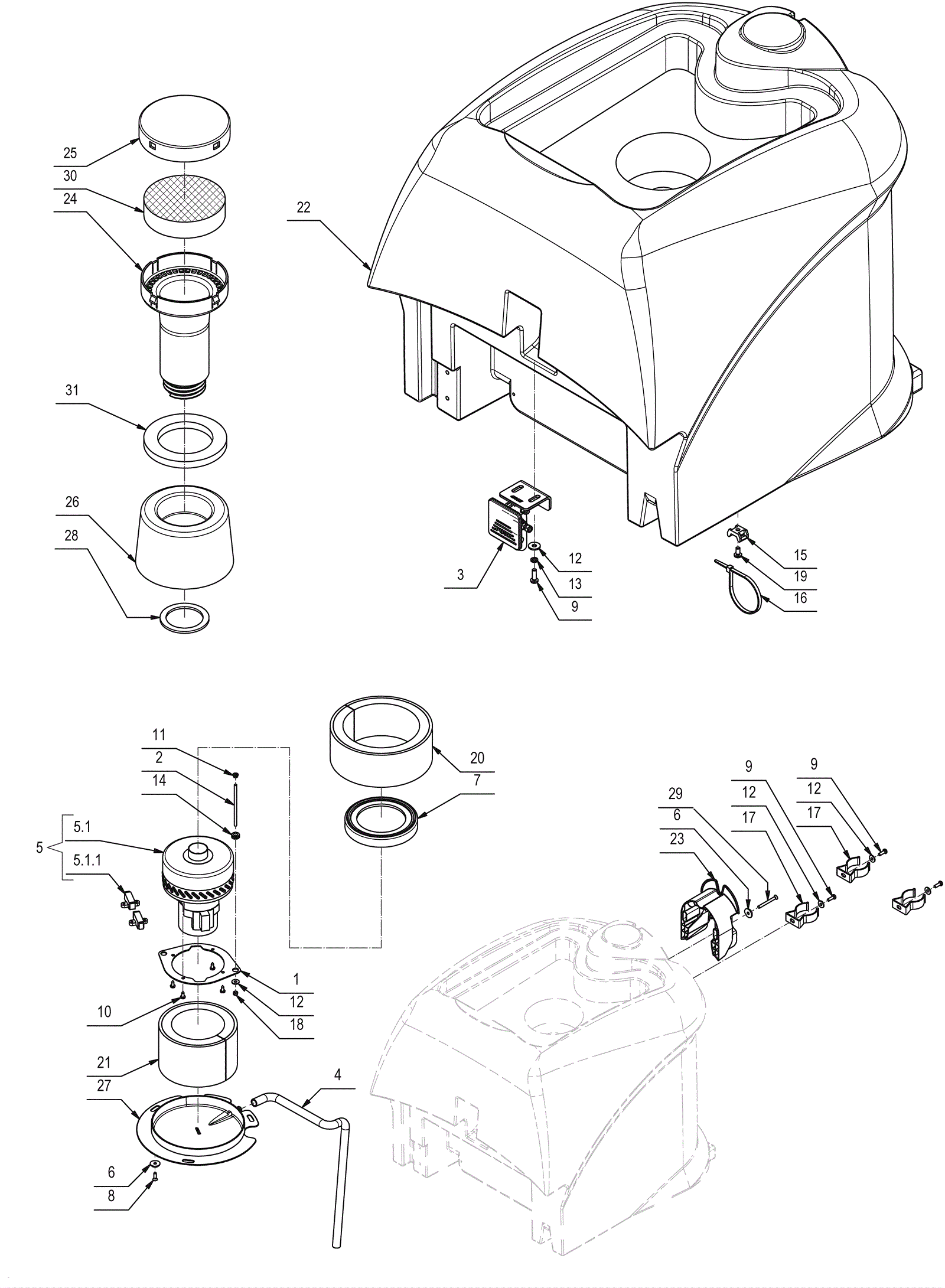

STEALTH DRS21BT Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-4610 Motor plaque $20.48 1 usually ships 14-27 days
2 189-4611 Connecting rod $39.19 2 usually ships 14-27 days
3 189-4612 Hook assembly $671.09 1 usually ships 14-27 days
4 189-4613 Tubing $37.29 1 usually ships 14-27 days
5a 189-7628 Vacuum motor $862.71 1 usually ships 14-27 days
5b 189-7628 Vacuum motor $862.71 1 usually ships 14-27 days
5c 189-6326 Carbon brush $24.51 1 usually ships 1-5 days
6 189-9156 Washer M5 x 20mm flat stainless steel $12.84 5 usually ships 14-27 days
7 189-5206 Vacuum motor shroud $11.17 1 usually ships 14-27 days
8 189-7625 Screw M5 x 16 oval head phillips zinc $2.38 3 usually ships 14-27 days
9 189-4515 Washer $12.84 5 usually ships 14-27 days
10 189-4516 Screw M4.8 x 13mm $12.84 4 usually ships 14-27 days
11 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
12 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. $4.58 7 ships same day
13 189-9122 Lock washer $2.38 2 usually ships 1-5 days
14 189-4614 Bolt $17.41 2 usually ships 14-27 days
15 189-4605 Cable tie holder $17.41 2 usually ships 14-27 days
16 189-4453 Clamp $17.41 2 usually ships 14-27 days
17 189-4606 Hose clip $11.17 3 usually ships 14-27 days
18 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
19 283-2255 SCREW M5x10 TC T.C.ZNT UNI 7687(4.8)Z $2.99 2 usually ships 26-37 days
20 189-4615 Sound deadening foam $43.89 1 usually ships 14-27 days
21 189-4616 Sound deadening foam $43.89 1 usually ships 14-27 days
22 189-4584 Recovery tank assembly $3,274.95 1 usually ships 14-27 days
23 189-4617 Drain hose hook $58.33 1 usually ships 14-27 days
24 N/A Not available Call for price 1 (Must purchase parts individually) (189-7661, 189-7662, 189-7663 and 189-7664) usually ships 3-26 days
25 N/A Not available Call for price 1 (Must purchase parts individually) (189-7661, 189-7662, 189-7663 and 189-7664) usually ships 3-26 days
26 189-5209 Shut off float cup $53.27 1 usually ships 14-27 days
27 189-4618 Vacuum motor cover $73.50 1 usually ships 14-27 days
28 189-4619 Gasket $26.68 1 usually ships 14-27 days
29 189-4620 Screw $12.79 2 usually ships 14-27 days
30 189-5192 Filter $30.45 1 usually ships 14-27 days
31 189-4621 Shut off float gasket $13.01 1 usually ships 14-27 days
