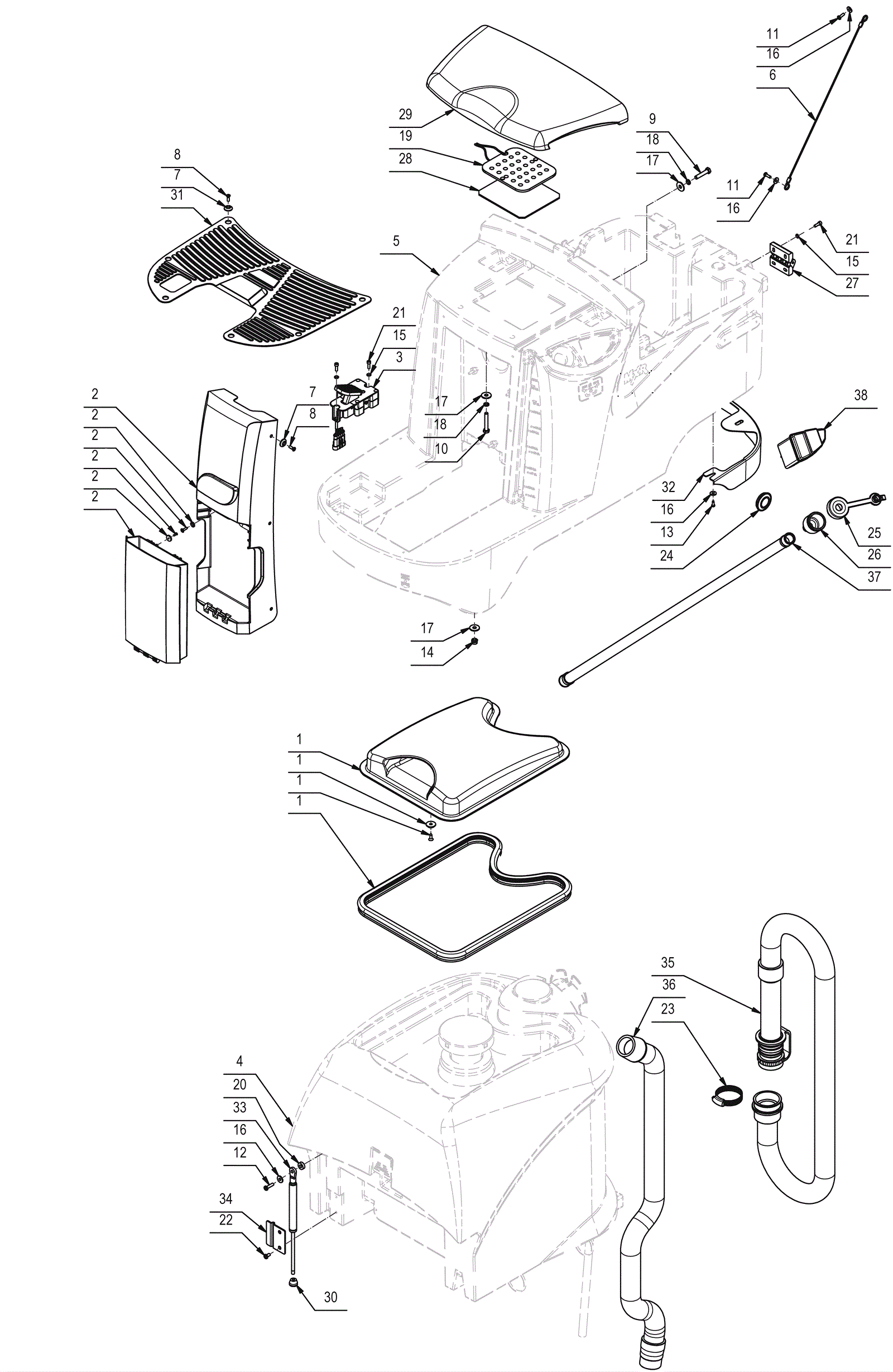

STEALTH DRS21BT Exterior Components Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-4578 54 inch recovery lid gasket $79.95 1 usually ships 14-27 days
3 189-3206 Drive pedal assembly $783.61 1 usually ships 14-27 days
4 189-4584 Recovery tank assembly $3,274.95 1 usually ships 14-27 days
5 189-4585 Solution tank assembly $3,629.87 1 usually ships 14-27 days
6 189-4586 Recovery tank support cable $53.24 1 usually ships 14-27 days
7 189-9156 Washer M5 x 20mm flat stainless steel $12.84 12 usually ships 14-27 days
8 189-7625 Screw M5 x 16 oval head phillips zinc $2.38 12 usually ships 14-27 days
9 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
11 189-4515 Washer $12.84 2 usually ships 14-27 days
12 189-4588 Bolt M5 x 20mm $12.84 1 usually ships 14-27 days
13 999-1623 Screw M4.2 x 13mm pan head self tapping stainless steel $0.99 4 usually ships 1-5 days
14 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 usually ships 12-18 days
15 999-9100 Washer M5 flat stainless steel $5.83 10 ships same day
16 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. $4.58 7 ships same day
17 189-6198 Flat washer $2.38 10 usually ships 14-27 days
18 189-9084 Washer M8 lock zinc $2.18 4 usually ships 1-5 days
19 189-3205 Safety switch $74.38 1 usually ships 14-27 days
20 189-6298 Nylon spacer $6.95 1 usually ships 14-27 days
21 189-4562 Screw M5 x 16mm $12.84 10 usually ships 14-27 days
22 283-2255 SCREW M5x10 TC T.C.ZNT UNI 7687(4.8)Z $2.99 2 usually ships 26-37 days
24 189-8693 Wheel cap $5.50 2 usually ships 1-5 days
25 189-4591 Cap $12.84 1 usually ships 14-27 days
26 189-4592 Fill hose fitting $39.00 1 usually ships 14-27 days
27 189-4593 Hinge $111.76 2 usually ships 14-27 days
28 189-4594 Pad $22.14 1 usually ships 14-27 days
29 189-4595 Seat pad $1,122.69 1 usually ships 14-27 days
30 189-5211 Piston cap $14.36 1 usually ships 14-27 days
31 189-4596 Foot plate $142.53 1 usually ships 14-27 days
32 189-4597 Rear shroud $31.63 1 usually ships 14-27 days
33 189-4598 Shock absorber $198.08 1 usually ships 14-27 days
34 189-4599 Mounting plate $27.20 1 usually ships 14-27 days
35 189-4414 Recovery discharge hose $157.82 1 usually ships 14-27 days
36 189-4600 Vacuum hose $86.41 1 usually ships 14-27 days
37 189-4601 Solution filling hose $107.50 1 usually ships 14-27 days
38 189-4602 Solution cap measuring cup $55.85 1 usually ships 14-27 days
40 189-4581 Screw $12.45 2 usually ships 14-27 days
41 189-6331 Magnet $7.32 2 usually ships 1-5 days
42 189-4582 Steering column cover $251.15 1 usually ships 14-27 days
43 189-4583 Steering column box $104.36 1 usually ships 14-27 days
44 189-9156 Washer M5 x 20mm flat stainless steel $12.84 1 usually ships 14-27 days
45 189-5210 Screw M4.2 x 16mm pan $12.80 1 usually ships 14-27 days
46 189-4580 Recovery tank lid $163.70 1 usually ships 14-27 days
