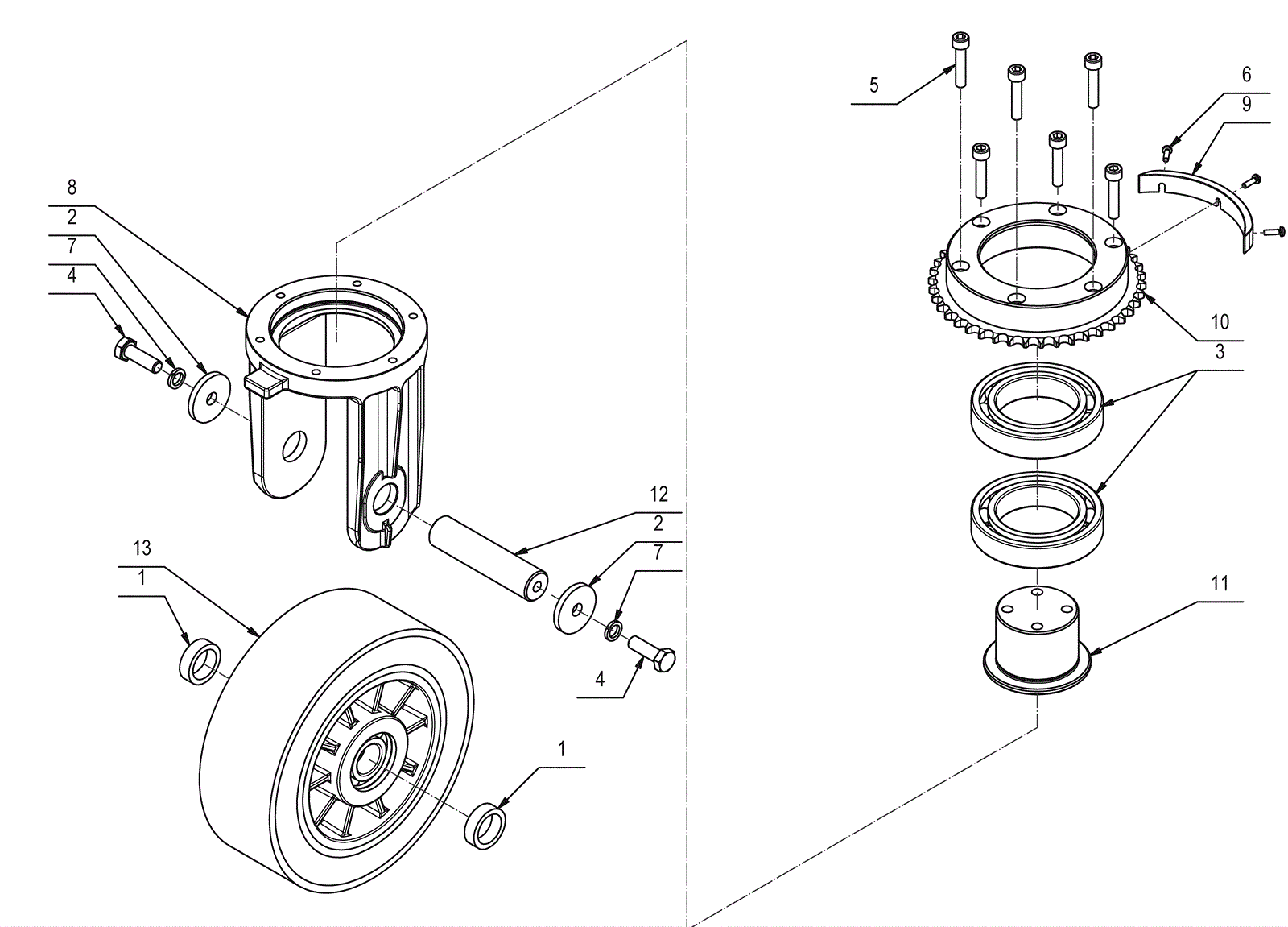

STEALTH DRS21BT Front Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-4572 Spacer $17.41 2 usually ships 14-27 days
2 250-1320 Washer $10.48 2 usually ships 1-5 days
3 189-4573 Bearing $47.19 2 usually ships 14-27 days
4 189-4574 Bolt M6 x 30mm $12.84 2 usually ships 14-27 days
5 189-4512 Screw M6 x 30mm $12.84 6 usually ships 14-27 days
6 189-4575 Screw $12.84 3 usually ships 14-27 days
7 189-4576 Lock washer $12.79 2 usually ships 14-27 days
8 189-5212 Wheel mount $148.26 1 usually ships 14-27 days
9 189-5213 Cam plate $17.27 1 usually ships 14-27 days
10 189-5214 Steering gear $187.41 1 usually ships 14-27 days
11 189-5215 Bearing support $94.13 1 usually ships 14-27 days
12 189-5216 Axle shaft $67.19 1 usually ships 14-27 days
13 189-4577 Front wheel $420.04 1 usually ships 14-27 days
