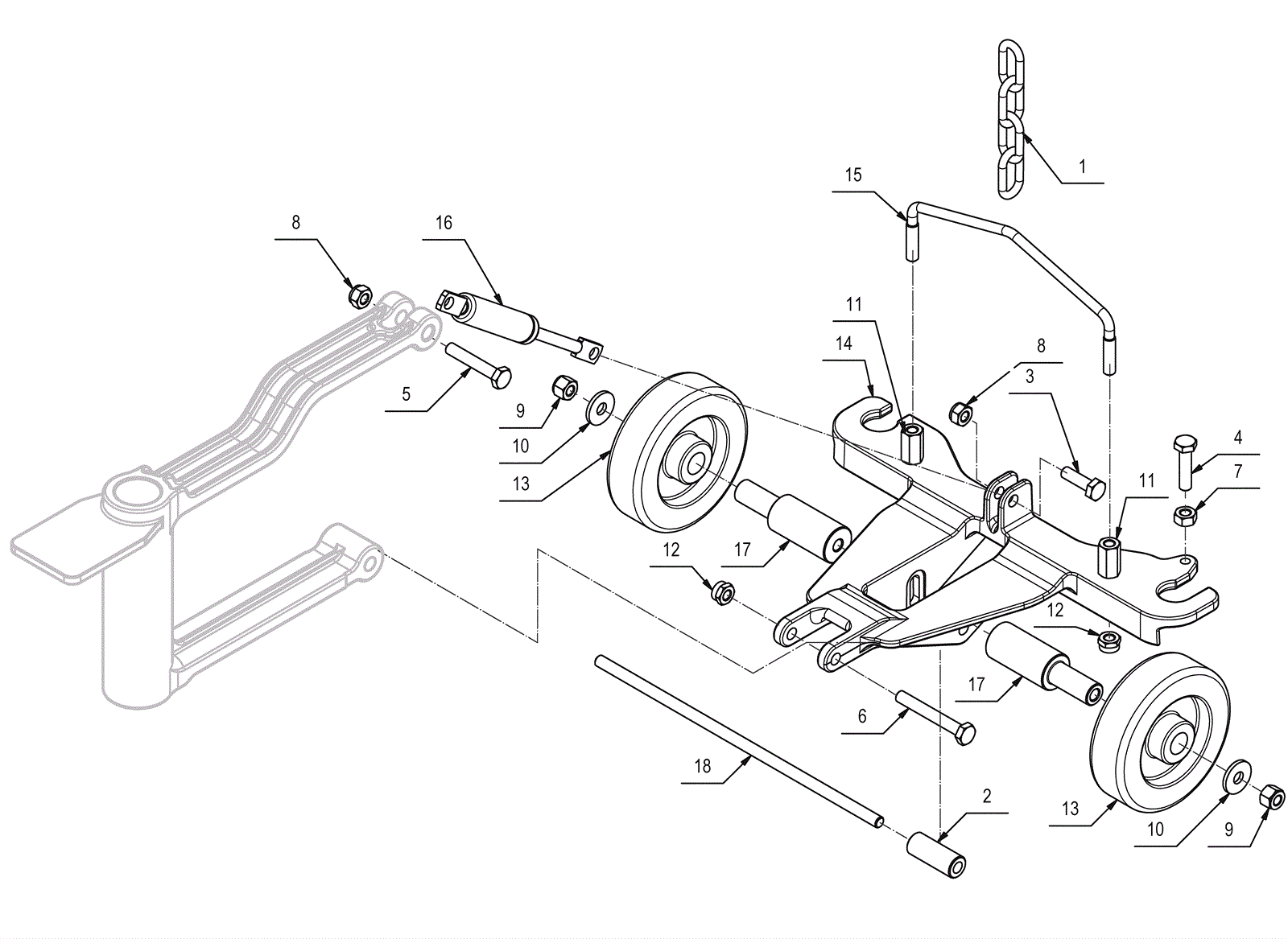

STEALTH DRS21BT Squeegee Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-4490 Lift chain $6.95 1 usually ships 14-27 days
2 189-4491 Bushing $9.43 1 usually ships 14-27 days
3 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 1 usually ships 26-37 days
4 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 1 ships same day
5 189-4492 Bolt M6 $2.38 1 usually ships 14-27 days
6 189-4493 Screw $5.50 1 usually ships 14-27 days
7 250-1276 Nut $2.38 1 usually ships 14-27 days
8 189-5094 Nut M6 $2.38 2 usually ships 14-27 days
9 189-4495 Nut $17.41 2 usually ships 14-27 days
10 189-4450 Washer $12.84 2 usually ships 14-27 days
11 189-4496 Nut $36.38 2 usually ships 14-27 days
12 189-1536 Nut with nylon ring $1.98 3 usually ships 5-9 days
13 189-7606 Wheel $18.62 2 usually ships 14-27 days
14 189-5202 Squeegee carriage $119.11 1 usually ships 14-27 days
15 189-4498 Carriage lift arm $79.44 1 usually ships 14-27 days
16 189-4499 Pressure cylinder $145.01 1 usually ships 14-27 days
17 189-4500 Axle bushing $138.71 2 usually ships 14-27 days
18 189-4501 Axle $106.48 1 usually ships 14-27 days
