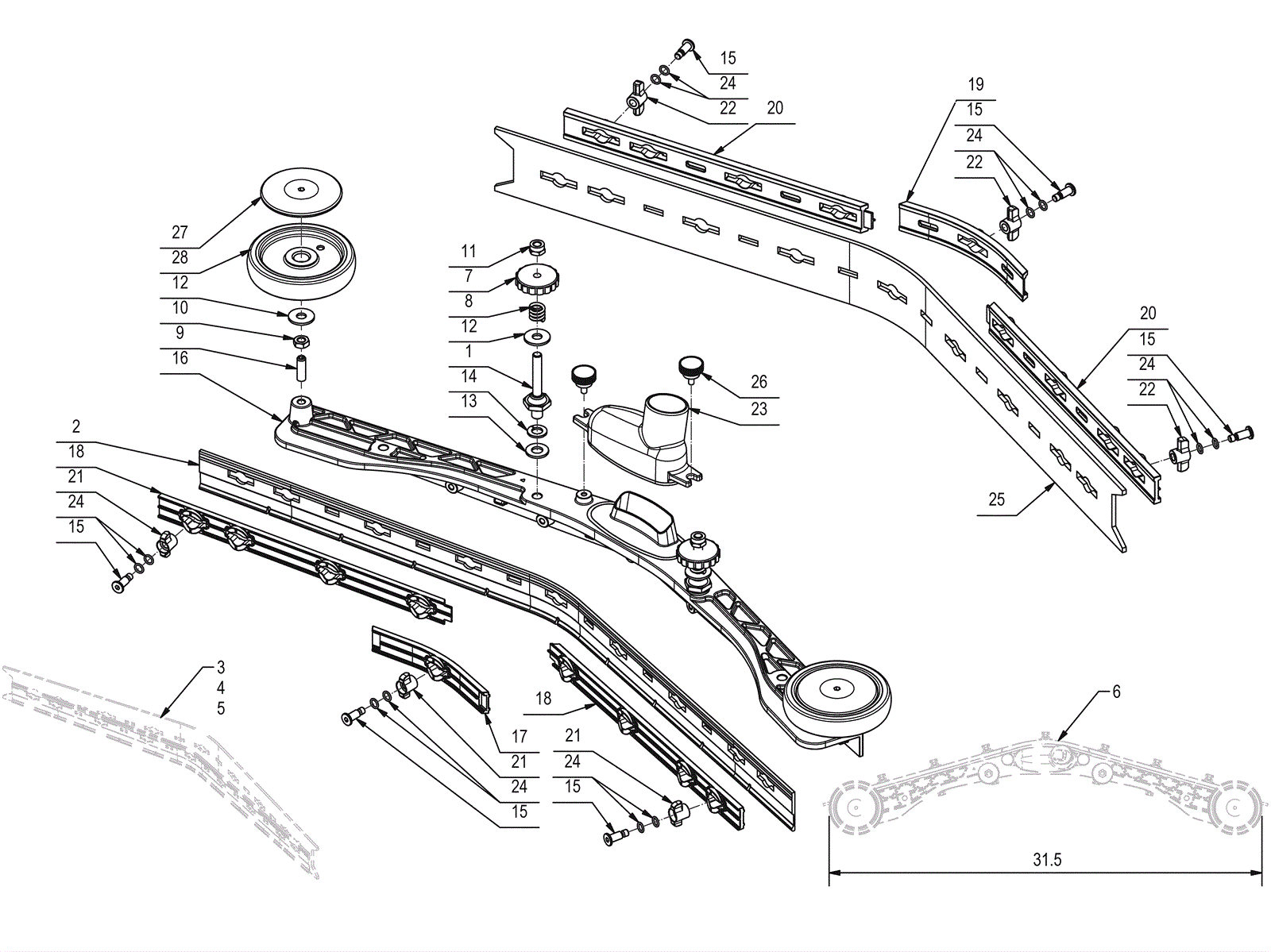

STEALTH DRS21BT Squeegee Assembly - 31.5 inch - OPTIONAL

#PartDescriptionPriceReqNotesAvailability
1 189-5188 Stud bolt $44.35 2 usually ships 14-27 days
2 189-3207 Squeegee blade kit 31 inch (OBSOLETE) $125.93 1 usually ships 14-27 days
4 189-4485 31 1/2 inch polyurethane squeegee blade kit $273.35 1 ships same day
5 189-4486 31 1/2 inch squeegee blade kit latex $287.19 1 usually ships 14-27 days
6 189-4487 31 1/2 inch squeegee assembly $730.53 1 usually ships 14-27 days
7 189-6202 Knob $7.48 2 usually ships 14-27 days
8 189-9181 Spring $7.48 2 usually ships 14-27 days
9 189-4474 Pin $5.50 2 usually ships 14-27 days
10 189-6214 Nut M8 $2.38 2 usually ships 14-27 days
11 283-1737 NUT M8 AUTOBL. UNI 7474 INOX LOW $4.58 2 usually ships 26-37 days
12 189-4451 Washer M9 $12.84 4 usually ships 14-27 days
13 999-9099 Washer M10 flat stainless steel $0.99 2 ships same day
14 189-4475 Washer $2.38 2 usually ships 14-27 days
15 189-4476 Screw $14.85 18 usually ships 14-27 days
16 189-6392 Squeegee weldment $370.17 1 usually ships 14-27 days
17 189-7603 Front center blade clamp $26.10 1 usually ships 14-27 days
18 189-4488 Front squeegee blade clamp $55.28 2 usually ships 14-27 days
19 189-7604 Rear center blade clamp $26.10 1 usually ships 14-27 days
20 189-4489 Rear squeegee blade clamp $48.76 2 usually ships 14-27 days
21 189-4480 Wing nut knob $5.50 9 usually ships 14-27 days
22 189-7608 Wing nut $5.50 9 usually ships 14-27 days
23 189-4481 Squeegee shoe adapter $89.02 1 usually ships 14-27 days
24 189-4482 O-ring $2.38 36 usually ships 14-27 days
25 189-3207 Squeegee blade kit 31 inch (OBSOLETE) $125.93 1 usually ships 14-27 days
26 189-4483 Thumb screw $27.89 2 usually ships 14-27 days
27 189-4460 Wheel cover $39.08 2 usually ships 14-27 days
28 189-4484 Bumper wheel $67.01 2 usually ships 14-27 days
