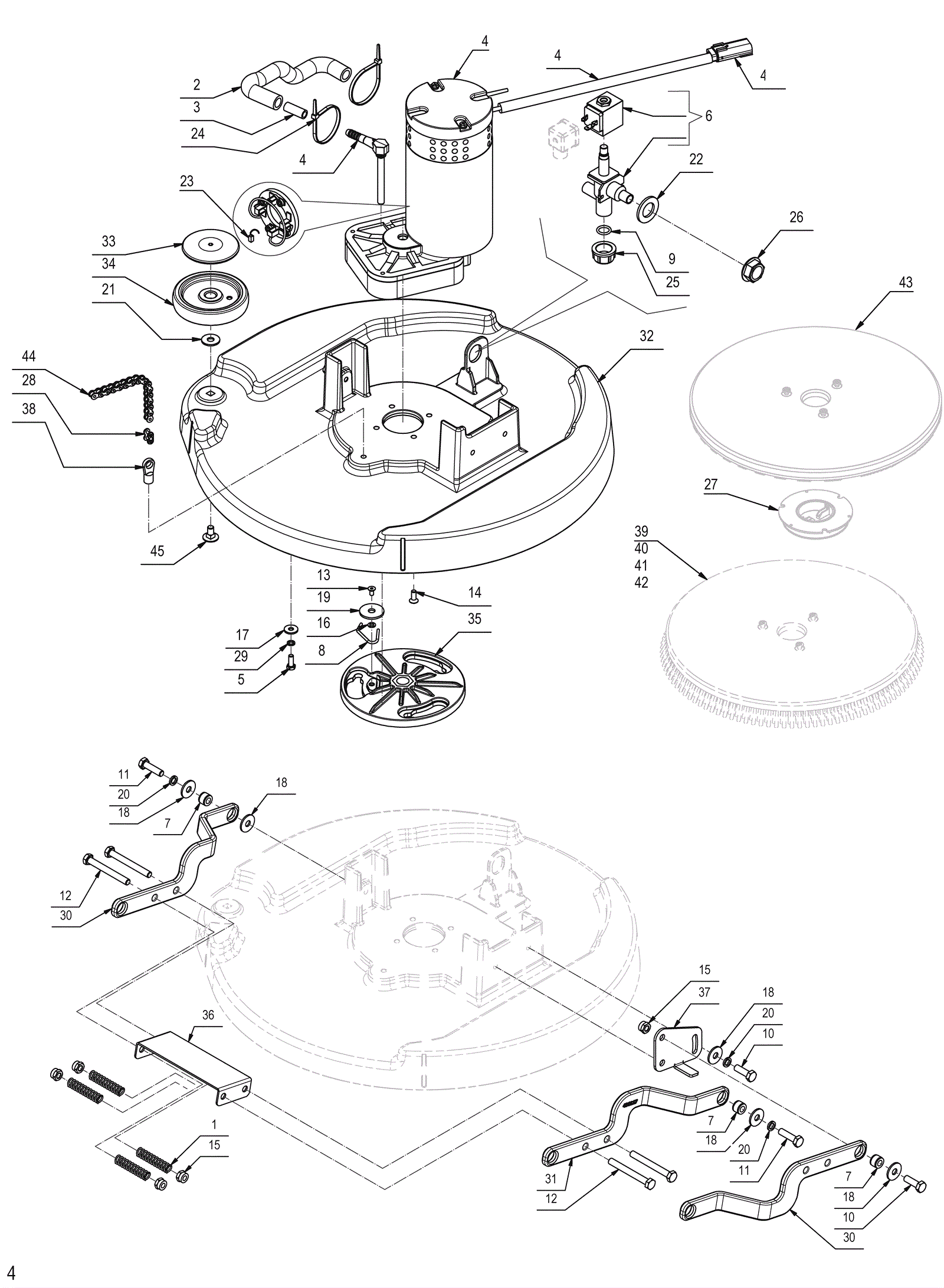

STEALTH DRS21BT Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-4442 Spring $9.65 4 usually ships 14-27 days
2 189-4443 PVC tubing $7.39 1 usually ships 14-27 days
3 189-4444 1 1/4 inch tube $10.03 1 usually ships 14-27 days
4a 189-6206 24V brush motor $1,197.52 1 ships same day
4b 189-4648 Cable sheath $9.71 1 usually ships 14-27 days
4c 189-6207 Fitting $5.50 1 usually ships 14-27 days
4d 189-4445 Female connector $169.62 1 usually ships 14-27 days
5 189-7621 Bolt M6 x 16mm stainless steel $2.38 1 usually ships 14-27 days
6a 189-7576 Solenoid valve $124.50 1 usually ships 14-27 days
6b 189-7627 Solenoid valve body $87.25 1 usually ships 14-27 days
6c 189-7626 Solenoid $102.22 1 usually ships 14-27 days
7 220-0375 Bushing (OBSOLETE) $5.08 3 usually ships 16-24 days
8 189-4446 Wire spring clip $5.50 1 usually ships 14-27 days
9 189-6380 O-ring $5.50 1 usually ships 14-27 days
10 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 2 ships same day
11 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
12 189-4447 Screw $4.71 4 usually ships 14-27 days
13 189-4448 Screw $12.84 1 usually ships 14-27 days
14 283-1699 SCREW M6X16 UNI5933 DIN7991 (10.9) Z $4.58 4 usually ships 26-37 days
15 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 5 usually ships 12-18 days
16 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
17 189-4450 Washer $12.84 1 usually ships 14-27 days
18 189-6198 Flat washer $2.38 5 usually ships 14-27 days
19 189-9071 Washer M9 flat zinc $12.84 1 usually ships 14-27 days
20 189-9084 Washer M8 lock zinc $2.18 3 usually ships 1-5 days
21 189-4451 Washer M9 $12.84 1 usually ships 14-27 days
22 189-4452 Washer $12.84 1 usually ships 14-27 days
23 189-2584 Carbon brush $43.20 4 usually ships 1-5 days
24 189-4453 Clamp $17.41 2 usually ships 14-27 days
25 189-6379 Cap $12.79 1 usually ships 14-27 days
26 189-4454 Ring nut $12.84 1 usually ships 14-27 days
27 189-8613 Center-Lok $29.70 1 usually ships 14-27 days
28 189-4455 Master chain link $11.13 1 usually ships 14-27 days
29 999-1117 Washer M6 split lock stainless steel $0.99 1 ships same day
30 189-4457 Right hand arm bracket $153.97 2 usually ships 14-27 days
31 189-4458 Left hand arm bracket $153.97 1 usually ships 14-27 days
32 189-4459 Brush base $1,045.28 1 usually ships 14-27 days
33 189-4460 Wheel cover $39.08 1 usually ships 14-27 days
34 189-4484 Bumper wheel $67.01 1 usually ships 14-27 days
35 189-4461 Flange $103.37 1 usually ships 14-27 days
36 189-4462 Support bracket $60.42 1 usually ships 14-27 days
37 189-4463 Plate $43.20 1 usually ships 14-27 days
38 189-4464 Coupling $39.95 1 usually ships 14-27 days
43 189-4469 22 inch pad driver $547.78 1 usually ships 14-27 days
44 189-5234 Chain $33.61 1 usually ships 14-27 days
45 189-4470 Screw M8 x 16mm $17.41 1 usually ships 14-27 days
