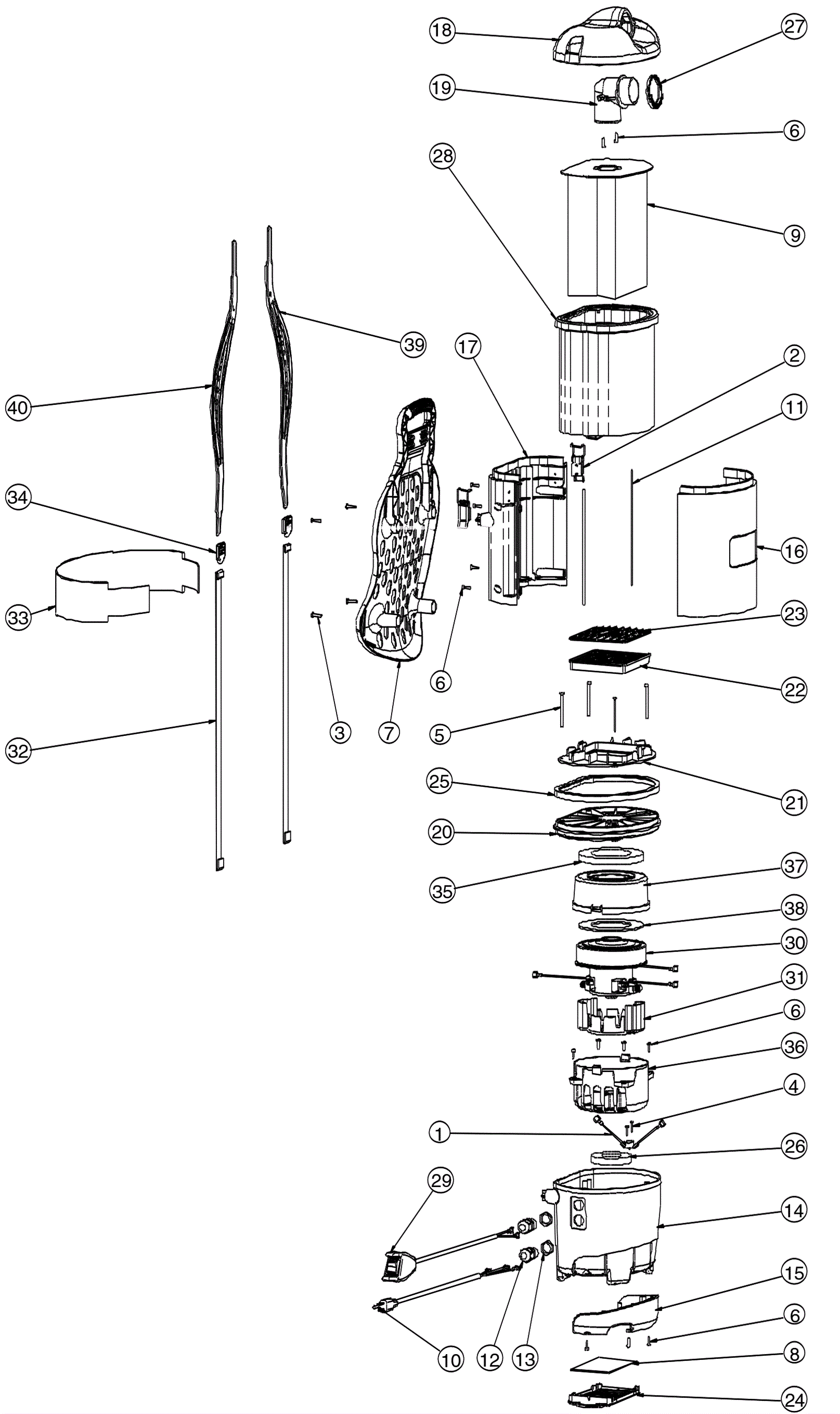

BAC PAC LITE Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-9981 Thermal protection switch $27.38 2 usually ships 11-24 days
2 189-9982 Latch $8.77 1 usually ships 11-24 days
3 189-9983 Screw #10 .750 type B pan head Call for price 4 usually ships 11-24 days
4 999-1602 Screw #6 x 3/8 pan head stainless steel $0.99 2 usually ships 1-5 days
5 189-9984 Screw #8-16 x 2 1/2 pan head screw $4.22 4 usually ships 11-24 days
6 189-9985 Screw #8 x 5/8 hi-lo pn head screw Call for price 14 usually ships 11-24 days
7 189-4416 Back rest $53.77 1 usually ships 11-24 days
8 189-9986 Post filter $7.60 1 usually ships 11-24 days
9 189-9987 Paper bag (pkg of 10) $19.05 1 usually ships 11-24 days
10 189-7558 Power harness $26.18 1 usually ships 11-24 days
11 189-9988 Bag compartment seal $2.16 2 usually ships 11-24 days
12 189-9990 Strain relief $12.78 2 usually ships 11-24 days
13 189-9989 Heyco fitting Call for price 2 usually ships 11-24 days
14 189-9991 Motor compartment $49.40 1 usually ships 11-24 days
15 189-9992 Bumper Call for price 1 usually ships 11-24 days
16 189-9993 Front plate $20.62 1 usually ships 11-24 days
17 189-9994 Back plate $28.27 1 usually ships 11-24 days
18 189-9995 Cover $39.92 1 usually ships 11-24 days
19 189-9996 Hose inlet $12.95 1 usually ships 11-24 days
20 189-9997 Motor cover $17.03 1 usually ships 11-24 days
21 189-9998 Secondary filter plate $10.98 1 usually ships 11-24 days
22 189-9999 Secondary filter frame $7.75 1 usually ships 11-24 days
23 289-0001 Secondary filter cap $2.16 1 usually ships 11-24 days
24 289-0002 Filter frame post $9.87 1 usually ships 11-24 days
25 289-0003 Body seal $10.98 1 usually ships 11-24 days
26 289-0004 Motor mount $35.65 1 usually ships 11-24 days
27 289-0005 Inlet seal $2.16 1 usually ships 11-24 days
28 190-0450 Cloth bag $18.99 1 ships same day
29 189-7559 Switch harness $25.10 1 ships same day
30 189-4417 Motor $141.80 1 usually ships 11-24 days
31 289-0006 Motor shroud $20.58 1 usually ships 11-24 days
32 189-4418 Harness strap $4.50 2 usually ships 11-24 days
33 289-0007 Back rest w/padded straps (new style) $133.53 1 usually ships 11-24 days
34 189-4419 Buckle (OBSOLETE) $5.17 2 usually ships 11-24 days
35 189-4421 Motor seal $34.12 1 usually ships 11-24 days
36 289-0008 Bottom motor shroud $15.58 1 usually ships 11-24 days
37 189-4420 Motor shroud $13.20 1 usually ships 11-24 days
38 189-4421 Motor seal $34.12 1 usually ships 11-24 days
39 189-4422 Right hand shoulder harness $19.52 1 usually ships 11-24 days
40 189-4423 Left hand shoulder harness $19.52 1 usually ships 11-24 days
N/S 289-0009 Crevice tool $9.88 1 usually ships 11-24 days
N/S 289-0010 Upholstery tool $31.12 1 usually ships 11-24 days
N/S 289-0011 Dust brush assembly $13.12 1 usually ships 11-24 days
N/S 289-0012 Carpet tool assembly $24.00 1 usually ships 11-24 days
N/S 189-7648 13 inch bare floor tool with bristles $39.95 1 ships same day
N/S 189-7609 Hose $60.87 1 usually ships 11-24 days
N/S 289-0013 Telescope wand $144.37 1 usually ships 11-24 days
N/S 228-2008 Electric cord $64.00 1 (OEM) usually ships 3-15 days
N/S 991-5002 16/3 extension cord 50 foot (yellow) $38.98 1 (NON-OEM) ships same day
