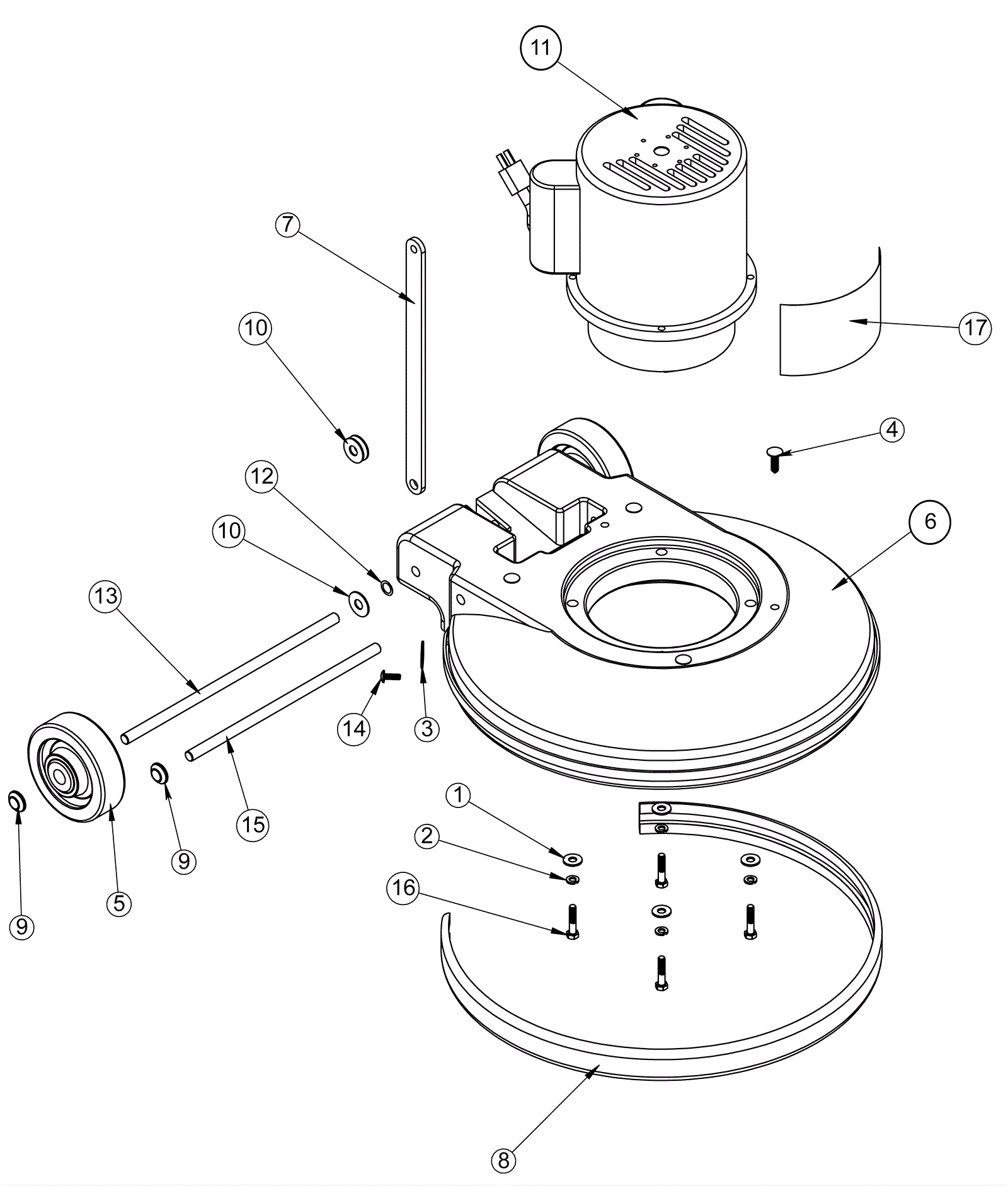

CREWMAN 20INCH Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 204-0077 Washer flat $2.16 4 usually ships 1-5 days
2 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
3 189-3142 Washer 1/4 fender zinc $2.16 2 usually ships 1-5 days
4 189-3181 Rivet $2.50 4 usually ships 1-5 days
5 189-3182 5 inch wheel $15.43 2 usually ships 11-24 days
6a 189-3183 20 inch base $144.97 1 (20 inch) usually ships 1-5 days
6b 189-3184 17 inch base $108.57 1 (17 inch) usually ships 1-5 days
7 189-3134 Handle bracket $14.82 1 usually ships 1-5 days
8 189-3140 Bumper $25.23 1 usually ships 1-5 days
9 189-3132 Axle cap $4.00 4 usually ships 6-11 days
10 189-3092 Washer 1/2 x 1 1/4 nylon $2.16 4 usually ships 11-24 days
11a 189-3185 1.5 HP motor $613.53 1 (single speed) usually ships 1-5 days
11b 189-3186 1.5 HP motor $875.92 1 (dual speed) usually ships 1-5 days
12 189-3131 Washer 1/2 spring $2.16 2 usually ships 11-24 days
13 189-3147 Axle $12.92 1 usually ships 11-24 days
14 189-3143 Screw 1/4-20 x 3/4 $2.16 2 usually ships 1-5 days
15 189-3136 Axle $12.95 1 usually ships 11-24 days
16 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 4 ships same day
17 189-3188 Betco decal $5.00 1 (Crewman only) usually ships 1-5 days
N/S 189-7645 20 inch stripping brush $526.98 1 usually ships 11-24 days
N/S 996-0739 Pad driver $154.80 1 usually ships 11-24 days
