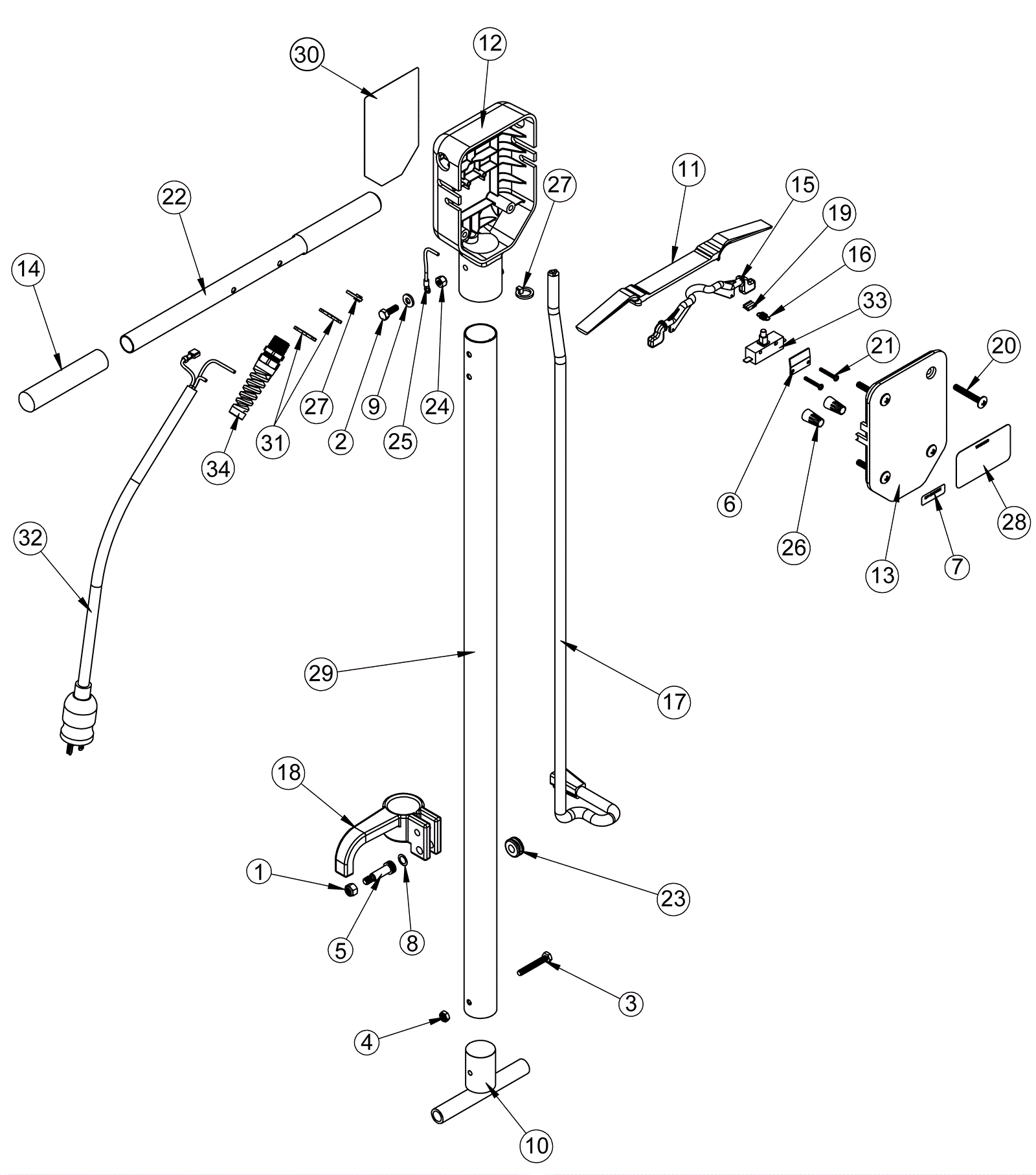

CREWMAN 20INCH Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
2 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 2 ships same day
3 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
4 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
5 189-3129 Bolt 3/8 x 1 shoulder $5.00 1 usually ships 11-24 days
6 189-3120 Switch plate $2.16 1 usually ships 11-24 days
7 189-3165 Serial number decal $2.16 1 usually ships 1-5 days
8 189-7557 Spring washer (OBSOLETE) $1.98 1 usually ships 11-24 days
9 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
10 189-9612 Handle socket $21.50 1 usually ships 11-24 days
11 189-3166 Trigger handle $5.00 1 usually ships 11-24 days
12 189-3119 Switch box $95.40 1 usually ships 1-5 days
14 189-8299 Handle grip $3.78 2 ships same day
15 189-3116 Safety lock $4.70 1 usually ships 11-24 days
16 189-3113 Spring $7.28 1 usually ships 11-24 days
17 189-3109 14/3 handle cord $38.15 1 usually ships 11-24 days
18 189-3123 Cord hook $26.85 1 usually ships 11-24 days
19 189-3114 Spring clip $2.16 1 usually ships 11-24 days
20 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel $1.21 4 ships same day
21 189-3112 Screw #6 x 1 phillips $2.16 2 usually ships 11-24 days
22 189-3121 Handle tube $8.65 1 usually ships 1-5 days
23 189-3122 Grommet $2.44 1 usually ships 11-24 days
24 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
25 189-3168 Ground wire (green) $4.66 1 usually ships 1-5 days
26 189-3169 Wire nut (yellow) $2.16 2 usually ships 1-5 days
27 189-3108 Cable tie $2.16 2 usually ships 1-5 days
28 189-3170 Warning decal $2.32 1 usually ships 1-5 days
30 189-3171 Crewman 20HD decal $23.22 1 usually ships 1-5 days
31 189-7556 Strain relief nut $4.32 2 usually ships 11-24 days
32 189-3172 14/3 power cord 50 foot (yellow) $101.40 1 usually ships 11-24 days
33 189-3115 Switch $17.70 1 usually ships 11-24 days
34 189-8589 Strain relief $32.00 1 usually ships 11-24 days
N/S 189-7660 Safety spring $5.48 1 usually ships 11-24 days
