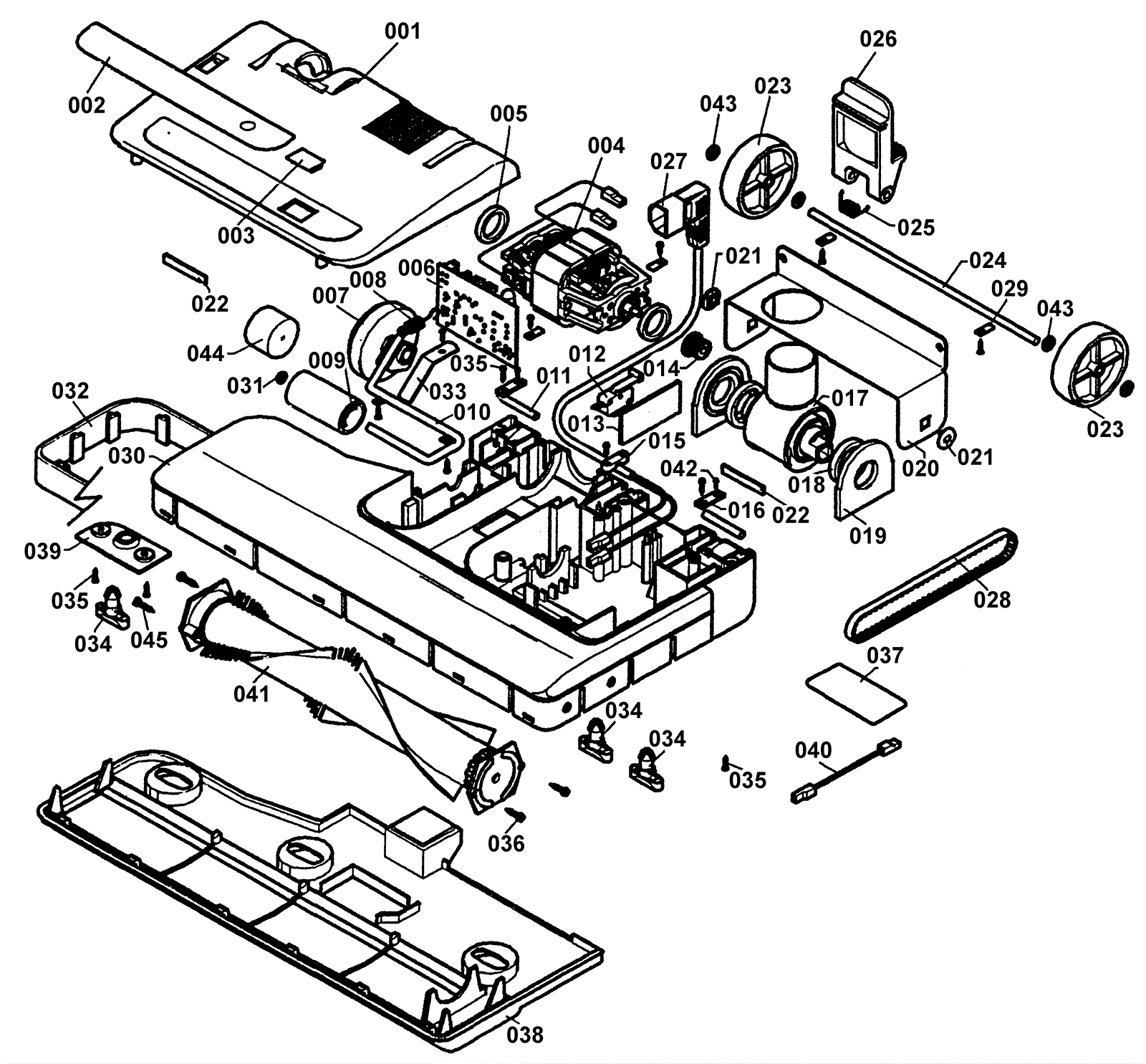

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-6134
|
Power brush top molding |
1 |
|
|
002 |
189-6167
|
Top cover 18 label |
1 |
|
|
003 |
189-6136
|
Clip in lens |
1 |
|
|
004 |
239-0717
|
Brush motor |
1 |
|
|
005 |
189-6002
|
Motor support rings |
2 |
|
|
006 |
189-6137
|
Circuit board 110v |
1 |
|
|
007 |
189-6138
|
Height adjustment knob |
1 |
|
|
008 |
189-6139
|
Roller adjustment spring |
1 |
|
|
009 |
189-6140
|
Floor roller (OBSOLETE) |
1 |
|
|
010 |
189-6141
|
Roller axle (OBSOLETE) |
1 |
|
|
011 |
189-6142
|
Pivot pin |
2 |
|
|
012 |
189-6143
|
Microswitch |
1 |
|
|
013 |
189-6144
|
Switch plate |
1 |
|
|
014 |
189-6145
|
Cogged drive |
1 |
|
|
015 |
189-6146
|
Cable grip |
1 |
|
|
016 |
189-6147
|
Clamp plate |
2 |
|
|
017 |
189-6148
|
Trunnion |
1 |
|
|
018 |
189-6149
|
Trunnion side felt |
2 |
|
|
019 |
189-6150
|
Trunnion side plate |
2 |
|
|
020 |
189-6151
|
Press steel bracket |
1 |
|
|
021 |
189-6152
|
Square bushing |
2 |
|
|
022 |
189-6153
|
Felt seal |
2 |
|
|
023 |
189-6154
|
Wheel |
2 |
|
|
024 |
189-6155
|
Wheel axle |
1 |
|
|
025 |
189-6156
|
Park release spring |
1 |
|
|
026 |
189-6157
|
Foot pedal |
1 |
|
|
027 |
189-6158
|
Input power cord |
1 |
|
|
028 |
189-6075
|
Drive belt |
1 |
|
|
029 |
189-6159
|
Clamp washer |
5 |
|
|
030 |
189-6175
|
Power brush middle molding long |
1 |
|
|
031 |
189-6161
|
Starlock cap 6mm |
1 |
|
|
032 |
189-6176
|
Long buffer |
1 |
|
|
033 |
189-6163
|
Motor fixing bracket |
1 |
|
|
034 |
189-6164
|
Turnbutton |
3 |
|
|
035 |
189-6123
|
Screw 4 x 20 mm pan head spax |
15 |
|
|
036 |
189-6166
|
Screw 4x11mm spax cs |
2 |
|
|
037 |
N/A
|
Not available |
1 |
(not available) (Rating label) |
|
038 |
189-6177
|
470 Bottom floor plate |
1 |
|
|
039 |
189-6178
|
Turnbutton mounting plate |
1 |
|
|
040 |
189-6169
|
Inter cable |
1 |
|
|
041 |
189-6179
|
470 Brush roll complete |
1 |
|
|
042 |
189-6171
|
Screw 4mm x 12mm |
2 |
|
|
043 |
999-1261
|
Washer M6 flat stainless steel |
4 |
|
|
044 |
189-6173
|
Foam ring seal |
1 |
|
|
045 |
189-6174
|
Screw 4 x 18mm cap |
2 |
|
|
N/S |
189-2501
|
Rubber end cap |
2 |
(On older models ONLY) |
|
