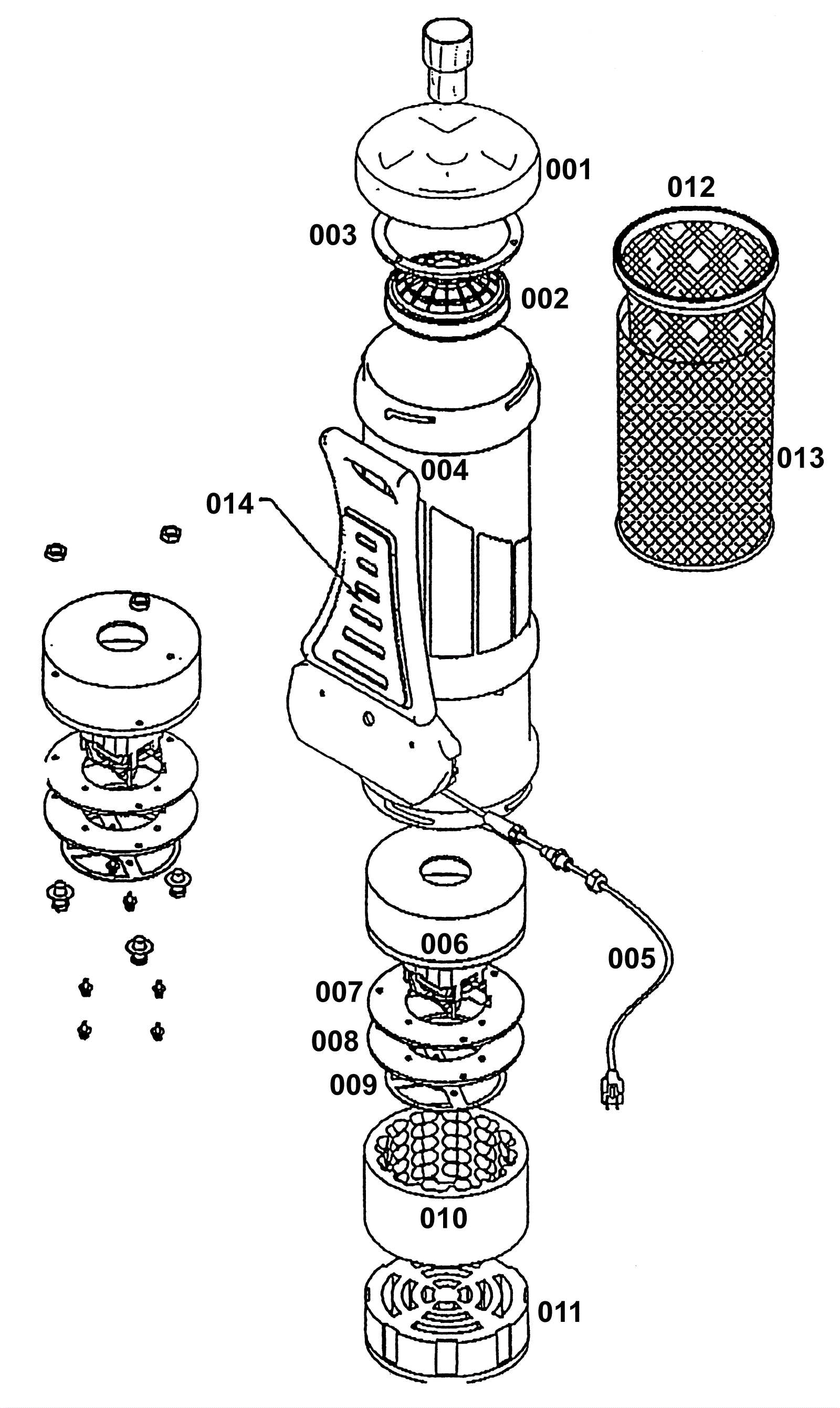

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-6056
|
Threaded Cap |
|
|
|
002a |
189-6057
|
Vacuum Motor Dome |
|
|
|
002b |
189-6058
|
Hepa dome filter |
|
|
|
003 |
189-6059
|
Motor mounting ring |
|
|
|
004 |
189-6060
|
Egronomic Vacuum body |
|
|
|
005a |
189-6061
|
18 inch electric cord |
|
|
|
005b |
189-6062
|
Pigtail and nut |
|
|
|
006 |
189-6064
|
Vacuum motor |
|
|
|
006a |
189-1330
|
Motor bolts |
|
|
|
006b |
189-1331
|
Washers |
|
|
|
006c |
189-1332
|
Nut nylon lock |
|
|
|
007 |
189-6063
|
Vacuum gasket |
|
|
|
008 |
189-6076
|
Vacuum motor mounting plate |
|
|
|
008a |
189-1333
|
Screw 3/4 self-tapping |
|
|
|
009 |
189-6066
|
Dual cell deflector plate |
|
|
|
009a |
189-1334
|
Screw 1/2 self-tapping |
|
|
|
010 |
189-6067
|
Sound absorbing foam |
|
|
|
011 |
228-7020
|
Noise filter |
|
|
|
012 |
173-4771
|
Paper filter bag (pkg of 10) (VP10) |
|
|
|
013 |
189-1336
|
Cloth filter bag with rubber gasket |
|
|
|
014 |
189-6069
|
Cushioned back pad |
|
|
|
N/S |
189-6073
|
Ring terminal |
|
|
|
N/S |
189-1337
|
Belt allen screws |
|
(for use with the belt) |
|
N/S |
189-6054
|
5 inch smooth bore hose |
|
|
|
N/S |
189-1338
|
Belt washers |
|
(for use with the belt) |
|
N/S |
189-6074
|
Switch on and off |
|
|
|
N/S |
189-6071
|
Spade female insulated |
|
|
|
N/S |
173-4771
|
Paper filter bag (pkg of 10) (VP10) |
|
|
|
N/S |
228-2008
|
Electric cord |
|
|
|
N/S |
189-6072
|
Spade terminal insulated |
|
|
|
N/S |
189-6051
|
Bac pac with 5 inch hose |
|
|
|
N/S |
189-6070
|
Belt and sholder harness |
|
|
|
N/S |
189-6014
|
Dry tool kit |
|
|
|
