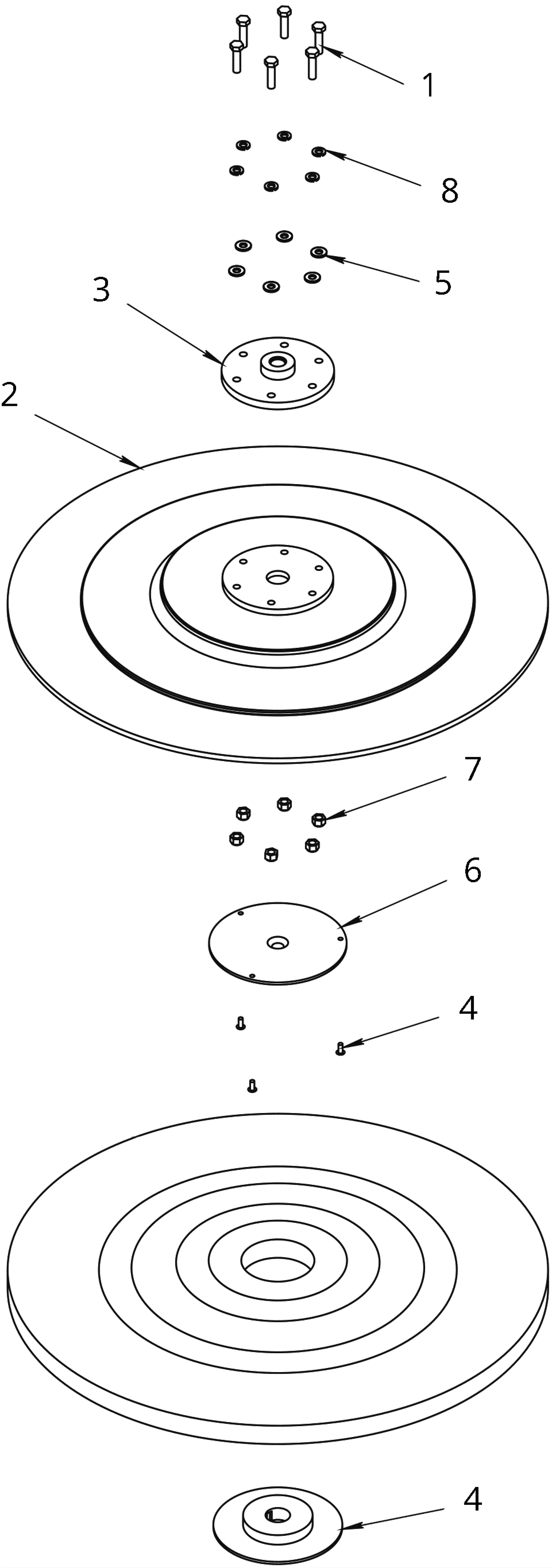

Pad Drive Assembly

#PartDescription ReqNotesAvailability
1 999-0829 Screw 5/16-18 x 1 1/4 hex head plain finish 6
2a 189-1274 21 inch flex loc pad driver 1
2b 204-0161 27 inch Flex-Lok assembly 1
3 189-9011 Shaft plate 3/4 inch 1
4 189-0798 Blind rivet 3
5 999-1964 Washer 5/16 SAE flat zinc 6
6 991-2201 Center-Lok II pad holder - right hand thread (black) 2
7 999-0423 Nut 5/16-18 nylon insert lock stainless steel 6
8 999-0028 Washer 5/16 split lock plain finish 6
N/S 189-8073 21 inch pad driver assembly flex without pad 1
N/S 189-1275 27 inch flex loc pad drive assembly without pad 1
