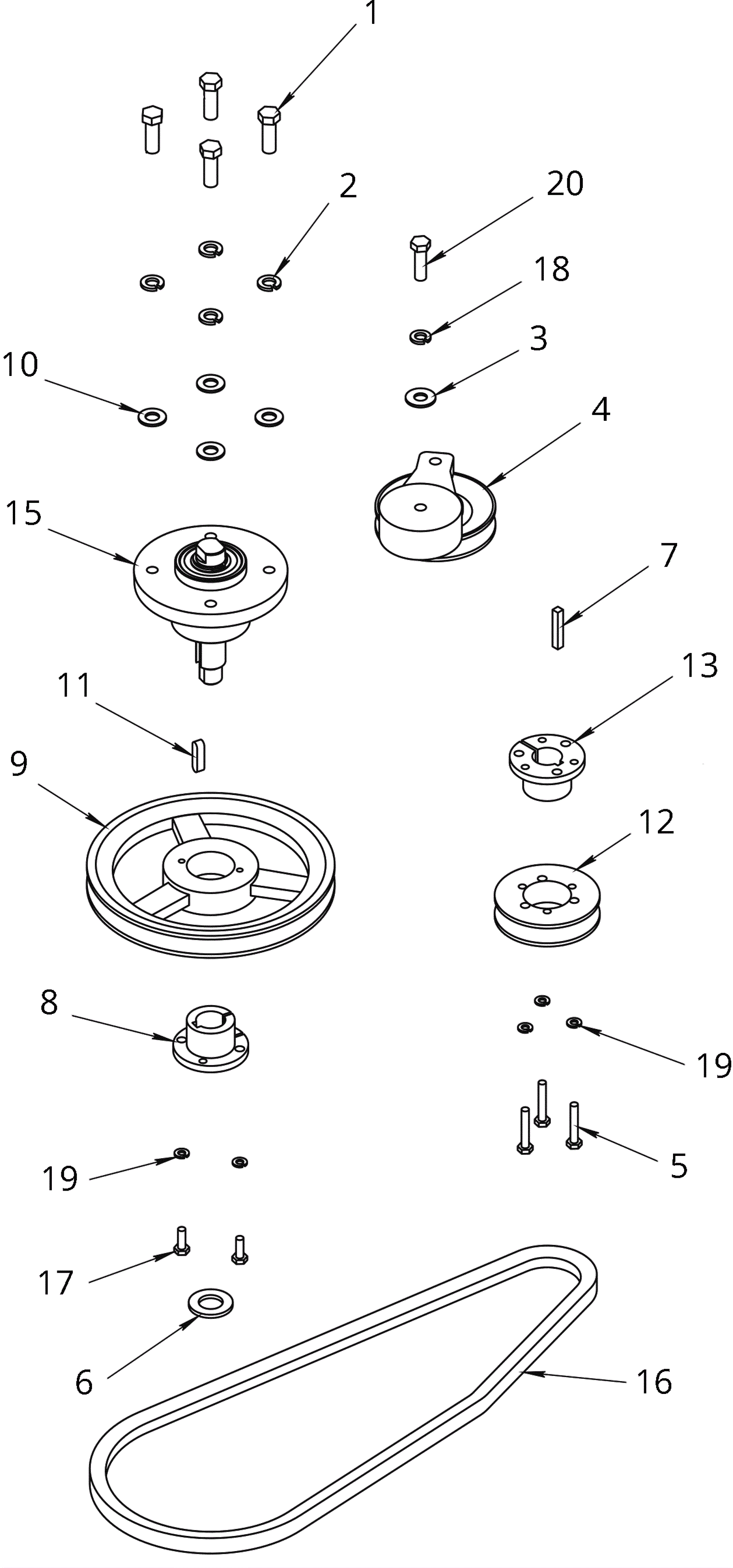

OPTIMA XR Belt Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 204-0071 Bolt $2.38 4 usually ships 11-24 days
2 204-0070 Washer lock $2.38 4 usually ships 11-24 days
4 204-0017 Small belt tensioner $223.69 1 usually ships 11-24 days
5 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated $0.99 3 ships same day
6 999-0630 Washer 3/4 SAE flat $0.99 1 ships same day
7 189-8755 Square keyway $4.38 1 usually ships 1-5 days
8 189-8066 Bushing $15.43 1 usually ships 11-24 days
9a 189-1270 Pulley $39.27 1 (21 inch) usually ships 11-24 days
9b 189-8071 7.5 inch pulley $53.63 1 (27 inch) usually ships 1-5 days
10 999-0328 Washer 7/16 USS flat $0.99 4 ships same day
11 204-0019 Key Stock $5.00 1 usually ships 1-5 days
12 189-3088 Engine pulley $40.51 1 usually ships 1-5 days
13 189-0795 Bushing $25.27 1 usually ships 11-24 days
15 204-0015 Pad driver (OBSOLETE) $98.64 1 usually ships 11-24 days
16a 189-1272 Belt BX39 $27.15 1 (21 inch) usually ships 11-24 days
16b 189-1273 Belt BX47 $32.36 1 (27 inch) usually ships 11-24 days
17 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 2 ships same day
18 999-0034 Washer 3/8 split lock plain finish $1.82 1 ships same day
19 999-1049 Washer 1/4 split lock zinc plated $0.99 5 ships same day
20 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
N/S 999-0120 Washer 3/8 SAE flat $0.99 1 (place between 15 and aluminum deck at 204-0071) ships same day
N/S 189-1271 Slotted shim $7.02 1 (place between 15 and aluminum deck at 204-0071) usually ships 11-24 days
