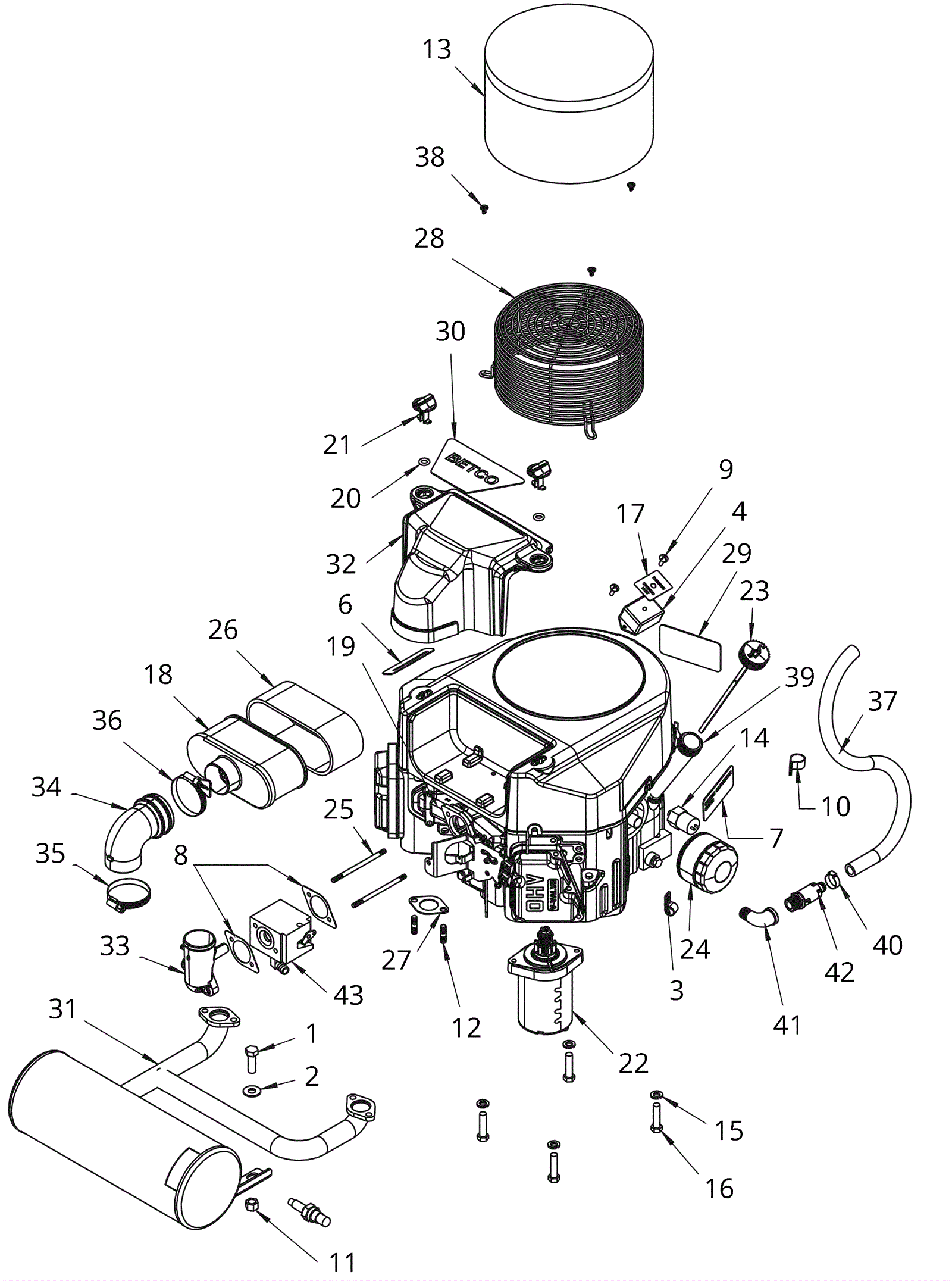

OPTIMA XR Kawasaki Engine Assembly

#PartDescriptionPriceReqNotesAvailability
1 204-0071 Bolt $2.38 1 usually ships 11-24 days
2 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
3 189-8452 J clip stamped hook $3.39 1 ships same day
4 189-8544 Emissions shutdown module with oxygen sensor $270.18 1 ships same day
6 189-5154 Clutch decal $15.18 1 usually ships 1-5 days
7 189-5150 Oil pressure switch decal $3.67 1 usually ships 1-5 days
8 178-0042 Carb intake gasket $1.63 2 ships same day
9 189-0392 Screw #10 x 5/8 pan head phillips $2.38 2 usually ships 1-5 days
10 273-5693 Hose clamp $2.84 1 ships same day
11 189-5147 Nut $2.38 1 usually ships 1-5 days
12 178-0036 Exhaust stud bolt $1.58 4 ships same day
13 204-0162 Dust bonnet $61.14 1 usually ships 11-24 days
14 189-8542 Oil pressure switch with 2 prongs $151.49 1 usually ships 11-24 days
15 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
16 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel $1.72 4 ships same day
17 189-5152 Propane emission decal $9.10 1 usually ships 11-24 days
18 178-0256 Air filter $21.38 1 ships same day
19 178-0280 Intake manifold $138.71 1 usually ships 3-11 days
20 178-0278 O-ring $1.47 2 usually ships 3-11 days
21 178-0277 Thumb nut $1.98 2 usually ships 11-24 days
22 178-7106 Electric starter $238.27 1 usually ships 3-11 days
23 189-3090 Oil dipstick $16.94 1 ships same day
24 178-0254 Oil filter $17.88 1 ships same day
25 178-0284 Stud bolt $3.64 2 usually ships 1-5 days
26 178-0255 Air pre-filter $6.29 1 ships same day
27 178-0257 Gasket $2.17 2 ships same day
28 189-5144 Air intake guard $70.20 1 usually ships 1-5 days
29 189-5151 Emission decal $2.90 1 usually ships 1-5 days
30 189-5145 Betco decal $3.28 1 usually ships 1-5 days
31 189-3087 Catalytic muffler and manifold assembly $906.59 1 usually ships 11-24 days
32 178-0279 Air filter case $33.37 1 ships same day
33 189-5157 Intake pipe $19.03 1 usually ships 11-24 days
34 178-0282 Hose $15.52 1 usually ships 3-11 days
35 178-0283 Hose clamp $8.69 1 usually ships 1-5 days
36 178-0281 Hose clamp $4.91 1 usually ships 3-11 days
37 189-0394 Fuel hose $8.25 1 usually ships 11-24 days
38 189-5143 Screw $3.92 3 usually ships 1-5 days
39 189-1253 Oil fill tube Call for price 1 usually ships 11-24 days
40 189-1254 1/2 inch clamp $2.62 1 usually ships 11-24 days
41 189-1255 3/8 inch elbow fitting $29.32 1 usually ships 11-24 days
42 189-1256 Oil drain valve $35.53 1 usually ships 11-24 days
43 189-1257 Carburetor Call for price 1 usually ships 11-24 days
N/S 189-8544 Emissions shutdown module with oxygen sensor $270.18 1 ships same day
N/S 189-5153 M-18 steel plug $9.13 1 usually ships 11-24 days
N/S 178-0032 Valve stem seal $8.53 4 usually ships 3-11 days
N/S 178-0043 Top oil seal (upper crankshaft - Kawasaki) $2.79 1 ships same day
N/S 154-0042 Oil drain valve kit $12.72 1 ships same day
N/S 166-0008 Spark plug (Kawasaki FS481V) $5.99 2 ships same day
N/S 178-0264 Ignition coil assembly Kawasaki FS481V $104.92 2 ships same day
N/S 178-0261 Cylinder head gasket (FS481V engine only) $27.39 2 ships same day
N/S 189-7667 FS481V cylinder head #1 assembly $297.79 1 usually ships 11-24 days
N/S 189-7647 FS481V cylinder head #2 assembly $350.87 1 usually ships 11-24 days
N/S 178-0262 Rocker case gasket $5.50 2 ships same day
N/S 178-0270 Intake valve $14.45 2 ships same day
N/S 178-0269 Exhaust valve $24.51 2 ships same day
N/S 178-0016 O-ring $1.47 1 ships same day
N/S 178-0265 Voltage regulator $56.23 1 ships same day
N/S 189-1258 Kawasaki engine with emissions $3,063.14 1 usually ships 11-24 days
N/S 189-1259 Kawasaki engine $2,791.71 1 usually ships 11-24 days
