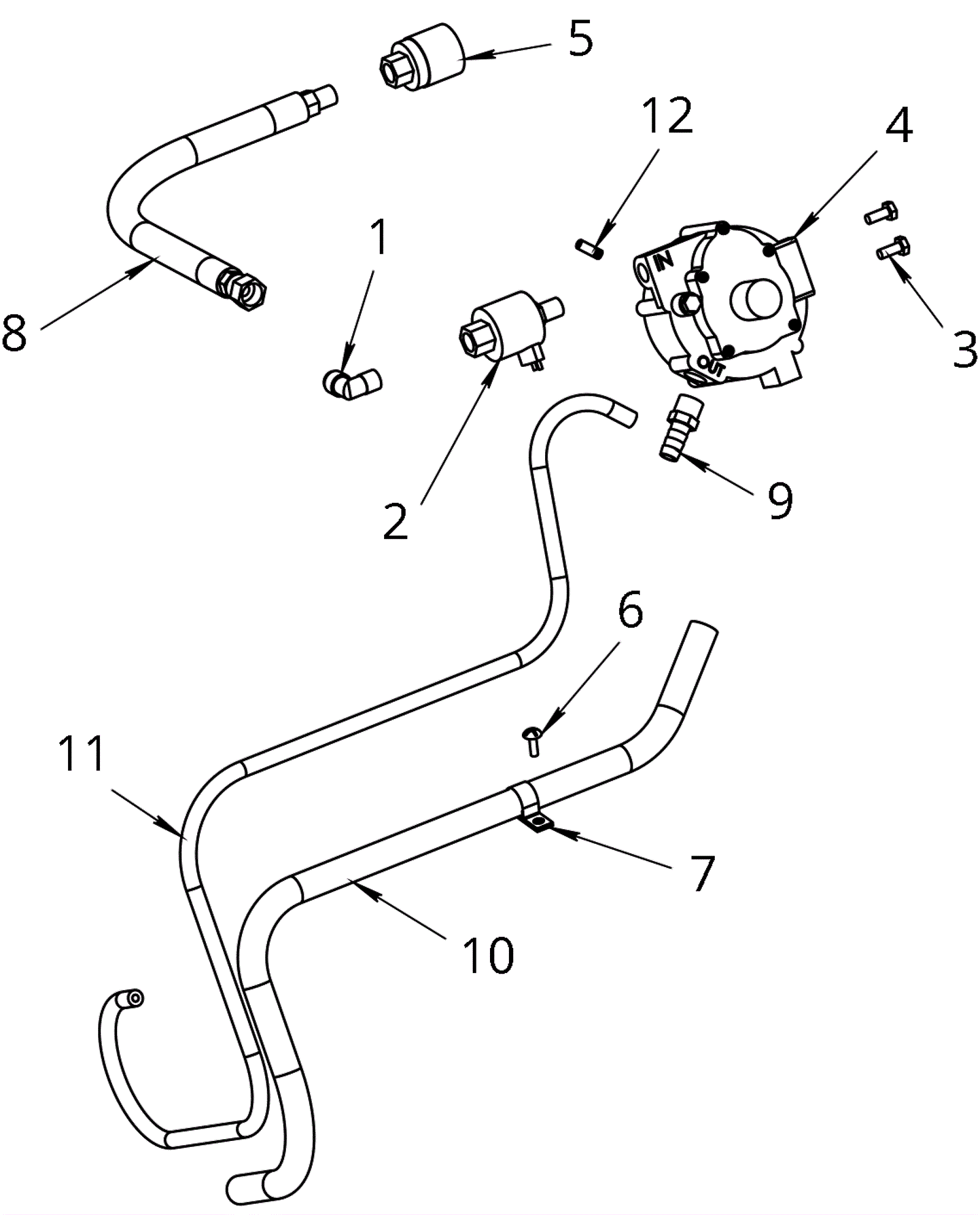

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-0390
|
90 degree elbow fitting |
1 |
|
|
2a |
991-6002
|
12V fuel lock off (Model 152) |
1 |
(with emissions) |
|
2b |
189-5642
|
12V fuel lock off |
1 |
|
|
3 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
2 |
|
|
4 |
189-6194
|
Fuel regulator (Model 60E) |
1 |
|
|
5 |
204-0110
|
Tank coupling |
1 |
|
|
6 |
189-0392
|
Screw #10 x 5/8 pan head phillips |
1 |
|
|
7 |
273-5693
|
Hose clamp |
1 |
|
|
8 |
204-0032
|
Hose |
1 |
|
|
9 |
189-0393
|
Fitting 3/8 MNPT x 1/2 barb |
1 |
|
|
10 |
189-0394
|
Fuel hose |
1 |
|
|
11 |
189-0395
|
Vacuum hose (Sold by foot) |
1 |
|
|
12 |
189-0396
|
Fitting 1/4-28 brass |
1 |
|
|
