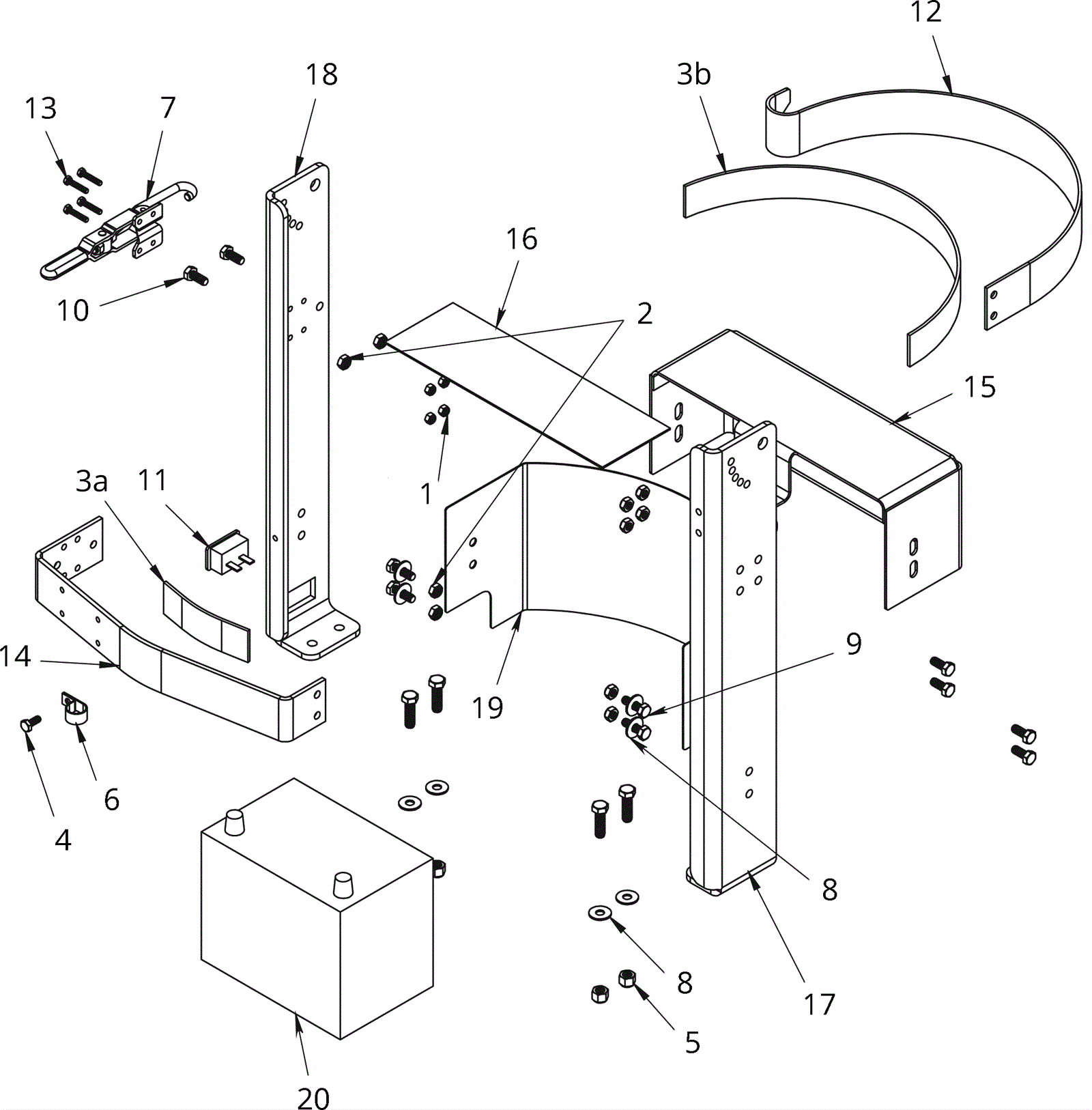

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
204-0062
|
Nut |
4 |
|
|
2 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
10 |
|
|
3a |
189-5162
|
Felt (sold by the foot) |
4 inches |
|
|
3b |
189-5162
|
Felt (sold by the foot) |
13 inches |
|
|
4 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
1 |
|
|
5 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
4 |
|
|
6 |
273-5693
|
Hose clamp |
1 |
|
|
7 |
189-3085
|
Tank strap latch |
1 |
|
|
8 |
204-0077
|
Washer flat |
8 |
|
|
9 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
|
10 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
6 |
|
|
11 |
189-3086
|
Hour meter |
1 |
|
|
12 |
189-3084
|
Tank strap |
1 |
|
|
13 |
189-3093
|
Screw 10-32 x 1 hex head zinc |
4 |
|
|
14 |
189-0389
|
Front propane tank strap |
1 |
|
|
15 |
189-9964
|
Battery clamp and propane support |
1 |
|
|
16 |
189-8798
|
Rubber propane tank shelf pad |
1 |
|
|
17 |
189-9965
|
Left lower handle leg |
1 |
|
|
18 |
189-9966
|
Right lower handle leg |
1 |
|
|
19 |
189-9967
|
Battery cover |
1 |
|
|
20 |
162-0001
|
12V 35Ah AGM battery |
1 |
|
|
N/S |
999-0039
|
Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
|
