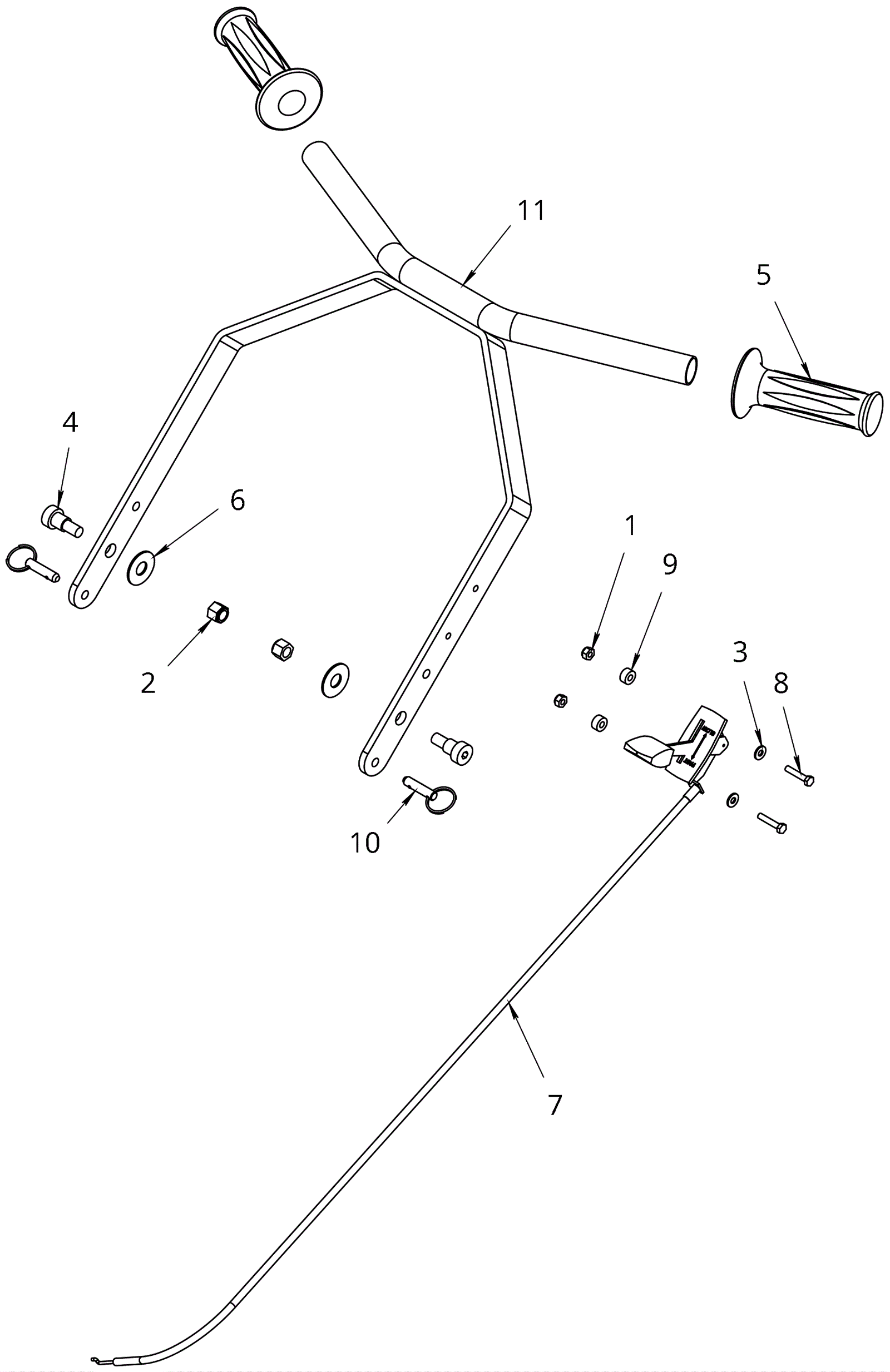

OPTIMA XR Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 204-0062 Nut $2.38 2 ships same day
2 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
3 189-0382 Washer #10 SAE flat zinc $2.38 2 ships same day
4 189-3091 Screw 1/2 x 1/2 shoulder socket head $8.01 2 usually ships 11-24 days
5 189-3083 Hand grip $6.27 2 usually ships 11-24 days
6 189-3092 Washer 1/2 x 1 1/4 nylon $2.38 2 usually ships 11-24 days
7 189-3082 38 inch throttle cable $34.60 1 usually ships 11-24 days
8 189-3093 Screw 10-32 x 1 hex head zinc $2.38 2 usually ships 11-24 days
9 189-3094 Nylon spacer $2.38 2 usually ships 11-24 days
10 189-3095 Retaining pin with ring $7.56 2 usually ships 11-24 days
11 189-3096 Handle bar weldment $97.65 1 usually ships 11-24 days
